In this tutorial, you will learn two methods to incorporate data augmentation into your tf.data
pipeline using Keras and TensorFlow.
A good dataset of images is vital when working with data augmentation in TensorFlow. It enables us to see how augmenting the data can increase the diversity of the training set and improve model performance.
Roboflow has free tools for each stage of the computer vision pipeline that will streamline your workflows and supercharge your productivity.
Sign up or Log in to your Roboflow account to access state of the art dataset libaries and revolutionize your computer vision pipeline.
You can start by choosing your own datasets or using our PyimageSearch’s assorted library of useful datasets.
Bring data in any of 40+ formats to Roboflow, train using any state-of-the-art model architectures, deploy across multiple platforms (API, NVIDIA, browser, iOS, etc), and connect to applications or 3rd party tools.
This tutorial is part in our three part series on the tf.data
module:
- A gentle introduction to tf.data
- Data pipelines with tf.data and TensorFlow
- Data augmentation with tf.data (today’s tutorial)
Throughout this series we’ve discovered how fast and efficient the tf.data
module is for building data processing pipelines. Once built, these pipelines can train your neural networks significantly faster than using standard methods.
However, one question we haven’t discussed is:
How can we apply data augmentation inside a tf.data pipeline?
Data augmentation is a critical aspect of training neural networks that are to be deployed in real-world scenarios. By applying data augmentation we can increase the ability of our model to generalize and make better, more accurate predictions on data it was not trained on.
TensorFlow provides us with two methods we can use to apply data augmentation to our tf.data
pipelines:
- Use the
Sequential
class and thepreprocessing
module to build a series of data augmentation operations, similar to Keras’ImageDataGenerator
class - Apply
tf.image
functions to manually create the data augmentation routine
The first method is much easier and requires less effort. The second method is slightly more complex (typically because you need to read the TensorFlow documentation to find the exact functions you need), but allows for more fine-grained control over the data augmentation process.
Inside this tutorial, you’ll learn how to use both data augmentation procedures with tf.data
.
To learn how to perform data augmentation with tf.data
, just keep reading.
Looking for the source code to this post?
Jump Right To The Downloads SectionData augmentation with tf.data and TensorFlow
In the first part of this tutorial, we’ll break down the two methods you can use for data augmentation with the tf.data
processing pipeline.
From there, we’ll configure our development environment and review our project directory structure.
We’ll review two Python scripts today:
- The first script will show you how to apply data augmentation using layers while the other will demonstrate data augmentation using TensorFlow operations
- Our second script will train a deep neural network using data augmentation and the
tf.data
pipeline
We’ll wrap up this tutorial with a discussion of our results.
Two methods to perform data augmentation with tf.data and TensorFlow
This section covers the two methods used to apply image data augmentation using TensorFlow and the tf.data
module.

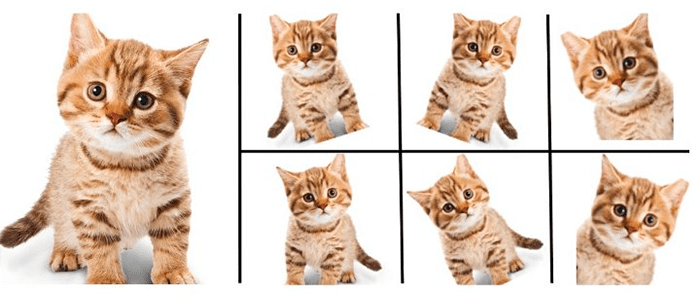

Data augmentation using the layers and the “Sequential” class
Incorporating data augmentation into a tf.data
pipeline is most easily achieved by using TensorFlow’s preprocessing
module and the Sequential
class.
We typically call this method “layers data augmentation” due to the fact that the Sequential
class we use for data augmentation is the same class we use for implementing sequential neural networks (e.g., LeNet, VGGNet, AlexNet).
This method is best explained via code:
trainAug = Sequential([ preprocessing.Rescaling(scale=1.0 / 255), preprocessing.RandomFlip("horizontal_and_vertical"), preprocessing.RandomZoom( height_factor=(-0.05, -0.15), width_factor=(-0.05, -0.15)), preprocessing.RandomRotation(0.3) ])
Here, you can see that we are constructing a series of data augmentation operations, including:
- Random horizontal and vertical flips
- Random zooming
- Random rotation
We can then incorporate data augmentation into our tf.data
pipeline via the following:
trainDS = tf.data.Dataset.from_tensor_slices((trainX, trainLabels)) trainDS = ( trainDS .shuffle(BATCH_SIZE * 100) .batch(BATCH_SIZE) .map(lambda x, y: (trainAug(x), y), num_parallel_calls=tf.data.AUTOTUNE) .prefetch(tf.data.AUTOTUNE) )
Notice how we use the map
function to call our trainAug
pipeline on each and every input image.
I really like this method when applying data augmentation with tf.data
. It’s very easy to use, and deep learning practitioners coming from Keras will enjoy how similar it is to Keras’ ImageDataGenerator
class.
Additionally, these layers can also operate inside a model architecture itself. If you’re utilizing a GPU, that means the GPU can apply data augmentation rather than your CPU! Note that this is not the case when building data augmentation using native TensorFlow operations which will only run on your CPU.
Data augmentation using TensorFlow operations
The second method we can use to apply data augmentation to tf.data
pipelines is to apply TensorFlow operations, including both:
- Image processing functions built into the TensorFlow library inside the
tf.image
module - Any custom operations you want to implement yourself (using libraries such as OpenCV, scikit-image, PIL/Pillow, etc.)
This method is a bit more complex because it requires you to implement the data augmentation pipeline by hand (versus using the classes inside the preprocessing
module), but the benefit is that you gain more fine-grained control (and of course you can implement any custom operation you wish).
To apply data augmentation using TensorFlow operations, we first need to define a function that accepts an input image and then applies our operations:
def augment_using_ops(images, labels): images = tf.image.random_flip_left_right(images) images = tf.image.random_flip_up_down(images) images = tf.image.rot90(images) return (images, labels)
Here, you can see that we are:
- Randomly flipping our image horizontally
- Randomly flipping the image vertically
- Applying a random 90 degree rotation
The augmented image is then returned to the calling function.
We can incorporate this data augmentation routine into our tf.data
pipeline like so:
ds = tf.data.Dataset.from_tensor_slices(imagePaths) ds = (ds .shuffle(len(imagePaths), seed=42) .map(load_images, num_parallel_calls=AUTOTUNE) .cache() .batch(BATCH_SIZE) .map(augment_using_ops, num_parallel_calls=AUTOTUNE) .prefetch(tf.data.AUTOTUNE) )

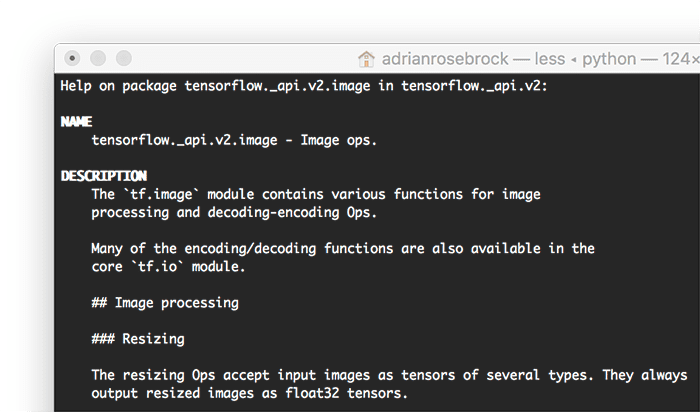

As you can see, this data augmentation method requires that you have a more intimate understanding of the TensorFlow documentation, specifically the tf.image
module, as that is where TensorFlow implements its image processing functions.
Which data augmentation method do I use with tf.data?
For most deep learning practitioners, applying data augmentation using layers and the Sequential
class will be more than sufficient.
TensorFlow’s preprocessing
module implements the vast majority of data augmentation operations you’ll need on a day-to-day basis.
Furthermore, the Sequential
class combined with the preprocessing
module is simply easier to use — deep learning practitioners familiar with Keras’ ImageDataGenerator
will feel right at home using this method.
That said, if you want more nuanced control over your data augmentation pipeline, or if you need to implement custom data augmentation procedures, you should instead apply data augmentation using the TensorFlow operations method.
This method does require a bit more code and knowledge of the TensorFlow documentation (specifically the functions inside tf.image
), but if you need fine-grained control over your data augmentation procedure, you just can’t beat this method.
Configuring your development environment
This tutorial on data augmentation with tf.keras utilizes Keras and TensorFlow. If you intend to follow this tutorial, I suggest you take the time to configure your deep learning development environment.
You can utilize either of these two guides to install TensorFlow and Keras on your system:
Either tutorial will help configure your system with all the necessary software for this blog post in a convenient Python virtual environment.
Having problems configuring your development environment?
All that said, are you:
- Short on time?
- Learning on your employer’s administratively locked system?
- Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
- Ready to run the code right now on your Windows, macOS, or Linux system?
Then join PyImageSearch University today!
Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.
And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!
Our example dataset
Images inside the Animals dataset belong to three distinct classes: dogs, cats, and pandas as you can see in Figure 4, with 1,000 example images per class.
The dog and cat images were sampled from the Kaggle Dogs vs. Cats challenge, while the panda images were sampled from the ImageNet dataset.
Our goal is to train a Convolutional Neural Network that can correctly recognize each of these species.
Note: For more examples using the Animals dataset, refer to my k-NN tutorial and my Introduction to Keras tutorial.
Project structure
Before we can apply data augmentation with tf.data
, let’s first inspect our project directory structure.
Start by accessing the “Downloads” section of this tutorial to retrieve our Python scripts and example dataset:
$ tree . --dirsfirst --filelimit 10 . ├── dataset │ └── animals │ ├── cats [1000 entries exceeds filelimit, not opening dir] │ ├── dogs [1000 entries exceeds filelimit, not opening dir] │ └── panda [1000 entries exceeds filelimit, not opening dir] ├── data_aug_layers.png ├── data_aug_ops.png ├── load_and_visualize.py ├── no_data_aug.png ├── train_with_sequential_aug.py └── training_plot.png 5 directories, 6 files
Inside the dataset/animals
directory we have the example image dataset that we’ll be applying data augmentation to (we reviewed this dataset in the previous section).
We then have two Python scripts to implement:
load_and_visualize.py
: Demonstrates how to apply data augmentation using (1) theSequential
class andpreprocessing
module and (2) TensorFlow operations. The results of both data augmentation routines will be displayed on our screen so we can visually validate the process is working.train_with_sequential_aug.py
: Trains a simple CNN using data augmentation and thetf.data
pipeline.
Running these scripts will produce the following outputs:

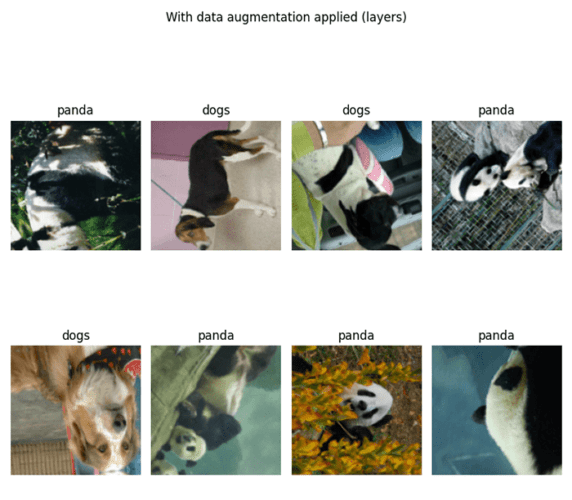

: Output of applying data augmentation with layers and theSequential

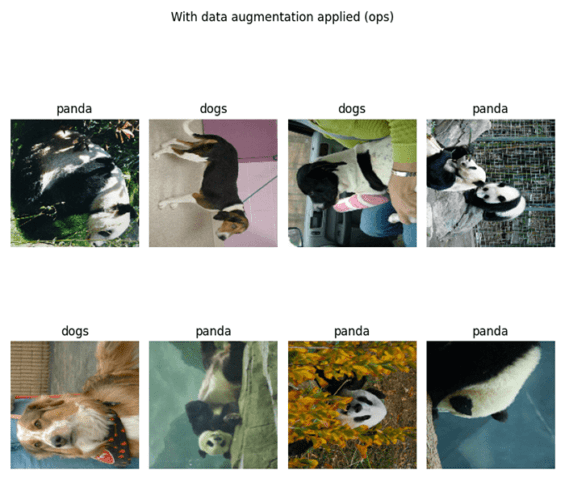

: Output visualization of applying data augmentation with built-in TensorFlow operationsno_data_aug.png

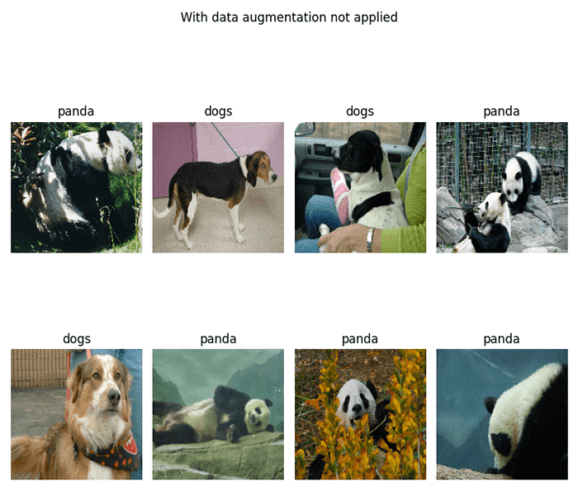

: Example images with no data augmentation appliedtraining_plot.png
: Plot of our training and validation loss/accuracy
With our project directory reviewed, we can now start digging into the implementations!
Implementing data augmentation with tf.data and TensorFlow
The first script we’ll be implementing here today will show you how to:
- Perform data augmentation using “layers” and the
Sequential
class - Apply data augmentation using built-in TensorFlow operations
- Or, simply not apply data augmentation
You’ll become familiar with the various data augmentation options available to you using tf.data
. Then, later in this tutorial, you’ll learn how to train a CNN using tf.data
and data augmentation.
But let’s first walk before we run.
Open the load_and_visualize.py
file in your project directory structure and let’s get to work:
# import the necessary packages from tensorflow.keras.layers.experimental import preprocessing from tensorflow.data import AUTOTUNE from imutils import paths import matplotlib.pyplot as plt import tensorflow as tf import argparse import os
Lines 2-8 import our required Python packages. Most importantly, take note of the preprocessing
module from layers.experimental
— the preprocessing
module provides the functions we need to perform data augmentation using TensorFlow’s Sequential
class.
While this module is called experimental
, it’s been inside the TensorFlow API for nearly a year now, so it’s safe to say that this module is anything but “experimental” (I imagine the TensorFlow developers rename this submodule at some point in the future).
Next, we have our load_images
function:
def load_images(imagePath): # read the image from disk, decode it, convert the data type to # floating point, and resize it image = tf.io.read_file(imagePath) image = tf.image.decode_jpeg(image, channels=3) image = tf.image.convert_image_dtype(image, dtype=tf.float32) image = tf.image.resize(image, (156, 156)) # parse the class label from the file path label = tf.strings.split(imagePath, os.path.sep)[-2] # return the image and the label return (image, label)
This function, like in the previous tutorials in this series, is responsible for:
- Loading our input image from disk and preprocessing it (Lines 13-16)
- Extracting the class label from the file path (Line 19)
- Returning the
andlabel
to the calling function (Line 22)
Note that we are using TensorFlow functions rather than OpenCV and Python functions to perform these operations — we use TensorFlow functions so TensorFlow can optimize our tf.data
pipeline to its fullest extent.
Our next function, augment_using_layers
, is responsible for taking an instance of Sequential
(built using preprocessing
operations) and then applying it to generate a set of augmented images:
def augment_using_layers(images, labels, aug): # pass a batch of images through our data augmentation pipeline # and return the augmented images images = aug(images) # return the image and the label return (images, labels)
Our augment_using_layers
functions accepts three required arguments:
- The input
images
inside the data batch - The corresponding class
labels
- Our data augmentation (
aug
) object, which is assumed to be an instance ofSequential
Passing our input images
through the aug
objects results in random perturbations applied to the images (Line 27). We’ll learn how to construct this aug
object later in this script.
The augmented images
and corresponding labels
are then returned to the calling function.
Our final function, augment_using_ops
, applies data augmentation using built-in TensorFlow functions inside the tf.image
module:
def augment_using_ops(images, labels): # randomly flip the images horizontally, randomly flip the images # vertically, and rotate the images by 90 degrees in the counter # clockwise direction images = tf.image.random_flip_left_right(images) images = tf.image.random_flip_up_down(images) images = tf.image.rot90(images) # return the image and the label return (images, labels)
This function accepts our data batch of images
and labels
. From there it applies:
- Random horizontal flipping
- Random vertical flipping
- 90 degree rotation (this actually isn’t a random operation but combined with the other operations it will appear to be)
Again, note that we’re building this data augmentation pipeline using built-in TensorFlow functions — what’s the advantage to this method over using the Sequential
class and layers approach, as in the augment_using_layers
function?
While the former tends to be far simpler to implement, the latter gives you significantly more control over your data augmentation pipeline.
Depending on how advanced your data augmentation procedure is, there may not be implementations of your pipeline inside the preprocessing
module. When that happens you can implement your own custom methods using TensorFlow functions, OpenCV methods, and NumPy function calls.
Essentially, applying data augmentation using operations gives you the finest grained control … but it also requires the most work since you need to either (1) find the appropriate function calls in TensorFlow, OpenCV, or NumPy, or (2) you need to hand implement the methods.
Now that we’ve implemented both these functions, we’ll see how each of them can be used to apply data augmentation.
Let’s start by parsing our command line arguments:
# construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-d", "--dataset", required=True, help="path to input images dataset") ap.add_argument("-a", "--augment", type=bool, default=False, help="flag indicating whether or not augmentation will be applied") ap.add_argument("-t", "--type", choices=["layers", "ops"], help="method to be used to perform data augmentation") args = vars(ap.parse_args())
We have one command line argument followed by two optional ones:
--dataset
: The path to the input directory of images we want to apply data augmentation to--augment
: A Boolean indicating whether we want to apply data augmentation to the input directory of images--type
: The type of data augmentation we’ll be applying (eitherlayers
orops
)
Let’s now prepare our tf.data
pipeline for data augmentation:
# set the batch size BATCH_SIZE = 8 # grabs all image paths imagePaths = list(paths.list_images(args["dataset"])) # build our dataset and data input pipeline print("[INFO] loading the dataset...") ds = tf.data.Dataset.from_tensor_slices(imagePaths) ds = (ds .shuffle(len(imagePaths), seed=42) .map(load_images, num_parallel_calls=AUTOTUNE) .cache() .batch(BATCH_SIZE) )
Line 54 sets our batch size while Line 57 grabs the path to all input images inside our --dataset
directory.
We then start building our tf.data
pipeline on Lines 61-67, including:
- Shuffling our images
- Calling
load_images
on each input image in theimagePaths
list - Caching the result
- Setting our batch size
Next, let’s check if data augmentation should be applied or not:
# check if we should apply data augmentation if args["augment"]: # check if we will be using layers to perform data augmentation if args["type"] == "layers": # initialize our sequential data augmentation pipeline aug = tf.keras.Sequential([ preprocessing.RandomFlip("horizontal_and_vertical"), preprocessing.RandomZoom( height_factor=(-0.05, -0.15), width_factor=(-0.05, -0.15)), preprocessing.RandomRotation(0.3) ]) # add data augmentation to our data input pipeline ds = (ds .map(lambda x, y: augment_using_layers(x, y, aug), num_parallel_calls=AUTOTUNE) ) # otherwise, we will be using TensorFlow image operations to # perform data augmentation else: # add data augmentation to our data input pipeline ds = (ds .map(augment_using_ops, num_parallel_calls=AUTOTUNE) )
Line 70 checks to see if our --augment
command line argument indicates whether or not we should apply data augmentation.
Provide the check passes, Line 72 checks to see if we are applying layer/sequential data augmentation.
Applying data augmentation using the preprocessing
module and Sequential
class is accomplished on Lines 74-80. As the name Sequential
implies, you can see that we are applying a random horizontal/vertical flip, random zoom, and random rotation, one at a time, and one operation followed by next (hence the name, “sequential”).
If you’ve used Keras and TensorFlow before, then you know that the Sequential
class is also used to build simple neural networks where one operation feeds into the next. Similarly, we can use the Sequential
class to build a data augmentation pipeline where the output of one augmentation function call is the input to the next one.
Users of Keras’ ImageDataGenerator
function will feel right at home here as applying data augmentation using preprocessing
and Sequential
is very similar.
We then add our aug
object to our tf.data
pipeline on Lines 83-86. Notice how we use the map
function with a lambda
function, requiring two parameters:
x
: Input imagesy
: Class labels of the images
The augment_using_layers
function then applies the actual data augmentation.
Otherwise, Lines 90-94 handles the case when we are performing data augmentation using TensorFlow operations. All we need to do there is update the tf.data
pipeline to call augment_using_ops
for each batch of data.
Let’s now finalize our tf.data
pipeline:
# complete our data input pipeline ds = (ds .prefetch(AUTOTUNE) ) # grab a batch of data from our dataset batch = next(iter(ds))
A call to prefetch
with the AUTOTONE
parameter optimizes our entire tf.data
pipeline.
We then use our data pipeline to generate a batch
of data (potentially with data augmentation applied if the --augment
command line argument is set) on Line 102.
The final step here is to visualize our output:
# initialize a figure print("[INFO] visualizing the first batch of the dataset...") title = "With data augmentation {}".format( "applied ({})".format(args["type"]) if args["augment"] else \ "not applied") fig = plt.figure(figsize=(BATCH_SIZE, BATCH_SIZE)) fig.suptitle(title) # loop over the batch size for i in range(0, BATCH_SIZE): # grab the image and label from the batch (image, label) = (batch[0][i], batch[1][i]) # create a subplot and plot the image and label ax = plt.subplot(2, 4, i + 1) plt.imshow(image.numpy()) plt.title(label.numpy().decode("UTF-8")) plt.axis("off") # show the plot plt.tight_layout() plt.show()
Lines 106-110 initialize a matplotlib figure to display our output results.
We then loop over each of the images/class labels inside the batch
(Line 113) and proceed to:
- Extract the image and label
- Display the image on the plot
- Add the class label to the plot
The resulting plot is then displayed on our screen.
Data augmentation with tf.data results
We are now ready to visualize the output of applying data augmentation with tf.data
!
Start by accessing the “Downloads” section of this tutorial to retrieve the source code and example images.
From there, execute the following command:
$ python load_and_visualize.py --dataset dataset/animals [INFO] loading the dataset... [INFO] visualizing the first batch of the dataset...
As you can see, we have performed no data augmentation here — we’re simply loading a set of example images on our screen and displaying them. This output serves as our baseline that we can compare the next two outputs to.
Now, let’s apply data augmentation using the “layers” method (i.e., the preprocessing
module and the Sequential
class).
$ python load_and_visualize.py --dataset dataset/animals \ --aug 1 --type layers [INFO] loading the dataset... [INFO] visualizing the first batch of the dataset...
Notice how we’ve successfully applied data augmentation to our input images — each input image has been randomly flipped, zoomed, and rotated.
Finally, let’s inspect the output of the TensorFlow operations method for data augmentation (i.e., hand-defining the pipeline functions):
$ python load_and_visualize.py --dataset dataset/animals \ --aug 1 --type ops [INFO] loading the dataset... [INFO] visualizing the first batch of the dataset...
Our output is very similar to Figure 5, thus demonstrating that we’ve been able to successfully incorporate data augmentation into our tf.data
pipeline.
Implementing our data augmentation training script with tf.data
In our previous section, we learned how to build a data augmentation pipeline using tf.data
; however, we did not train a neural network using our pipeline. This section addresses this problem.
By the end of this tutorial you’ll be able to start applying data augmentation to your own tf.data
pipelines.
Open the train_with_sequential.py
script in your project directory structure and let’s get to work:
# import the necessary packages from tensorflow.keras.layers import Conv2D from tensorflow.keras.layers import Activation from tensorflow.keras.layers import Flatten from tensorflow.keras.layers import Dense from tensorflow.keras import Sequential from tensorflow.keras.datasets import cifar10 from tensorflow.keras.layers.experimental import preprocessing import matplotlib.pyplot as plt import tensorflow as tf import argparse
Lines 2-11 import our required Python packages. We’ll be using the Sequential
class to:
- Build both a simple, shallow CNN
- Construct our data augmentation pipeline with the
preprocessing
module
We’ll then train our CNN on the CIFAR-10 dataset with data augmentation applied.
Next up, we have our command line arguments:
# construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-p", "--plot", type=str, default="training_plot.png", help="path to output training history plot") args = vars(ap.parse_args())
Only a single argument is indeed, --plot
, which is the path to our output training history plot.
From there we move on to setting our hyperparameters and loading the CIFAR-10 dataset.
# define training hyperparameters BATCH_SIZE = 64 EPOCHS = 50 # load the CIFAR-10 dataset print("[INFO] loading training data...") ((trainX, trainLabels), (textX, testLabels)) = cifar10.load_data()
Now we are ready to build our data augmentation procedure:
# initialize our sequential data augmentation pipeline for training trainAug = Sequential([ preprocessing.Rescaling(scale=1.0 / 255), preprocessing.RandomFlip("horizontal_and_vertical"), preprocessing.RandomZoom( height_factor=(-0.05, -0.15), width_factor=(-0.05, -0.15)), preprocessing.RandomRotation(0.3) ]) # initialize a second data augmentation pipeline for testing (this # one will only do pixel intensity rescaling testAug = Sequential([ preprocessing.Rescaling(scale=1.0 / 255) ])
Lines 28-35 initialize our trainAug
sequence, consisting of:
- Rescaling our pixel intensities from the range [0, 255] to [0, 1]
- Performing random horizontal and vertical flips
- Randomly zooming
- Applying random rotations
All of these operations are random with the exception of the Rescaling
, which is simply a basic preprocessing operation that we build into the Sequential
pipeline.
We then define our testAug
procedures on Lines 39-41. The only operation we are performing here is our [0, 1] pixel intensity scaling. We must use the Rescaling
class here since our training data was also rescaled to the range [0, 1] — failure to do so would result in erroneous output when training our network.
With our preprocessing and augmentation initializations taken care, let’s build a tf.data
pipeline for our training and testing data:
# prepare the training data pipeline (notice how the augmentation # layers have been mapped) trainDS = tf.data.Dataset.from_tensor_slices((trainX, trainLabels)) trainDS = ( trainDS .shuffle(BATCH_SIZE * 100) .batch(BATCH_SIZE) .map(lambda x, y: (trainAug(x), y), num_parallel_calls=tf.data.AUTOTUNE) .prefetch(tf.data.AUTOTUNE) ) # create our testing data pipeline (notice this time that we are # *not* apply data augmentation) testDS = tf.data.Dataset.from_tensor_slices((textX, testLabels)) testDS = ( testDS .batch(BATCH_SIZE) .map(lambda x, y: (testAug(x), y), num_parallel_calls=tf.data.AUTOTUNE) .prefetch(tf.data.AUTOTUNE) )
Lines 45-53 build our training dataset, including shuffling, creating a batch, and applying the trainAug
function.
Lines 57-64 perform a similar operation for our testing set, with two exceptions:
- We don’t need to shuffle the data for evaluation
- Our
testAug
object only performs rescaling and no random perturbations
Let’s now implement a basic CNN:
# initialize the model as a super basic CNN with only a single CONV # and RELU layer, followed by a FC and soft-max classifier print("[INFO] initializing model...") model = Sequential() model.add(Conv2D(32, (3, 3), padding="same", input_shape=(32, 32, 3))) model.add(Activation("relu")) model.add(Flatten()) model.add(Dense(10)) model.add(Activation("softmax"))
This CNN is incredibly simple, consisting of only a single CONV layer, followed by a RELU activation, and an FC layer, and our softmax classifier.
We then proceed to train our CNN using our tf.data
pipeline:
# compile the model print("[INFO] compiling model...") model.compile(loss="sparse_categorical_crossentropy", optimizer="sgd", metrics=["accuracy"]) # train the model print("[INFO] training model...") H = model.fit( trainDS, validation_data=testDS, epochs=EPOCHS) # show the accuracy on the testing set (loss, accuracy) = model.evaluate(testDS) print("[INFO] accuracy: {:.2f}%".format(accuracy * 100))
A simple call to model.fit
passing in both our trainDS
and testDS
trains our model using our tf.data
pipeline with data augmentation applied.
After training is complete, we evaluate the performance of our model on the testing set.
Our final task is generate a plot of training history:
# plot the training loss and accuracy plt.style.use("ggplot") plt.figure() plt.plot(H.history["loss"], label="train_loss") plt.plot(H.history["val_loss"], label="val_loss") plt.plot(H.history["accuracy"], label="train_acc") plt.plot(H.history["val_accuracy"], label="val_acc") plt.title("Training Loss and Accuracy on Dataset") plt.xlabel("Epoch #") plt.ylabel("Loss/Accuracy") plt.legend(loc="lower left") plt.savefig(args["plot"])
The resulting plot is then saved to disk to the file path provided via the --plot
command line argument.
Training results with data augmentation and tf.data
We are now ready to train a deep neural network using data augmentation with the tf.data
pipeline.
Be sure to access the “Downloads” section of this tutorial to retrieve the source code.
From there, you can execute the training script:
$ python train_with_sequential_aug.py [INFO] loading training data... [INFO] initializing model... [INFO] compiling model... [INFO] training model... Epoch 1/50 782/782 [==============================] - 12s 12ms/step - loss: 2.1271 - accuracy: 0.2212 - val_loss: 2.0173 - val_accuracy: 0.2626 Epoch 2/50 782/782 [==============================] - 10s 13ms/step - loss: 1.9319 - accuracy: 0.3154 - val_loss: 1.9148 - val_accuracy: 0.3104 Epoch 3/50 782/782 [==============================] - 10s 13ms/step - loss: 1.8720 - accuracy: 0.3338 - val_loss: 1.8430 - val_accuracy: 0.3403 Epoch 4/50 782/782 [==============================] - 10s 13ms/step - loss: 1.8333 - accuracy: 0.3515 - val_loss: 1.8326 - val_accuracy: 0.3483 Epoch 5/50 782/782 [==============================] - 10s 13ms/step - loss: 1.8064 - accuracy: 0.3554 - val_loss: 1.9409 - val_accuracy: 0.3246 ... Epoch 45/50 782/782 [==============================] - 10s 13ms/step - loss: 1.5882 - accuracy: 0.4379 - val_loss: 1.7483 - val_accuracy: 0.3860 Epoch 46/50 782/782 [==============================] - 10s 13ms/step - loss: 1.5800 - accuracy: 0.4380 - val_loss: 1.6637 - val_accuracy: 0.4110 Epoch 47/50 782/782 [==============================] - 10s 13ms/step - loss: 1.5851 - accuracy: 0.4357 - val_loss: 1.7648 - val_accuracy: 0.3834 Epoch 48/50 782/782 [==============================] - 10s 13ms/step - loss: 1.5823 - accuracy: 0.4371 - val_loss: 1.7195 - val_accuracy: 0.4054 Epoch 49/50 782/782 [==============================] - 10s 13ms/step - loss: 1.5812 - accuracy: 0.4388 - val_loss: 1.6914 - val_accuracy: 0.4045 Epoch 50/50 782/782 [==============================] - 10s 13ms/step - loss: 1.5785 - accuracy: 0.4381 - val_loss: 1.7291 - val_accuracy: 0.3937 157/157 [==============================] - 0s 2ms/step - loss: 1.7291 - accuracy: 0.3937 [INFO] accuracy: 39.37%
Due to our very shallow neural network (only a single CONV layer followed by a FC Layer), we’re only obtaining 39% accuracy on the testing set — the accuracy is not the important takeaway of our output.
Instead, the key takeaway here is that we’ve been able to successfully apply data augmentation to our training pipeline. You can substitute in any neural network architecture that you want and our tf.data
pipeline will automatically incorporate data augmentation to it.
As an exercise for you, I suggest swapping out our super simple CNN and try replacing it with architectures such as LeNet, MiniVGGNet, or ResNet. Regardless of which architecture you choose, our tf.data
pipeline will be able to apply data augmentation without you adding any additional code (and more importantly, this data pipeline will be far more efficient than relying on the old ImageDataGenerator
class).
What's next? We recommend PyImageSearch University.
84 total classes • 114+ hours of on-demand code walkthrough videos • Last updated: February 2024
★★★★★ 4.84 (128 Ratings) • 16,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 86 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 86 Certificates of Completion
- ✓ 115+ hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 540+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
Summary
In this tutorial, you learned how to perform data augmentation with tf.data
and TensorFlow.
There are two methods to applying data augmentation with tf.data
:
- Data augmentation with the
preprocessing
module and theSequential
class - Data augmentation with TensorFlow operations inside the
tf.image
module (along with any other custom image processing routines you want to implement using OpenCV, scikit-image, etc.)
For most deep learning practitioners the first method will be sufficient. Most popular data augmentation operations are already implemented inside the preprocessing
module.
Similarly, using the Sequential
class is a natural way to apply a series of data augmentation operations on top of each other. Users of Keras’ ImageDataGenerator
class will feel right at home using this method.
The second method is primarily for those deep learning practitioners who need more fine-grained control over their data augmentation pipeline. This method allows you to utilize image processing functions inside tf.image
along with any other computer vision/image processing library you want to use, including OpenCV, scikit-image, PIL/Pillow, etc.
Essentially, as long as you can process your image as a NumPy array and return it as a tensor, this second method is fair game for you.
Note: If you use just native TensorFlow operations you can avoid the intermediate NumPy array representation and operate directly on the TensorFlow tensor, which will result in faster augmentation.
That said, start with the first method — the preprocessing
module and the Sequential
class is a very natural, easy-to-use method for applying data augmentation with tf.data
.
To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
Download the Source Code and FREE 17-page Resource Guide
Enter your email address below to get a .zip of the code and a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL!
Comment section
Hey, Adrian Rosebrock here, author and creator of PyImageSearch. While I love hearing from readers, a couple years ago I made the tough decision to no longer offer 1:1 help over blog post comments.
At the time I was receiving 200+ emails per day and another 100+ blog post comments. I simply did not have the time to moderate and respond to them all, and the sheer volume of requests was taking a toll on me.
Instead, my goal is to do the most good for the computer vision, deep learning, and OpenCV community at large by focusing my time on authoring high-quality blog posts, tutorials, and books/courses.
If you need help learning computer vision and deep learning, I suggest you refer to my full catalog of books and courses — they have helped tens of thousands of developers, students, and researchers just like yourself learn Computer Vision, Deep Learning, and OpenCV.
Click here to browse my full catalog.
