Image Data Loaders in PyTorch

An essential part of any Deep Learning based system is to structure the data loading pipeline such that it can be seamlessly integrated with your deep learning model. In this tutorial, we will understand the working of data loading functionalities provided by PyTorch and learn to use them in our own deep learning projects effectively.

Having a diverse image dataset is crucial when exploring Image Data Loaders in PyTorch. It allows us to understand how to efficiently load and preprocess images in PyTorch for model training.

Roboflow has free tools for each stage of the computer vision pipeline that will streamline your workflows and supercharge your productivity.

Sign up or Log in to your Roboflow account to access state of the art dataset libaries and revolutionize your computer vision pipeline.

You can start by choosing your own datasets or using our PyimageSearch’s assorted library of useful datasets.

Bring data in any of 40+ formats to Roboflow, train using any state-of-the-art model architectures, deploy across multiple platforms (API, NVIDIA, browser, iOS, etc), and connect to applications or 3rd party tools.

To learn how to use PyTorch Datasets and DataLoaders, just keep reading.

Image Data Loaders in PyTorch

We will discuss the following in detail:

• How to restructure a dataset into training and validation set
• How to load a dataset in PyTorch and utilize in-built PyTorch data augmentations
• How to set-up a PyTorch DataLoaders to efficiently access data samples

Our example Flowers dataset

Our goal is to create a basic data loading pipeline with the help of PyTorch Dataset and DataLoader class, which enables us to easily and efficiently access our data samples and pass them to our deep learning model.

For this tutorial, we will be using a dataset of flowers (see Figure 1) that consists of 5 types of flowers:

1. Tulips
2. Daisy
3. Dandelion
4. Roses
5. Sunflowers

Configuring your development environment

To follow this guide, you need to have the PyTorch deep learning library, matplotlib, OpenCV and imutils packages installed on your system.

Luckily, these packages are extremely easy to install using pip:

$ pip install torch torchvision
$ pip install matplotlib
$ pip install opencv-contrib-python
$ pip install imutils

If you need help configuring your development environment for PyTorch, I highly recommend that you read the PyTorch documentation — PyTorch’s documentation is comprehensive and will have you up and running quickly.

Having problems configuring your development environment?

All that said, are you:

• Short on time?
• Learning on your employer’s administratively locked system?
• Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
• Ready to run the code right now on your Windows, macOS, or Linux system?

Then join PyImageSearch University today!

Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.

And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!

Project structure

Before we proceed, we need to first download the flowers dataset that we will be using in this tutorial.

Start with the “Downloads” section of this tutorial to access the source code and example flowers dataset.

From there, unzip the archive, and you should find the following project directory:

├── build_dataset.py
├── builtin_dataset.py
├── flower_photos
│   ├── daisy
│   ├── dandelion
│   ├── roses
│   ├── sunflowers
│   └── tulips
├── load_and_visualize.py
├── pyimagesearch
│   ├── config.py
│   ├── __init__.py

The build_dataset.py script is responsible for dividing and structuring the dataset into a training and validation set.

Furthermore, builtin_dataset.py script shows how to directly download and load some commonly used computer vision datasets, such as MNIST, using PyTorch API.

The flower_photos folder contains the dataset that we will be using. It consists of 5 subdirectories (i.e., daisy, dandelion, roses, sunflowers, tulips) each containing images of the corresponding flower category.

On the other hand, the load_and_visualize.py script is responsible for loading and accessing the data samples with the help of PyTorch Dataset and DataLoader class.

The config.py file in the pyimagesearch folder stores information such as parameters, initial settings, configurations for our code.

Note that after downloading the dataset, each image will have a path with the following format, folder_name/class_name/image_id.jpg. For example, shown below are the paths for some images in the flower dataset.

flower_photos/dandelion/8981828144_4b66b4edb6_n.jpg
flower_photos/sunflowers/14244410747_22691ece4a_n.jpg
flower_photos/roses/1666341535_99c6f7509f_n.jpg
flower_photos/sunflowers/19519101829_46af0b4547_m.jpg
flower_photos/dandelion/2479491210_98e41c4e7d_m.jpg
flower_photos/sunflowers/3950020811_dab89bebc0_n.jpg

Creating our configuration file

First, we discuss the config.py file which stores configurations and parameter settings used in the tutorial.

# specify path to the flowers and mnist dataset
FLOWERS_DATASET_PATH = "flower_photos"
MNIST_DATASET_PATH = "mnist"

# specify the paths to our training and validation set
TRAIN = "train"
VAL = "val"

# set the input height and width
INPUT_HEIGHT = 128
INPUT_WIDTH = 128

# set the batch size and validation data split
BATCH_SIZE = 8
VAL_SPLIT = 0.1

We define the path to our flowers dataset folder on Line 2 and the path for the MNIST dataset on Line 3. In addition to this, we specify the path names for our training and validation set folders on Lines 6 and 7.

On Lines 10 and 11, we define the required height and width for input images which will later enable us to resize our input to a dimension which our model can accept.

Furthermore, we define the batch size and the fraction of the dataset to be held out as validation set on Lines 14 and 15.

Splitting Dataset into Training and Validation set

Here, we discuss how to restructure our flowers dataset into a training and validation set.

Open the build_dataset.py file in your project directory structure and let’s get started.

# USAGE
# python build_dataset.py

# import necessary packages
from pyimagesearch import config
from imutils import paths
import numpy as np
import shutil
import os

We start by importing the required packages on Lines 5-9.

def copy_images(imagePaths, folder):
	# check if the destination folder exists and if not create it
	if not os.path.exists(folder):
		os.makedirs(folder)

	# loop over the image paths
	for path in imagePaths:
		# grab image name and its label from the path and create
		# a placeholder corresponding to the separate label folder
		imageName = path.split(os.path.sep)[-1]
		label = path.split(os.path.sep)[-2]
		labelFolder = os.path.join(folder, label)

		# check to see if the label folder exists and if not create it
		if not os.path.exists(labelFolder):
			os.makedirs(labelFolder)

		# construct the destination image path and copy the current
		# image to it
		destination = os.path.join(labelFolder, imageName)
		shutil.copy(path, destination)

Starting on Line 11, we define the copy_images function. This method accepts a list — imagePaths (i.e., paths of a set of images) and a destination folder and copies the input image paths to the destination.

This function will come in handy when we want a set of image paths to be copied to the training or validation folder. Next, we understand each line of this function, in detail.

We first check if the destination folder already exists, and if not we create it on Lines 13 and 14.

On Line 17, we loop over each path in our input imagePaths list.

For each path (which is of the form root/class_label/image_id.jpg) in the list:

• We separately store the image_id and class_label on Lines 20 and 21, respectively.
• On Line 22, we define a folder labelFolder in the input destination to store all images from a particular class_label. We create the labelFolder on Lines 25 and 26 if it does not exist already.
• We then construct the destination path (inside labelFolder) for an image of a given image_id (Line 30) and copy the current image to it (Line 31).

Once we have defined the copy_images function, we are ready to understand the main code required to split our dataset into training and validation sets.

# load all the image paths and randomly shuffle them
print("[INFO] loading image paths...")
imagePaths = list(paths.list_images(config.FLOWERS_DATASET_PATH))
np.random.shuffle(imagePaths)

# generate training and validation paths
valPathsLen = int(len(imagePaths) * config.VAL_SPLIT)
trainPathsLen = len(imagePaths) - valPathsLen
trainPaths = imagePaths[:trainPathsLen]
valPaths = imagePaths[trainPathsLen:]

# copy the training and validation images to their respective
# directories
print("[INFO] copying training and validation images...")
copy_images(trainPaths, config.TRAIN)
copy_images(valPaths, config.VAL)

Line 35 loads the paths of all images in the flower dataset, into a list named imagePaths. We randomly shuffle the image paths with the help of numpy on Line 36, to ensure the images in the training and validation sets come from all classes uniformly.

Now, we define a fraction of total images we want to keep aside for our validation data.

This is defined by config.VAL_SPLIT.

A common choice is to set aside 10-20% of your data for validation. On Line 39, we take the confg.VAL_SPLIT fraction of the total image paths as the validation set length (i.e., valPathsLen).

This is rounded to the nearest integer since we want the number of images to be a whole number. The remaining fraction is used as the train set length (i.e., trainPathsLen) on Line 40.

On Lines 41 and 42, we grab the training paths and validations paths from the imagePaths list.

We then pass this to the copy_images function (described previously) which takes in the list of train paths and validation paths and copies them to the train and val folders defined by the destination folders, that is, config.TRAIN and config.VAL, respectively, as shown on Lines 47 and 48.

This structures our file system as shown below. Here, we have separate train and val folders which include the training and validation images from different classes, in their respective class folders.

├── train
│   ├── daisy
│   ├── dandelion
│   ├── roses
│   ├── sunflowers
│   └── tulips
└── val
    ├── daisy
    ├── dandelion
    ├── roses
    ├── sunflowers
    └── tulips

PyTorch Dataset and DataLoaders

Now that we have divided our dataset in training and validation sets, we are ready to use PyTorch Datasets and DataLoaders to set-up our data loading pipeline.

A PyTorch Dataset provides functionalities to load and store our data samples with the corresponding labels. In addition to this, PyTorch also has an in-built DataLoader class which wraps an iterable around the dataset enabling us to easily access and iterate over the data samples in our dataset.

Let’s dive a little deeper and understand DataLoaders with the help of code. Basically, our goal is to load our training and val set with the help of PyTorch Dataset class and access the samples with the help of DataLoader class.

Open the load_and_visualize.py file in your project directory.

We start by importing the required packages.

# USAGE
# python load_and_visualize.

# import necessary packages
from pyimagesearch import config
from torchvision.datasets import ImageFolder
from torch.utils.data import DataLoader
from torchvision import transforms
import matplotlib.pyplot as plt
import torch

Our notable imports (Lines 6-9) include:

• ImageFolder class: Responsible for loading images from train and val folders into a PyTorch dataset
• DataLoader class: Enables us to wrap an iterable around our dataset so that data samples can be efficiently accessed by our deep learning model
• transforms: An in-built PyTorch class that provides common image transformations
• matplotlib.pyplot: for plotting and visualizing images

Now, we define the visualize_batch function, which will later enable us to plot and visualize sample images from training and validation batches.

def visualize_batch(batch, classes, dataset_type):
	# initialize a figure
	fig = plt.figure("{} batch".format(dataset_type),
		figsize=(config.BATCH_SIZE, config.BATCH_SIZE))

	# loop over the batch size
	for i in range(0, config.BATCH_SIZE):
		# create a subplot
		ax = plt.subplot(2, 4, i + 1)

		# grab the image, convert it from channels first ordering to
		# channels last ordering, and scale the raw pixel intensities
		# to the range [0, 255]
		image = batch[0][i].cpu().numpy()
		image = image.transpose((1, 2, 0))
		image = (image * 255.0).astype("uint8")

		# grab the label id and get the label from the classes list
		idx = batch[1][i]
		label = classes[idx]

		# show the image along with the label
		plt.imshow(image)
		plt.title(label)
		plt.axis("off")

	# show the plot
	plt.tight_layout()
	plt.show()

Starting on Line 12, the visualize_batch function takes as input a batch of data samples (i.e., batch), list of class labels (i.e., classes) and the dataset_type, to which the batch belongs, that is, training or validation.

The function loops over the indices in a given batch:

• Grabs an image at the i-th index (Line 25)
• Converts it to channel last format and scales it to conventional image pixel range of [0-255] (Lines 26 and 27)
• Gets the integer label of the i-th sample and maps it to original class label of the flower dataset with the help of the list classes (Lines 30 and 31)
• Displays the image with its label (Lines 34 and 35)

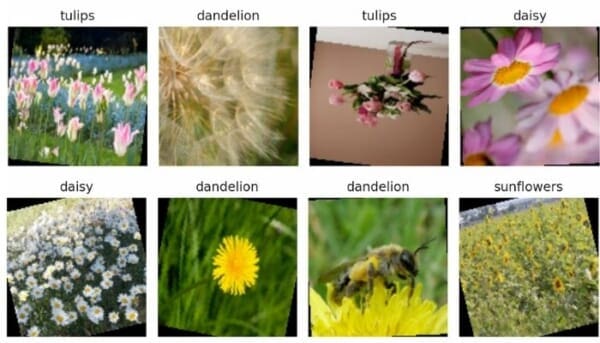

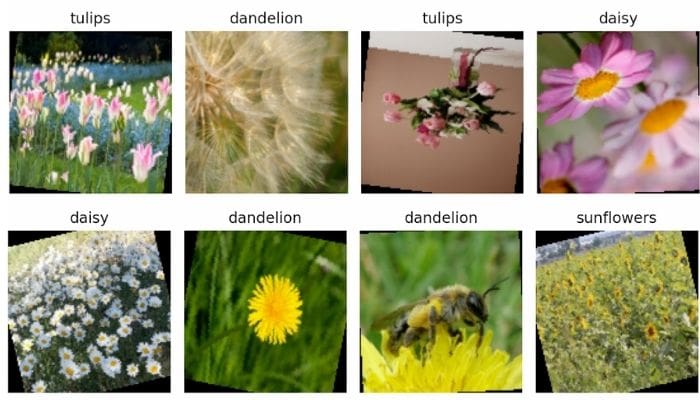

While training deep models, we usually want to use data augmentation techniques on images of our training set to improve the generalization ability of our model. PyTorch provides common image transformations that can be used out-of-the-box with the help of the transform class.

We will now look at how this works and incorporates into our data loading pipeline.

# initialize our data augmentation functions
resize = transforms.Resize(size=(config.INPUT_HEIGHT,
        config.INPUT_WIDTH))
hFlip = transforms.RandomHorizontalFlip(p=0.25)
vFlip = transforms.RandomVerticalFlip(p=0.25)
rotate = transforms.RandomRotation(degrees=15)

On Lines 43-47, we define four image transformations that we want to apply to our images:

• resize: this transform enables us to resize our images to a particular input dimension (i.e., config.INPUT_HEIGHT, config.INPUT_WIDTH) that our deep model can accept
• hFlip, vFlip: It allows us to Horizontally/Vertically flip our images. Note that it takes an argument p which defines the probability with which this transform is applied to input images.
• rotate: Enables us to rotate our images by a given angle of rotation

Note that PyTorch also provides many other image transformations apart from those mentioned above.

# initialize our training and validation set data augmentation
# pipeline
trainTransforms = transforms.Compose([resize, hFlip, vFlip, rotate,
        transforms.ToTensor()])
valTransforms = transforms.Compose([resize, transforms.ToTensor()])

We consolidate the transforms with the help of the Compose method so that all of them can be applied to our input images one by one. Note that we have another To.Tensor() transform here which simply converts all input images to PyTorch tensors. In addition, this transform also converts the input PIL Image or numpy.ndarray which are originally in the range from [0, 255], to [0, 1].

Here, we define separate transforms for our training and validation set as shown on Lines 51-53. This is because we usually do not use data augmentations on our validation or test set except for transformations like resize and ToTensor() which are necessary to convert input data to a format that our deep model can accept.

Now that we have set-up the transformations to be applied, we are ready to load our images into a dataset.

PyTorch provides an in-built ImageFolder functionality that accepts a root folder and automatically grabs data samples from a given root directory to create a Dataset. Note that ImageFolder expects images to be arranged in the following format:

root/class_name_1/img_id.png
root/class_name_2/img_id.png
root/class_name_3/img_id.png
root/class_name_4/img_id.png

This allows it to identify all unique class names and map them to integer class labels. In addition, ImageFolder also accepts transforms (as discussed before) that we want to apply to our input images while loading them.

# initialize the training and validation dataset
print("[INFO] loading the training and validation dataset...")
trainDataset = ImageFolder(root=config.TRAIN,
        transform=trainTransforms)
valDataset = ImageFolder(root=config.VAL,
        transform=valTransforms)
print("[INFO] training dataset contains {} samples...".format(
        len(trainDataset)))
print("[INFO] validation dataset contains {} samples...".format(
        len(valDataset)))

On Lines 57-60, we use ImageFolder to create PyTorch Datasets for training and validation sets, respectively. Note that each PyTorch dataset has a __len__ method that enables us to get the number of samples in the dataset as shown on Lines 61-64.

Also, each Dataset has a __getitem__ method that enables us to directly index into the samples and grab a particular data point.

Suppose we want to check the type of the i-th data sample in the dataset. We can simply index into our dataset as trainDataset[i] and access the data point which is a tuple. This is because each of the data samples in our dataset is a tuple of the form (image, label).

Now, we are ready to create a DataLoader for our datasets.

# create training and validation set dataloaders
print("[INFO] creating training and validation set dataloaders...")
trainDataLoader = DataLoader(trainDataset,
        batch_size=config.BATCH_SIZE, shuffle=True)
valDataLoader = DataLoader(valDataset, batch_size=config.BATCH_SIZE)

A DataLoader accepts a PyTorch dataset and outputs an iterable which enables easy access to data samples from the dataset.

On Lines 68-70, we pass our training and validation datasets to the DataLoader class.

A PyTorch DataLoader accepts a batch_size so that it can divide the dataset into chunks of samples.

The samples in each chunk or batch can then be parallelly processed by our deep model. Furthermore, we can also decide if we want to shuffle our samples before passing it to the deep model which is usually required for optimal learning and convergence of batch gradient based optimization approaches.

Lines 68-70 returns two iterables (i.e., trainDataLoader and valDataLoader).

# grab a batch from both training and validation dataloader
trainBatch = next(iter(trainDataLoader))
valBatch = next(iter(valDataLoader))

# visualize the training and validation set batches
print("[INFO] visualizing training and validation batch...")
visualize_batch(trainBatch, trainDataset.classes, "train")
visualize_batch(valBatch, valDataset.classes, "val")

We convert the trainDataLoader and valDataLoader iterable to a python iterator using the iter() method as shown on Lines 73 and 74. This allows us to simply iterate through batches of training or validation with the help of the next() method.

Finally, we visualize the training and validation batch with the help of visualize_batch function.

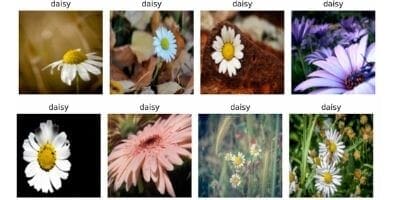

Lines 78 and 79 visualize the trainBatch and valBatch with the help of the visualize_batch method giving the following output. Figures 3 and 4 show sample images from the training and validation batches, respectively.

Built-in Datasets

In the previous sections of this PyTorch Data Loader tutorial, we learned to download a custom dataset, structure it, load it as a PyTorch dataset and access its samples with the help of DataLoaders.

In addition to this, PyTorch also provides a simple API that can be used to directly download and load images from some commonly used datasets in computer vision. These include datasets like MNIST, CIFAR-10, CIFAR-100, CelebA, etc.

We will now see how we can easily access these datasets and use them for our own projects. For the purpose of this tutorial, we use the MNIST dataset.

Let’s first open the builtin_dataset.py file in our project directory.

# USAGE
# python builtin_dataset.py

# import necessary packages
from pyimagesearch import config
from torchvision.datasets import MNIST
from torch.utils.data import DataLoader
from torchvision import transforms
import matplotlib.pyplot as plt

We start by importing the necessary packages on Lines 5-9. The torchvision.datasets module provides us with the functionality to directly load common, widely used datasets.

On Line 6, we import the MNIST dataset from this module.

Our other notable imports include the PyTorch DataLoader class (Line 7), the transforms module from torchvision (Line 8), and the matplotlib library (Line 9) for visualization.

def visualize_batch(batch, classes, dataset_type):
	# initialize a figure
	fig = plt.figure("{} batch".format(dataset_type),
	figsize=(config.BATCH_SIZE, config.BATCH_SIZE))

	# loop over the batch size
	for i in range(0, config.BATCH_SIZE):
		# create a subplot
		ax = plt.subplot(2, 4, i + 1)

		# grab the image, convert it from channels first ordering to
		# channels last ordering, and scale the raw pixel intensities
		# to the range [0, 255]
		image = batch[0][i].cpu().numpy()
		image = image.transpose((1, 2, 0))
		image = (image * 255.0).astype("uint8")

		# grab the label id and get the label from the classes list
		idx = batch[1][i]
		label = classes[idx]

		# show the image along with the label
		plt.imshow(image[..., 0], cmap="gray")
		plt.title(label)
		plt.axis("off")

	# show the plot
	plt.tight_layout()
	plt.show()

Next, we define the visualize_batch function that helps us in visualizing samples from a batch.

This function is similar to the visualize_batch function we defined earlier in the load_and_visualize.py file. The only difference here is on Line 33, where we plot the image in cmap="gray" mode since MNIST consists of single channel, grayscale images, which is in contrast to 3-channel RGB images in the flower dataset.

# define the transform
transform = transforms.Compose([transforms.ToTensor()])

# initialzie the training and validation dataset
print("[INFO] loading the training and validation dataset...")
trainDataset = MNIST(root=config.MNIST_DATASET_PATH, train=True,
	download=True, transform=transform)
valDataset = MNIST(root=config.MNIST_DATASET_PATH, train=False,
	download=True, transform=transform)

We define our transforms on Line 42. On Lines 46-49, we use the torchvision.datasets module to directly download the MNIST training and validation set and load it as PyTorch datasets trainDataset and valDataset. Here, we need to provide the following arguments:

• root: the root directory where we want to save the dataset
• train: indicates if we want to load the training set (if train=True) or test set (if train=False)
• download: responsible for automatically downloading the dataset
• transforms: the image transformations to be applied to the input images

# create training and validation set dataloaders
print("[INFO] creating training and validation set dataloaders...")
trainDataLoader = DataLoader(trainDataset,
	batch_size=config.BATCH_SIZE, shuffle=True)
valDataLoader = DataLoader(valDataset, batch_size=config.BATCH_SIZE)

# grab a batch from both training and validation dataloader
trainBatch = next(iter(trainDataLoader))
valBatch = next(iter(valDataLoader))

# visualize the training set batch
print("[INFO] visualizing training batch...")
visualize_batch(trainBatch, trainDataset.classes, "train")

# visualize the validation set batch
print("[INFO] visualizing validation batch...")
visualize_batch(valBatch, valDataset.classes, "val")

We create DataLoaders for training and validation datasets, that is, trainDataLoader and valDataLoader on Lines 53-55. Next, we get batches from the training and validation DataLoaders and visualize sample images on Lines 58-67, as explained earlier.

Now you understand how to use PyTorch DataLoaders with built-in PyTorch datasets.

Summary

In this tutorial, we learned how to structure our data loading pipeline with the help of built-in PyTorch functionalities. Specifically, we learned how PyTorch Datasets and DataLoaders could efficiently load and access data samples from our dataset.

Our goal was to structure the flowers dataset by splitting it into training and testing sets and load the data samples with the help of PyTorch Datasets.

We discussed how to efficiently access the data samples using PyTorch DataLoaders while applying various data augmentations.

Finally, we also learned about some common built-in PyTorch datasets that can be directly loaded and used in our deep learning projects.

After following the tutorial, we built a data loading pipeline that can be seamlessly integrated with and used to train any deep learning model at hand. Congratulations!

Citation Information

Chandhok, S. “Image Data Loaders in PyTorch,” PyImageSearch, 2021, https://pyimagesearch.com/2021/10/04/image-data-loaders-in-pytorch/

@article{Chandhok_2021, author = {Shivam Chandhok}, title = {Image Data Loaders in {PyTorch}}, journal = {PyImageSearch}, year = {2021}, note = {https://pyimagesearch.com/2021/10/04/image-data-loaders-in-pytorch/} }

To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
