My wife is a huge Sudoku nerd. Every time we travel, whether it be a 45-minute flight from Philadelphia to Albany or a 6-hour transcontinental flight to California, she always has a Sudoku puzzle with her.
The funny thing is, she prefers the printed Sudoku puzzle books. She hates the digital/smartphone app versions and refuses to play them.
I’m not a big puzzle person myself, but one time, we were sitting on a flight, and I asked:
How do you know if you solved the puzzle correctly? Is there a solution sheet in the back of the book? Or do you just do it and hope it’s correct?
Apparently, that was a stupid question to ask, for two reasons:
- Yes, there is a solution key in the back. All you need to do is flip to the back of the book, locate the puzzle number, and see the solution.
- And most importantly, she doesn’t solve a puzzle incorrectly. My wife doesn’t get mad easily, but let me tell you, I touched a nerve when I innocently and unknowingly insulted her Sudoku puzzle solving skills.
She then lectured me for 20 minutes on how she only solves “level 4 and 5 puzzles,” followed by a lesson on the “X-wing” and “Y-wing” techniques to Sudoku puzzle solving. I have a Ph.D in computer science, but all of that went over my head.
But for those of you who aren’t married to a Sudoku grand master like I am, it does raise the question:
Can OpenCV and OCR be used to solve and check Sudoku puzzles?
If the Sudoku puzzle manufacturers didn’t have to print the answer key in the back of the book and instead provided an app for users to check their puzzles, the printers could either pocket the savings or print additional puzzles at no cost.
The Sudoku puzzle company makes more money, and the end users are happy. Seems like a win/win.
And from my perspective, perhaps if I publish a tutorial on Sudoku, maybe I can get back in my wife’s good graces.
To learn how to build an automatic Sudoku puzzle solver with OpenCV, Deep Learning, and OCR, just keep reading.
OpenCV Sudoku Solver and OCR
In the first part of this tutorial, we’ll discuss the steps required to build a Sudoku puzzle solver using OpenCV, deep learning, and Optical Character Recognition (OCR) techniques.
From there, you’ll configure your development environment and ensure the proper libraries and packages are installed.
Before we write any code, we’ll first review our project directory structure, ensuring you know what files will be created, modified, and utilized throughout the course of this tutorial.
I’ll then show you how to implement
SudokuNet, a basic Convolutional Neural Network (CNN) that will be used to OCR the digits on the Sudoku puzzle board.
We’ll then train that network to recognize digits using Keras and TensorFlow.
But before we can actually check and solve a Sudoku puzzle, we first need to locate where in the image the Sudoku board is — we’ll implement helper functions and utilities to help with that task.
Finally, we’ll put all the pieces together and implement our full OpenCV Sudoku puzzle solver.
How to solve Sudoku puzzles with OpenCV and OCR

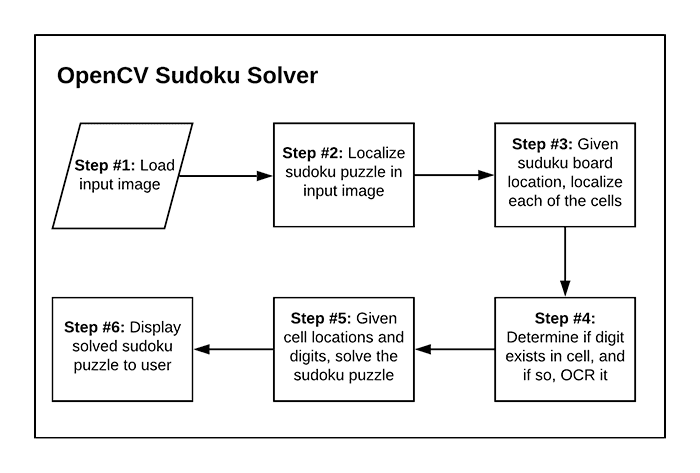

Creating an automatic Sudoku puzzle solver with OpenCV is a 6-step process:
- Step #1: Provide input image containing Sudoku puzzle to our system.
- Step #2: Locate where in the input image the puzzle is and extract the board.
- Step #3: Given the board, locate each of the individual cells of the Sudoku board (most standard Sudoku puzzles are a 9×9 grid, so we’ll need to localize each of these cells).
- Step #4: Determine if a digit exists in the cell, and if so, OCR it.
- Step #5: Apply a Sudoku puzzle solver/checker algorithm to validate the puzzle.
- Step #6: Display the output result to the user.
The majority of these steps can be accomplished using OpenCV along with basic computer vision and image processing operations.
The biggest exception is Step #4, where we need to apply OCR.
OCR can be a bit tricky to apply, but we have a number of options:
- Use the Tesseract OCR engine, the de facto standard for open source OCR
- Utilize cloud-based OCR APIs, such as Microsoft Cognitive Services, Amazon Rekognition, or the Google Vision API
- Train our own custom OCR model
All of these are perfectly valid options; however, in order to make a complete end-to-end tutorial, I’ve decided that we’ll train our own custom Sudoku OCR model using deep learning.
Be sure to strap yourself in — this is going to be a wild ride.
Configuring your development environment to solve Sudoku puzzles with OpenCV and OCR
To configure your system for this tutorial, I recommend following either of these tutorials to establish your baseline system and create a virtual environment:
Please note that PyImageSearch does not recommend or support Windows for CV/DL projects.
Once your environment is up and running, you’ll need another package for this tutorial. You need to install py-sudoku, the library we’ll be using to help us solve Sudoku puzzles:
$ pip install py-sudoku
Take a moment to grab today’s files from the “Downloads” section of this tutorial. From there, extract the archive, and inspect the contents:
$ tree --dirsfirst . ├── output │ └── digit_classifier.h5 ├── pyimagesearch │ ├── models │ │ ├── __init__.py │ │ └── Sudokunet.py │ ├── Sudoku │ │ ├── __init__.py │ │ └── puzzle.py │ └── __init__.py ├── solve_sudoku_puzzle.py ├── sudoku_puzzle.jpg └── train_digit_classifier.py 4 directories, 9 files
Inside, you’ll find a
pyimagesearch module containing the following:
: Holds the SudokuNet CNN architecture implemented with TensorFlow and Keras.
: Contains two helper utilities for finding the Sudoku puzzle board itself as well as digits therein.
As with all CNNs, SudokuNet needs to be trained with data. Our
train_digit_classifier.py script will train a digit OCR model on the MNIST dataset.
Once SudokuNet is successfully trained, we’ll deploy it with our
solve_sudoku_puzzle.py script to solve a Sudoku puzzle.

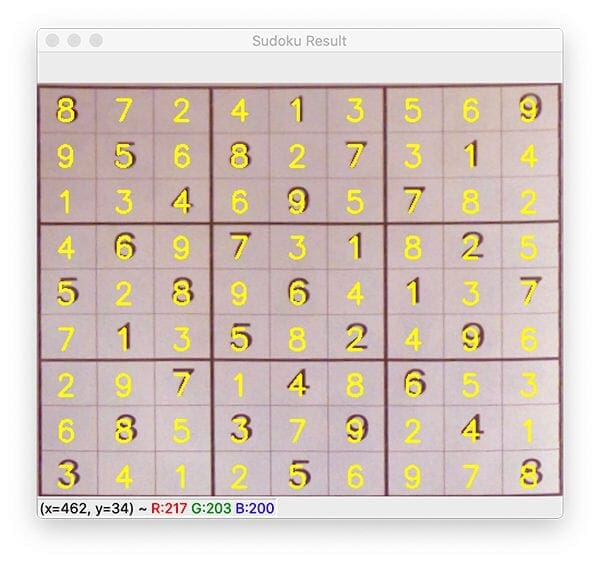

When your system is working, you can impress your friends with the app. Or better yet, fool them on the airplane as you solve puzzles faster than they possibly can in the seat right behind you! Don’t worry, I won’t tell!
SudokuNet: A digit OCR model implemented in Keras and TensorFlow
Every Sudoku puzzle starts with an NxN grid (typically 9×9) where some cells are blank and other cells already contain a digit.
The goal is to use the knowledge about the existing digits to correctly infer the other digits.
But before we can solve Sudoku puzzles with OpenCV, we first need to implement a neural network architecture that will handle OCR’ing the digits on the Sudoku puzzle board — given that information, it will become trivial to solve the actual puzzle.
Fittingly, we’ll name our Sudoku puzzle architecture
Open up the
Sudokunet.py file in your
pyimagesearch module, and insert the following code:
# import the necessary packages from tensorflow.keras.models import Sequential from tensorflow.keras.layers import Conv2D from tensorflow.keras.layers import MaxPooling2D from tensorflow.keras.layers import Activation from tensorflow.keras.layers import Flatten from tensorflow.keras.layers import Dense from tensorflow.keras.layers import Dropout
SudokuNet‘s imports are from
tf.keras. As you can see, we’ll be using Keras’ Sequential API as well as the
Now that our imports are taken care of, let’s dive right into the implementation of our CNN:
class SudokuNet: @staticmethod def build(width, height, depth, classes): # initialize the model model = Sequential() inputShape = (height, width, depth)
SudokuNet class is defined with a single static method (no constructor) on Lines 10-12. The
build method accepts the following parameters:
: The width of an MNIST digit (
: The height of an MNIST digit (
depth: Channels of MNIST digit images (
: The number of digits 0-9 (
Lines 14 and 15 initialize our
model to be built with the
Sequential API as well as establish the
inputShape, which we’ll need for our first CNN layer.
Now that our
model is initialized, let’s go ahead and build out our CNN:
# first set of CONV => RELU => POOL layers model.add(Conv2D(32, (5, 5), padding="same", input_shape=inputShape)) model.add(Activation("relu")) model.add(MaxPooling2D(pool_size=(2, 2))) # second set of CONV => RELU => POOL layers model.add(Conv2D(32, (3, 3), padding="same")) model.add(Activation("relu")) model.add(MaxPooling2D(pool_size=(2, 2))) # first set of FC => RELU layers model.add(Flatten()) model.add(Dense(64)) model.add(Activation("relu")) model.add(Dropout(0.5)) # second set of FC => RELU layers model.add(Dense(64)) model.add(Activation("relu")) model.add(Dropout(0.5)) # softmax classifier model.add(Dense(classes)) model.add(Activation("softmax")) # return the constructed network architecture return model
The body of our network is composed of:
: Layer set 1
CONV => RELU => POOL
: Layer set 2
CONV => RELU => POOL
: Fully-connected layer set with 50% dropout
FC => RELU
The head of the network consists of a softmax classifier with the number of outputs being equal to the number of our
classes (in our case:
Great job implementing
If the CNN layers and working with the Sequential API was unfamiliar to you, I recommend checking out either of the following resources:
- Keras Tutorial: How to get started with Keras, Deep Learning, and Python
- Deep Learning for Computer Vision with Python (Starter Bundle)
Note: As an aside, I’d like to take a moment to point out here that if you were, for example, building a CNN to classify 26 uppercase English letters plus the 10 digits (a total of 36 characters), you most certainly would need a deeper CNN (outside the scope of this tutorial, which focuses on digits as they apply to Sudoku). I cover how to train networks on both digits and alphabet characters inside my book, OCR with OpenCV, Tesseract and Python.
Implementing our Sudoku digit training script with Keras and TensorFlow
SudokuNet model architecture implemented, we can move on to creating a Python script that will train the model to recognize digits.
Perhaps unsurprisingly, we’ll be using the MNIST dataset to train our digit recognizer, as it fits quite nicely in this use case.
Open up the
train_digit_classifier.py to get started:
# import the necessary packages from pyimagesearch.models import SudokuNet from tensorflow.keras.optimizers import Adam from tensorflow.keras.datasets import mnist from sklearn.preprocessing import LabelBinarizer from sklearn.metrics import classification_report import argparse # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-m", "--model", required=True, help="path to output model after training") args = vars(ap.parse_args())
We begin our training script with a small handful of imports. Most notably, we’re importing
SudokuNet (discussed in the previous section) and the
mnist dataset. The MNIST dataset of handwritten digits is built right into TensorFlow/Keras’
datasets module and will be cached to your machine on demand.
Our script requires a single command line argument:
--model. When you execute the training script from the command line, simply pass a filename for your output model file (I recommend using the
.h5 file extension).
Next, we’ll (1) set hyperparameters and (2) load and pre-process MNIST:
# initialize the initial learning rate, number of epochs to train # for, and batch size INIT_LR = 1e-3 EPOCHS = 10 BS = 128 # grab the MNIST dataset print("[INFO] accessing MNIST...") ((trainData, trainLabels), (testData, testLabels)) = mnist.load_data() # add a channel (i.e., grayscale) dimension to the digits trainData = trainData.reshape((trainData.shape, 28, 28, 1)) testData = testData.reshape((testData.shape, 28, 28, 1)) # scale data to the range of [0, 1] trainData = trainData.astype("float32") / 255.0 testData = testData.astype("float32") / 255.0 # convert the labels from integers to vectors le = LabelBinarizer() trainLabels = le.fit_transform(trainLabels) testLabels = le.transform(testLabels)
You can configure training hyperparameters on Lines 17-19. Through experimentation, I’ve determined appropriate settings for the learning rate, number of training epochs, and batch size.
Note: Advanced users might wish to check out my Keras Learning Rate Finder tutorial to aid in automatically finding optimal learning rates.
To work with the MNIST digit dataset, we perform the following steps:
- Load the dataset into memory (Line 23). This dataset is already split into training and testing data
- Add a channel dimension to the digits to indicate that they are grayscale (Lines 30 and 31)
- Scale data to the range of [0, 1] (Lines 30 and 31)
- One-hot encode labels (Lines 34-36)
The process of one-hot encoding means that an integer such as
3 would be represented as follows:
[0, 0, 0, 1, 0, 0, 0, 0, 0, 0]
Or the integer
9 would be encoded like so:
[0, 0, 0, 0, 0, 0, 0, 0, 0, 1]
From here, we’ll go ahead and initialize and train
SudokuNet on our digits data:
# initialize the optimizer and model print("[INFO] compiling model...") opt = Adam(lr=INIT_LR) model = SudokuNet.build(width=28, height=28, depth=1, classes=10) model.compile(loss="categorical_crossentropy", optimizer=opt, metrics=["accuracy"]) # train the network print("[INFO] training network...") H = model.fit( trainData, trainLabels, validation_data=(testData, testLabels), batch_size=BS, epochs=EPOCHS, verbose=1)
Lines 40-43 build and compile our
model with the
Adam optimizer and categorical cross-entropy
Note: We’re focused on 10 digits. However, if you were only focused on recognizing binary numbers
1, then you would use
loss="binary_crossentropy". Keep this in mind when working with two-class datasets or data subsets.
Training is launched via a call to the
fit method (Lines 47-52).
Once training is complete, we’ll evaluate and export our model:
# evaluate the network print("[INFO] evaluating network...") predictions = model.predict(testData) print(classification_report( testLabels.argmax(axis=1), predictions.argmax(axis=1), target_names=[str(x) for x in le.classes_])) # serialize the model to disk print("[INFO] serializing digit model...") model.save(args["model"], save_format="h5")
Using our newly trained
model, we make predictions on our
testData (Line 56). From there we print a classification report to our terminal (Lines 57-60).
Finally, we save our model to disk (Line 64). Note that for TensorFlow 2.0+, we recommend explicitly setting the
save_format="h5" (HDF5 format).
Training our Sudoku digit recognizer with Keras and TensorFlow
We’re now ready to train our
SudokuNet model to recognize digits.
Start by using the “Downloads” section of this tutorial to download the source code and example images.
From there, open up a terminal, and execute the following command:
$ python train_digit_classifier.py --model output/digit_classifier.h5 [INFO] accessing MNIST... [INFO] compiling model... [INFO] training network... [INFO] training network... Epoch 1/10 469/469 [==============================] - 22s 47ms/step - loss: 0.7311 - accuracy: 0.7530 - val_loss: 0.0989 - val_accuracy: 0.9706 Epoch 2/10 469/469 [==============================] - 22s 47ms/step - loss: 0.2742 - accuracy: 0.9168 - val_loss: 0.0595 - val_accuracy: 0.9815 Epoch 3/10 469/469 [==============================] - 21s 44ms/step - loss: 0.2083 - accuracy: 0.9372 - val_loss: 0.0452 - val_accuracy: 0.9854 ... Epoch 8/10 469/469 [==============================] - 22s 48ms/step - loss: 0.1178 - accuracy: 0.9668 - val_loss: 0.0312 - val_accuracy: 0.9893 Epoch 9/10 469/469 [==============================] - 22s 47ms/step - loss: 0.1100 - accuracy: 0.9675 - val_loss: 0.0347 - val_accuracy: 0.9889 Epoch 10/10 469/469 [==============================] - 22s 47ms/step - loss: 0.1005 - accuracy: 0.9700 - val_loss: 0.0392 - val_accuracy: 0.9889 [INFO] evaluating network... precision recall f1-score support 0 0.98 1.00 0.99 980 1 0.99 1.00 0.99 1135 2 0.99 0.98 0.99 1032 3 0.99 0.99 0.99 1010 4 0.99 0.99 0.99 982 5 0.98 0.99 0.98 892 6 0.99 0.98 0.99 958 7 0.98 1.00 0.99 1028 8 1.00 0.98 0.99 974 9 0.99 0.98 0.99 1009 accuracy 0.99 10000 macro avg 0.99 0.99 0.99 10000 weighted avg 0.99 0.99 0.99 10000 [INFO] serializing digit model...
Here, you can see that our
SudokuNet model has obtained 99% accuracy on our testing set.
You can verify that the model is serialized to disk by inspecting your
$ ls -lh output total 2824 -rw-r--r--@ 1 adrian staff 1.4M Jun 7 07:38 digit_classifier.h5
digit_classifier.h5 file contains our Keras/TensorFlow model, which we’ll use to recognize the digits on a Sudoku board later in this tutorial.
This model is quite small and could be deployed to a Raspberry Pi or even a mobile device such as an iPhone running the CoreML framework.
Finding the Sudoku puzzle board in an image with OpenCV
At this point, we have a model that can recognize digits in an image; however, that digit recognizer doesn’t do us much good if it can’t locate the Sudoku puzzle board in an image.
For example, let’s say we presented the following Sudoku puzzle board to our system:
How are we going to locate the actual Sudoku puzzle board in the image?

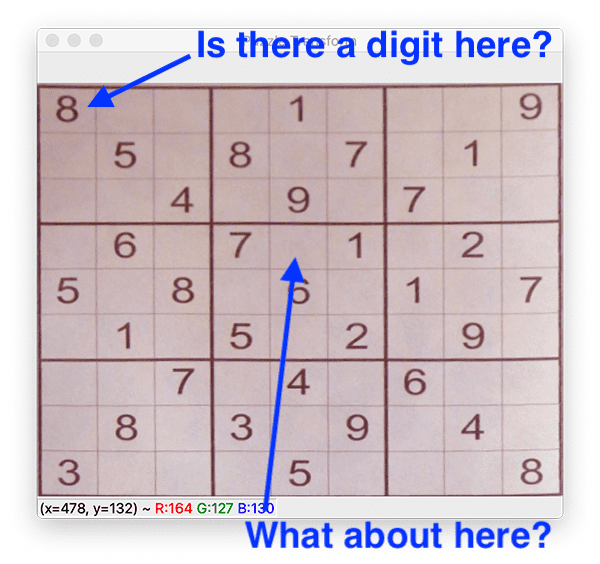

And once we’ve located the puzzle, how do we identify each of the individual cells?
To make our lives a bit easier, we’ll be implementing two helper utilities:
: Locates and extracts the Sudoku puzzle board from the input image

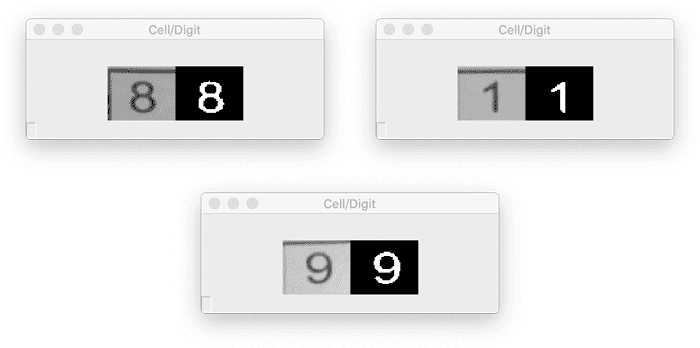

: Examines each cell of the Sudoku puzzle board and extracts the digit from the cell (provided there is a digit)
This section will show you how to implement the
find_puzzle method, while the next section will show the
Open up the
puzzle.py file in the
pyimagesearch module, and we’ll get started:
# import the necessary packages from imutils.perspective import four_point_transform from skimage.segmentation import clear_border import numpy as np import imutils import cv2 def find_puzzle(image, debug=False): # convert the image to grayscale and blur it slightly gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY) blurred = cv2.GaussianBlur(gray, (7, 7), 3)
Our two helper functions require my imutils implementation of a
four_point_transform for deskewing an image to obtain a bird’s eye view.
Additionally, we’ll use the
clear_border routine in our
extract_digit function to clean up the edges of a Sudoku cell. Most operations will be driven with OpenCV with a little bit of help from NumPy and imutils.
find_puzzle function comes first and accepts two parameters:
: The photo of a Sudoku puzzle.
: A optional boolean indicating whether to show intermediate steps so you can better visualize what is happening under the hood of our computer vision pipeline. If you are encountering any issues, I recommend setting
debug=Trueand using your computer vision knowledge to iron out any bugs.
Our first step is to convert our
image to grayscale and apply a Gaussian blur operation with a 7×7 kernel (Lines 10 and 11).

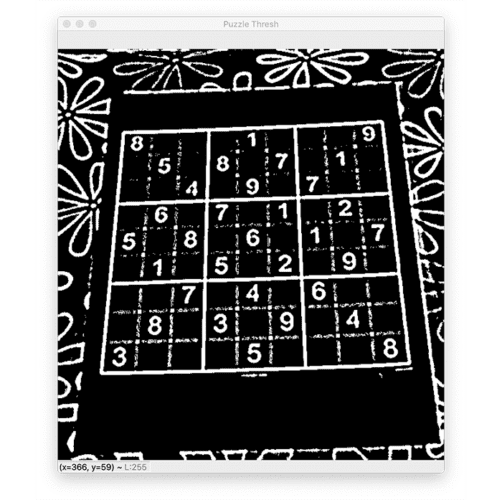

And next, we’ll apply adaptive thresholding:
# apply adaptive thresholding and then invert the threshold map thresh = cv2.adaptiveThreshold(blurred, 255, cv2.ADAPTIVE_THRESH_GAUSSIAN_C, cv2.THRESH_BINARY, 11, 2) thresh = cv2.bitwise_not(thresh) # check to see if we are visualizing each step of the image # processing pipeline (in this case, thresholding) if debug: cv2.imshow("Puzzle Thresh", thresh) cv2.waitKey(0)
Binary adaptive thresholding operations allow us to peg grayscale pixels toward each end of the [0, 255] pixel range. In this case, we’ve both applied a binary threshold and then inverted the result as shown in Figure 5 below:
Just remember, you’ll only see something similar to the inverted thresholded image if you have your
debug option set to
Now that our image is thresholded, let’s find and sort contours:
# find contours in the thresholded image and sort them by size in # descending order cnts = cv2.findContours(thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE) cnts = imutils.grab_contours(cnts) cnts = sorted(cnts, key=cv2.contourArea, reverse=True) # initialize a contour that corresponds to the puzzle outline puzzleCnt = None # loop over the contours for c in cnts: # approximate the contour peri = cv2.arcLength(c, True) approx = cv2.approxPolyDP(c, 0.02 * peri, True) # if our approximated contour has four points, then we can # assume we have found the outline of the puzzle if len(approx) == 4: puzzleCnt = approx break
Here, we find contours and sort by area in reverse order (Lines 26-29).

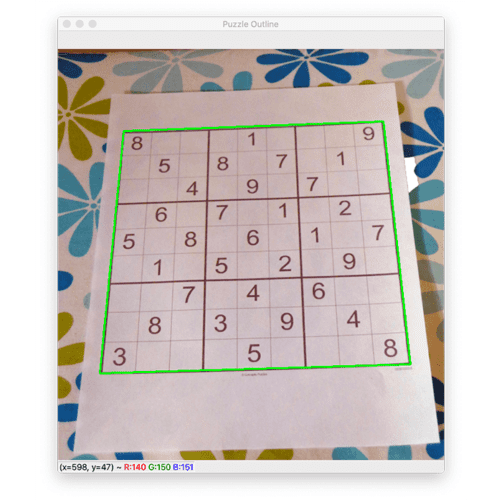

One of our contours will correspond to the outline of the Sudoku grid —
puzzleCnt is initialized to
None on Line 32. Let’s determine which of our
cnts is our
puzzleCnt using the following approach:
- Loop over all contours beginning on Line 35
- Determine the perimeter of the contour (Line 37)
- Approximate the contour (Line 38)
- Check if contour has four vertices, and if so, mark it as the
breakout of the loop (Lines 42-44)
It is possible that the outline of the Sudoku grid isn’t found. In that case, let’s raise an
# if the puzzle contour is empty then our script could not find # the outline of the Sudoku puzzle so raise an error if puzzleCnt is None: raise Exception(("Could not find Sudoku puzzle outline. " "Try debugging your thresholding and contour steps.")) # check to see if we are visualizing the outline of the detected # Sudoku puzzle if debug: # draw the contour of the puzzle on the image and then display # it to our screen for visualization/debugging purposes output = image.copy() cv2.drawContours(output, [puzzleCnt], -1, (0, 255, 0), 2) cv2.imshow("Puzzle Outline", output) cv2.waitKey(0)
If the Sudoku puzzle is not found, we raise an
Exception to tell the user/developer what happened (Lines 48-50).
And again, if we are debugging, we’ll visualize what is going on under the hood by drawing the puzzle contour outline on the
image, as shown in Figure 6:
With the contour of the puzzle in hand (fingers crossed), we’re then able to deskew the image to obtain a top-down bird’s eye view of the puzzle:
# apply a four point perspective transform to both the original # image and grayscale image to obtain a top-down bird's eye view # of the puzzle puzzle = four_point_transform(image, puzzleCnt.reshape(4, 2)) warped = four_point_transform(gray, puzzleCnt.reshape(4, 2)) # check to see if we are visualizing the perspective transform if debug: # show the output warped image (again, for debugging purposes) cv2.imshow("Puzzle Transform", puzzle) cv2.waitKey(0) # return a 2-tuple of puzzle in both RGB and grayscale return (puzzle, warped)
Applying a four-point perspective transform effectively deskews our Sudoku puzzle grid, making it much easier for us to determine rows, columns, and cells as we move forward (Lines 65 and 66). This operation is performed on the original RGB
The final result of our
find_puzzle function is shown in Figure 7:
find_puzzle return signature consists of a 2-tuple of the original RGB image and grayscale image after all operations, including the final four-point perspective transform.
Great job so far!
Let’s continue our forward march toward solving Sudoku puzzles. Now we need a means to extract digits from Sudoku puzzle cells, and we’ll do just that in the next section.
Extracting digits from a Sudoku puzzle with OpenCV
In our previous section, you learned how to detect and extract the Sudoku puzzle board from an image with OpenCV.
This section will show you how to examine each of the individual cells in a Sudoku board, detect if there is a digit in the cell, and if so, extract the digit.
Continuing where we left off in the previous section, let’s open the
puzzle.py file once again and get to work:
def extract_digit(cell, debug=False): # apply automatic thresholding to the cell and then clear any # connected borders that touch the border of the cell thresh = cv2.threshold(cell, 0, 255, cv2.THRESH_BINARY_INV | cv2.THRESH_OTSU) thresh = clear_border(thresh) # check to see if we are visualizing the cell thresholding step if debug: cv2.imshow("Cell Thresh", thresh) cv2.waitKey(0)
Here, you can see we’ve defined our
extract_digit function to accept two parameters:
: An ROI representing an individual cell of the Sudoku puzzle (it may or may not contain a digit)
: A boolean indicating whether intermediate step visualizations should be shown to your screen
Our first step, on Lines 80-82, is to threshold and clear any foreground pixels that are touching the borders of the cell (such as any line markings from the cell dividers). The result of this operation can be shown via Lines 85-87.
Let’s see if we can find the digit contour:
# find contours in the thresholded cell cnts = cv2.findContours(thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE) cnts = imutils.grab_contours(cnts) # if no contours were found than this is an empty cell if len(cnts) == 0: return None # otherwise, find the largest contour in the cell and create a # mask for the contour c = max(cnts, key=cv2.contourArea) mask = np.zeros(thresh.shape, dtype="uint8") cv2.drawContours(mask, [c], -1, 255, -1)
Lines 90-92 find the contours in the thresholded cell. If no contours are found, we return
None (Lines 95 and 96).
Given our contours,
cnts, we then find the largest contour by pixel area and construct an associated
mask (Lines 100-102).
From here, we’ll continue working on trying to isolate the digit in the cell:
# compute the percentage of masked pixels relative to the total # area of the image (h, w) = thresh.shape percentFilled = cv2.countNonZero(mask) / float(w * h) # if less than 3% of the mask is filled then we are looking at # noise and can safely ignore the contour if percentFilled < 0.03: return None # apply the mask to the thresholded cell digit = cv2.bitwise_and(thresh, thresh, mask=mask) # check to see if we should visualize the masking step if debug: cv2.imshow("Digit", digit) cv2.waitKey(0) # return the digit to the calling function return digit
Dividing the pixel area of our mask by the area of the cell itself (Lines 106 and 107) gives us the
percentFilled value (i.e., how much our cell is “filled up” with white pixels). Given this percentage, we ensure the contour is not simply “noise” (i.e., a very small contour).
Assuming we don’t have a noisy cell, Line 115 applies the
mask to the thresholded cell. This mask is optionally shown on screen (Lines 118-120) and is finally returned to the caller. Three example results are shown in Figure 9:
Great job implementing the digit extraction pipeline!
Implementing our OpenCV Sudoku puzzle solver
At this point, we’re armed with the following components:
- Our custom SudokuNet model trained on the MNIST dataset of digits and residing on disk ready for use
- A means to extract the Sudoku puzzle board and apply a perspective transform
- A pipeline to extract digits within individual cells of the Sudoku puzzle or ignore ones that we consider to be noise
- The py-sudoku puzzle solver installed in our Python virtual environment, which saves us from having to engineer an algorithm from hand and lets us focus solely on the computer vision challenge
We are now ready to put each of the pieces together to build a working OpenCV Sudoku solver!
Open up the
solve_sudoku_puzzle.py file, and let’s complete our Sudoku solver project:
# import the necessary packages from pyimagesearch.sudoku import extract_digit from pyimagesearch.sudoku import find_puzzle from tensorflow.keras.preprocessing.image import img_to_array from tensorflow.keras.models import load_model from Sudoku import Sudoku import numpy as np import argparse import imutils import cv2 # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-m", "--model", required=True, help="path to trained digit classifier") ap.add_argument("-i", "--image", required=True, help="path to input Sudoku puzzle image") ap.add_argument("-d", "--debug", type=int, default=-1, help="whether or not we are visualizing each step of the pipeline") args = vars(ap.parse_args())
As with nearly all Python scripts, we have a selection of imports to get the party started.
These include our custom computer vision helper functions:
find_puzzle. We’ll be using TensorFlow/Keras’
load_model method to grab our trained SudokuNet model from disk and load it into memory.
Sudoku import is made possible by py-sudoku, which we’ve previously installed; at this stage, this is the most foreign import for us computer vision and deep learning nerds.
Let’s define three command line arguments:
: The path to our trained digit classifier generated while following the instructions in the “Training our Sudoku digit recognizer with Keras and TensorFlow” section
: Your path to a Sudoku puzzle photo residing on disk (for simplicity, we won’t be interacting with a camera or accepting REST API calls today, although I encourage you to do so on your own time)
: A flag indicating whether to show intermediate pipeline step debugging visualizations
As we’re now equipped with imports and our
args dictionary, let’s load both our (1) digit classifier
model and (2) input
--image from disk:
# load the digit classifier from disk print("[INFO] loading digit classifier...") model = load_model(args["model"]) # load the input image from disk and resize it print("[INFO] processing image...") image = cv2.imread(args["image"]) image = imutils.resize(image, width=600)
From there, we’ll find our puzzle and prepare to isolate the cells therein:
# find the puzzle in the image and then (puzzleImage, warped) = find_puzzle(image, debug=args["debug"] > 0) # initialize our 9x9 Sudoku board board = np.zeros((9, 9), dtype="int") # a Sudoku puzzle is a 9x9 grid (81 individual cells), so we can # infer the location of each cell by dividing the warped image # into a 9x9 grid stepX = warped.shape // 9 stepY = warped.shape // 9 # initialize a list to store the (x, y)-coordinates of each cell # location cellLocs =
- Find the Sudoku puzzle in the input
find_puzzlehelper (Line 32)
- Initialize our Sudoku board — a 9×9 array (Line 35)
- Infer the step size for each of the cells by simple division (Lines 40 and 41)
- Initialize a list to hold the (x, y)-coordinates of cell locations (Line 45)
And now, let’s begin a nested loop over rows and columns of the Sudoku board:
# loop over the grid locations for y in range(0, 9): # initialize the current list of cell locations row =  for x in range(0, 9): # compute the starting and ending (x, y)-coordinates of the # current cell startX = x * stepX startY = y * stepY endX = (x + 1) * stepX endY = (y + 1) * stepY # add the (x, y)-coordinates to our cell locations list row.append((startX, startY, endX, endY))
Accounting for every cell in the Sudoku puzzle, we loop over rows (Line 48) and columns (Line 52) in a nested fashion.
Inside, we use our step values to determine the starting and ending (x, y)-coordinates of the current cell (Lines 55-58).
Line 61 appends the coordinates as a tuple to this particular
row. Each row will have nine entries (9x 4-tuples).
Now we’re ready to crop out the
cell and recognize the
digit therein (if one is present):
# crop the cell from the warped transform image and then # extract the digit from the cell cell = warped[startY:endY, startX:endX] digit = extract_digit(cell, debug=args["debug"] > 0) # verify that the digit is not empty if digit is not None: # resize the cell to 28x28 pixels and then prepare the # cell for classification roi = cv2.resize(digit, (28, 28)) roi = roi.astype("float") / 255.0 roi = img_to_array(roi) roi = np.expand_dims(roi, axis=0) # classify the digit and update the Sudoku board with the # prediction pred = model.predict(roi).argmax(axis=1) board[y, x] = pred # add the row to our cell locations cellLocs.append(row)
Step by step, we proceed to:
cellfrom transformed image and then extract the
digit(Lines 65 and 66)
If the digit is
not None, then we know there is an actual
cell(rather than an empty space), at which point we:
- Pre-process the digit
roiin the same manner that we did for training (Lines 72-75)
- Classify the digit
roiwith SudokuNet (Line 79)
- Update the Sudoku puzzle
boardarray with the predicted value of the cell (Line 80)
- Pre-process the digit
row‘s (x, y)-coordinates to the
cellLocslist (Line 83) — the last line of our nested loop over rows and columns
And now, let’s solve the Sudoku puzzle with py-sudoku:
# construct a Sudoku puzzle from the board print("[INFO] OCR'd Sudoku board:") puzzle = Sudoku(3, 3, board=board.tolist()) puzzle.show() # solve the Sudoku puzzle print("[INFO] solving Sudoku puzzle...") solution = puzzle.solve() solution.show_full()
As you can see, first, we display the Sudoku puzzle board as it was interpreted via OCR (Lines 87 and 88).
Then, we make a call to
puzzle.solve to solve the Sudoku puzzle (Line 92). And again, this is where the py-sudoku package does the mathematical algorithm to solve our puzzle.
We go ahead and print out the solved puzzle in our terminal (Line 93)
And of course, what fun would this project be if we didn’t visualize the solution on the puzzle image itself? Let’s do that now:
# loop over the cell locations and board for (cellRow, boardRow) in zip(cellLocs, solution.board): # loop over individual cell in the row for (box, digit) in zip(cellRow, boardRow): # unpack the cell coordinates startX, startY, endX, endY = box # compute the coordinates of where the digit will be drawn # on the output puzzle image textX = int((endX - startX) * 0.33) textY = int((endY - startY) * -0.2) textX += startX textY += endY # draw the result digit on the Sudoku puzzle image cv2.putText(puzzleImage, str(digit), (textX, textY), cv2.FONT_HERSHEY_SIMPLEX, 0.9, (0, 255, 255), 2) # show the output image cv2.imshow("Sudoku Result", puzzleImage) cv2.waitKey(0)
To annotate our image with the solution numbers, we simply:
- Loop over cell locations and the board (Lines 96-98)
- Unpack cell coordinates (Line 100)
- Compute coordinates of where text annotation will be drawn (Lines 104-107)
- Draw each output digit on our puzzle board photo (Lines 110 and 111)
- Display our solved Sudoku puzzle image (Line 114) until any key is pressed (Line 115)
Let’s kick our project into gear in the next section. You’ll be very impressed with your hard work!
OpenCV Sudoku puzzle solver OCR results
We are now ready to put our OpenV Sudoku puzzle solver to the test!
Make sure you use the “Downloads” section of this tutorial to download the source code, trained digit classifier, and example Sudoku puzzle image.
From there, open up a terminal, and execute the following command:
$ python solve_sudoku_puzzle.py --model output/digit_classifier.h5 \ --image Sudoku_puzzle.jpg [INFO] loading digit classifier... [INFO] processing image... [INFO] OCR'd Sudoku board: +-------+-------+-------+ | 8 | 1 | 9 | | 5 | 8 7 | 1 | | 4 | 9 | 7 | +-------+-------+-------+ | 6 | 7 1 | 2 | | 5 8 | 6 | 1 7 | | 1 | 5 2 | 9 | +-------+-------+-------+ | 7 | 4 | 6 | | 8 | 3 9 | 4 | | 3 | 5 | 8 | +-------+-------+-------+ [INFO] solving Sudoku puzzle... --------------------------- 9x9 (3x3) SUDOKU PUZZLE Difficulty: SOLVED --------------------------- +-------+-------+-------+ | 8 7 2 | 4 1 3 | 5 6 9 | | 9 5 6 | 8 2 7 | 3 1 4 | | 1 3 4 | 6 9 5 | 7 8 2 | +-------+-------+-------+ | 4 6 9 | 7 3 1 | 8 2 5 | | 5 2 8 | 9 6 4 | 1 3 7 | | 7 1 3 | 5 8 2 | 4 9 6 | +-------+-------+-------+ | 2 9 7 | 1 4 8 | 6 5 3 | | 6 8 5 | 3 7 9 | 2 4 1 | | 3 4 1 | 2 5 6 | 9 7 8 | +-------+-------+-------+
As you can see, we have successfully solved the Sudoku puzzle using OpenCV, OCR, and deep learning!
And now, if you’re the betting type, you could challenge a friend or significant other to see who can solve 10 Sudoku puzzles the fastest on your next transcontinental airplane ride! Just don’t get caught snapping a few photos!
This tutorial was inspired by Aakash Jhawar and by Part 1 and Part 2 of his Sudoku puzzle solver.
Additionally, you’ll note that I used the same example Sudoku puzzle board that Aakash did, not out of laziness, but to demonstrate how the same puzzle can be solved with different computer vision and image processing techniques.
I really enjoyed Aakash’s articles and recommend PyImageSearch readers check them out as well (especially if you want to implement a Sudoku solver from scratch rather than using the
What's next? I recommend PyImageSearch University.
76 total classes • 90 hours of on-demand code walkthrough videos • Last updated: May 2023
★★★★★ 4.84 (128 Ratings) • 16,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 76 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 76 Certificates of Completion
- ✓ 90 hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 500+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
In this tutorial, you learned how to implement a Sudoku puzzle solver using OpenCV, deep learning, and OCR.
In order to find and locate the Sudoku puzzle board in the image, we utilized OpenCV and basic image processing techniques, including blurring, thresholding, and contour processing, just to name a few.
To actually OCR the digits on the Sudoku board, we trained a custom digit recognition model using Keras and TensorFlow.
Combining the Sudoku board locator with our digit OCR model allowed us to make quick work of solving the actual Sudoku puzzle.
If you’re interested in learning more about OCR, I’m authoring a brand-new book called Optical Character Recognition with OpenCV, Tesseract, and Python.
To learn more about the book, and order your own copy (plus pre-launch discounts and add-ons), just click here.
Otherwise, to download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
Download the Source Code and FREE 17-page Resource Guide
Enter your email address below to get a .zip of the code and a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL!
Hey, Adrian Rosebrock here, author and creator of PyImageSearch. While I love hearing from readers, a couple years ago I made the tough decision to no longer offer 1:1 help over blog post comments.
At the time I was receiving 200+ emails per day and another 100+ blog post comments. I simply did not have the time to moderate and respond to them all, and the sheer volume of requests was taking a toll on me.
Instead, my goal is to do the most good for the computer vision, deep learning, and OpenCV community at large by focusing my time on authoring high-quality blog posts, tutorials, and books/courses.
If you need help learning computer vision and deep learning, I suggest you refer to my full catalog of books and courses — they have helped tens of thousands of developers, students, and researchers just like yourself learn Computer Vision, Deep Learning, and OpenCV.
Click here to browse my full catalog.
