In last week’s blog post, you learned how to train a Convolutional Neural Network (CNN) with Keras.
Today, we’re going to take this trained Keras model and deploy it to an iPhone and iOS app using what Apple has dubbed “CoreML”, an easy-to-use machine learning framework for Apple applications:
While not directly requiring a dataset, using real-world data when running Keras models on iOS with CoreML can help to test and showcase the deployed model’s capabilities in realistic scenarios.
Roboflow has free tools for each stage of the computer vision pipeline that will streamline your workflows and supercharge your productivity.
Sign up or Log in to your Roboflow account to access state of the art dataset libaries and revolutionize your computer vision pipeline.
You can start by choosing your own datasets or using our PyimageSearch’s assorted library of useful datasets.
Bring data in any of 40+ formats to Roboflow, train using any state-of-the-art model architectures, deploy across multiple platforms (API, NVIDIA, browser, iOS, etc), and connect to applications or 3rd party tools.

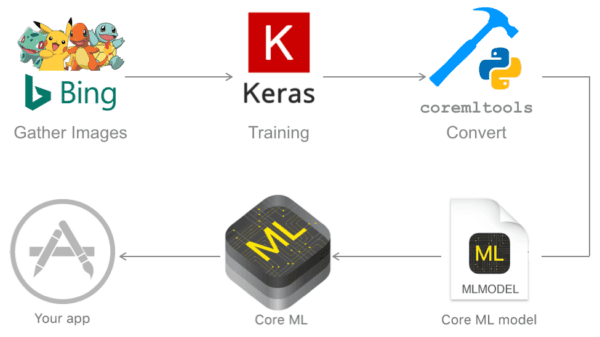

To recap, thus far in this three-part series, we have learned how to:
- (Quickly) create a deep learning image dataset
- Train a Keras + Convolutional Neural Network on our custom dataset
- Deploy our Keras model to an iPhone app with CoreML (this post)
My goal today is to show you how simple it is to deploy your Keras model to your iPhone and iOS using CoreML.
How simple you say?
To be clear, I’m not a mobile developer by any stretch of the imagination, and if I can do it, I’m confident you can do it as well.
Feel free to use the code in today’s post as a starting point for your own application.
But personally, I’m going to continue the theme of this series and build a Pokedex. A Pokedex is a device that exists in the world of Pokemon, a popular TV show, video game, and trading card series (I was/still am a huge Pokemon nerd).
Using a Pokedex you can take a picture of a Pokemon (animal-like creatures that exist in the world of Pokemon) and the Pokedex will automatically identify the creature for for you, providing useful information and statistics, such as the Pokemon’s height, weight, and any special abilities it may have.
You can see an example of a Pokedex in action at the top of this blog post, but again, feel free to swap out my Keras model for your own — the process is quite simple and straightforward as you’ll see later in this guide.
To learn how you can deploy a trained Keras model to iOS and build a deep learning iPhone app, just keep reading.
Looking for the source code to this post?
Jump Right To The Downloads SectionRunning Keras models on iOS with CoreML
Today’s blog post is broken down into four parts.
First, I’ll give some background on CoreML, including what it is and why we should use it when creating iPhone and iOS apps that utilize deep learning.
From there, we’ll write a script to convert our trained Keras model from a HDF5 file to a serialized CoreML model — it’s an extremely easy process.
Next, we’ll create a Swift project in Xcode. This step is painless for those that know their way around Xcode, but for me I had to learn as I went along using resources online (I’m not a mobile expert and it’s been a long time since I’ve needed to use Xcode).
My hope is that I’ve provided you enough detail that you don’t need to pull up a search engine unless you’re modifying the code.
At some point you’ll likely want to register for the Apple Developer Program — I’ll squeeze this in just before we test the app on our iPhone.
Finally, we’ll compile the app and deploy the Keras model to our iPhone and iOS.
What is CoreML and who is it for?
CoreML is a machine learning framework created by Apple with the goal of making machine learning app integration easy for anyone that wants to build a machine learning mobile app for iOS/iPhone.
CoreML supports Caffe, Keras, scikit-learn, and more.
For today, you just need a trained, serialized Keras model file to convert into a CoreML (Xcode compatible) file. This could be:
- Last week’s Keras Pokedex model
- Our deep learning Santa detector model from the holiday season
- Or a deep learning model you have already trained residing on your system
If you choose to use your own custom model you’ll want to check the CoreML documentation to ensure the layers utilized inside your network are supported.
From there all you need is a few short lines of code to load the model and run inferences.
Apple’s CoreML development team really couldn’t have made it any easier and they deserve some well-earned praise. Great job to you all.
I’m a computer vision + deep learning expert, not an app developer
I’ll be totally upfront and candid:
I’m not a mobile app developer (and I don’t claim to be).
Sure, I’ve built previous apps like ID My Pill and Chic Engine, but mobile development isn’t my strong suit or interest. In fact, those apps were created with PhoneGap/Cordova using HTML, JavaScript, and CSS without any Objective-C or Swift knowledge.
Instead, I’m a computer vision guy through and through. And when it comes to mobile apps, I lean heavily on easy-to-use frameworks such as PhoneGap/Cordova and (now) CoreML.
To learn the CoreML basics for this blog post, I gleaned this project from the knowledge of other expert developers on the web. Without them, I would be lost.
One app developer in particular, Mark Mansur, shared an excellent article on how to put together a deep learning + iOS app.
Much of today’s code is based on Mark’s post and project, with only a small modification or two. Thanks to Mark, this project is possible. Thanks Mark!
Making a Keras model compatible with iOS with CoreML and Python
In this section, we’re going to make use of the pip-installable coremltools package.
To install coremltools
, ensure you’re in a Python virtual environment with relevant libraries (we’re using Keras) and enter the following command:
$ pip install coremltools
From there, grab my converter script and associated files by scrolling down to the “Downloads” section of this blog post and downloading the code.
Once you’re ready, open coremlconverter.py
and follow along:
# import necessary packages from keras.models import load_model import coremltools import argparse import pickle # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-m", "--model", required=True, help="path to trained model model") ap.add_argument("-l", "--labelbin", required=True, help="path to label binarizer") args = vars(ap.parse_args())
Lines 2-5 import our required packages.
If you don’t have coremltools
installed, be sure to refer above this code block for installation instructions.
Then we parse our command line arguments. We have two arguments:
--model
: The path to the pre-trained, serialized Keras model residing on disk.--labelbin
: The path to our class label binarizer. This file is a scikit-learnLabelBinarizer
object from our previous post where we trained the CNN. If you do not have aLabelBinarizer
object you will need to modify the code to hardcode the set ofclass_labels
.
From there, let’s load the class labels and our Keras model:
# load the class labels print("[INFO] loading class labels from label binarizer") lb = pickle.loads(open(args["labelbin"], "rb").read()) class_labels = lb.classes_.tolist() print("[INFO] class labels: {}".format(class_labels)) # load the trained convolutional neural network print("[INFO] loading model...") model = load_model(args["model"])
On Lines 17-19, we load our class label pickle file, and store the class_labels
as a list.
Next, we load the trained Keras model on a single line (Line 23).
From there, let’s call the converter from coremltools
and save the resulting model to disk:
# convert the model to coreml format print("[INFO] converting model") coreml_model = coremltools.converters.keras.convert(model, input_names="image", image_input_names="image", image_scale=1/255.0, class_labels=class_labels, is_bgr=True)
Beginning on Line 27, we call the coremltools.converters.keras.convert
function. Be sure to refer to the docs for the keyword parameter explanations. We are utilizing the following parameters today:
model
: The Keras model we are converting. You can actually just put a string path + filename here, but I elected to enter the model object — the API supports both methods.input_names="image"
: Quoted from the docs: “Optional name(s) that can be given to the inputs of the Keras model. These names will be used in the interface of the Core ML models to refer to the inputs of the Keras model. If not provided, the Keras inputs are named to [input1, input2, …, inputN] in the Core ML model. When multiple inputs are present, the input feature names are in the same order as the Keras inputs.”image_input_names="image"
: Quoted from the docs: “Input names to the Keras model (a subset of the input_names parameter) that can be treated as images by Core ML. All other inputs are treated as MultiArrays (N-D Arrays).”image_scale=1/255.0
: This parameter is very important. It’s common practice to scale the pixel intensities of your images to [0, 1] prior to training your network. If you performed this type of scaling, be sure to set theimage_scale
parameter to the scale factor. Double and triple-check and scaling and preprocessing you may have done during training and ensure you reflect these preprocessing steps during the conversion process.class_labels=class_labels
: Here we supply the set of class labels our model was trained on. We obtained ourclass_labels
from ourLabelBinarizer
object. You can also hardcode theclass_labels
if you wish.is_bgr=True
: This parameter is easy to overlook (I found out the hard way). If your model was trained with BGR color channel ordering, then it is important to set this value toTrue
so that CoreML operates as intended. If your model was trained with RGB images, you can safely ignore this parameter. If your images are not BGR or RGB, refer to the docs for further instruction.
I’d also like to point out that you can add red/green/blue/gray biases via the parameters if you’re performing mean subtraction on your query image from within your iPhone app. This is required for many ImageNet models, for example. Be sure to refer to the docs if you need to perform this step. Mean subtraction is a common pre-processing step covered in Deep Learning for Computer Vision with Python.
The last step on our script is to save the output CoreML protobuf model:
# save the model to disk output = args["model"].rsplit(".", 1)[0] + ".mlmodel" print("[INFO] saving model as {}".format(output)) coreml_model.save(output)
Xcode expects this file to have the extension .mlmodel
. Therefore, I elected to handle this with code rather than a command line argument to avoid possible problems down the road.
Line 35 drops the .model
extension from the input path/filename and replaces it with .mlmodel
storing the result as output
.
From there, Line 37 saves the file to disk using the correct filename.
That’s all there is to this script. Thanks Apple CoreML developers!
Running the Keras to CoreML conversion script
Our script can be executed by passing two command line arguments:
- The path to the model
- The path to the label binarizer.
Each of those files was created in last week’s blog post but are included in this week’s download as well.
Once you’re ready, enter the following command in your terminal and review the output as needed:
$ python coremlconverter.py --model pokedex.model --labelbin lb.pickle Using TensorFlow backend. [INFO] loading class labels from label binarizer [INFO] class labels: ['background', 'bulbasaur', 'charmander', 'mewtwo', 'pikachu', 'squirtle'] [INFO] loading model... [INFO] converting model 0 : conv2d_1_input, <keras.engine.topology.InputLayer object at 0x11889dfd0> 1 : conv2d_1, <keras.layers.convolutional.Conv2D object at 0x1188a8048> 2 : activation_1, <keras.layers.core.Activation object at 0x1188a8198> ... 22 : batch_normalization_6, <keras.layers.normalization.BatchNormalization object at 0x118b0d390> 23 : dense_2, <keras.layers.core.Dense object at 0x118bac198> 24 : activation_7, <keras.layers.core.Activation object at 0x118c08f28> [INFO] saving model as pokedex.mlmodel Input name(s) and shape(s): image : (C,H,W) = (3, 96, 96) Neural Network compiler 0: 100 , name = conv2d_1, output shape : (C,H,W) = (32, 96, 96) Neural Network compiler 1: 130 , name = activation_1, output shape : (C,H,W) = (32, 96, 96) Neural Network compiler 2: 160 , name = batch_normalization_1, output shape : (C,H,W) = (32, 96, 96) ... Neural Network compiler 21: 160 , name = batch_normalization_6, output shape : (C,H,W) = (1024, 1, 1) Neural Network compiler 22: 140 , name = dense_2, output shape : (C,H,W) = (5, 1, 1) Neural Network compiler 23: 175 , name = activation_7, output shape : (C,H,W) = (5, 1, 1)
Then, list the contents of your directory:
$ ls -al total 299240 drwxr-xr-x@ 6 adrian staff 192 Apr 11 15:07 . drwxr-xr-x@ 5 adrian staff 160 Apr 11 15:06 .. -rw-r--r--@ 1 adrian staff 1222 Apr 11 11:06 coremlconverter.py -rw-r--r--@ 1 adrian staff 34715389 Apr 11 11:07 pokedex.mlmodel -rw-r--r--@ 1 adrian staff 104214208 Mar 28 06:45 pokedex.model drwxr-xr-x@ 4 adrian staff 128 Apr 10 08:36 xcode
…and you’ll see pokedex.mlmodel
which can be imported right into Xcode (we’ll proceed to do this in the next section in Step 4). Interestingly, you can see that the file is smaller than the original Keras model which likely means CoreML stripped any optimizer state status during the conversion process.
Note: In an effort to allow for my Pokedex app to recognize when the camera is aimed at an “everyday object” and not a Pokemon (with a goal of eliminating false positives of our Pokemon friends), I added a class called “background”. I then retrained the model using the exact code from last week. The background class consisted of 250 images randomly sampled from the UKBench dataset residing on my system.
Creating a Swift + CoreML deep learning project in Xcode
Step 0: Prepare your development environment
The zeroth step for this section is to download and install Xcode on your Macintosh computer. If your version of Xcode is not at least version 9.0, then you’ll need to upgrade. At some point my Xcode insisted that I upgrade to version 9.3 to support my iPhone iOS 11.3.
Warning: Upgrading Xcode can break other development software + environments on your machine (such as a Python virtual environment with OpenCV installed). Proceed with caution or use a service such as MacInCloud so you do not break your local development environment.
Once you’ve installed/checked for the proper version of XCode, you’ll be ready to continue on.
Step 1: Create the project
For organization purposed, I opted to create a folder called xcode
in my home directory to house all of my Xcode projects. I created the following directory: ~/adrian/xcode
.

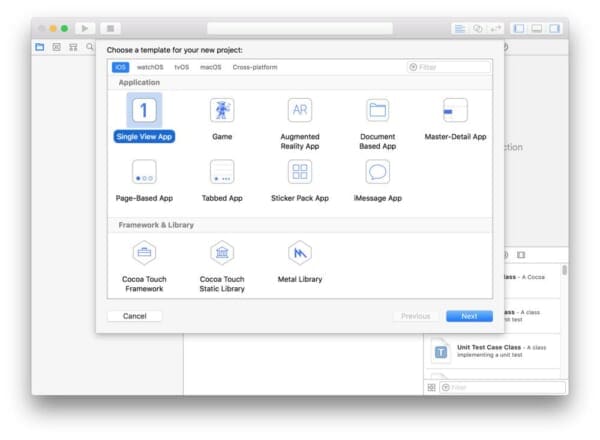

From there, launch Xcode and create a “Single View App” as shown in Figure 3.

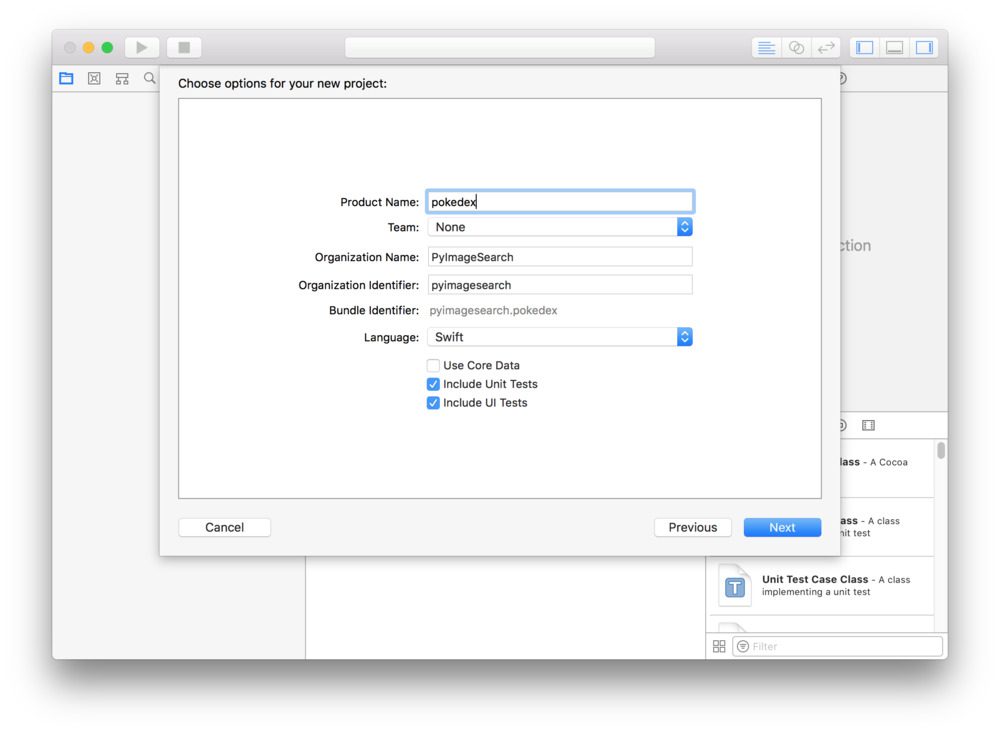

Next, you can name your project whatever you’d like — I named mine “pokedex” as shown below.
Step 2: Kill off the storyboard
A storyboard is a view controller (think Model/View/Controller architecture). We’re going to get rid of the view controller for today’s simple app. Our view will be created programmatically instead.

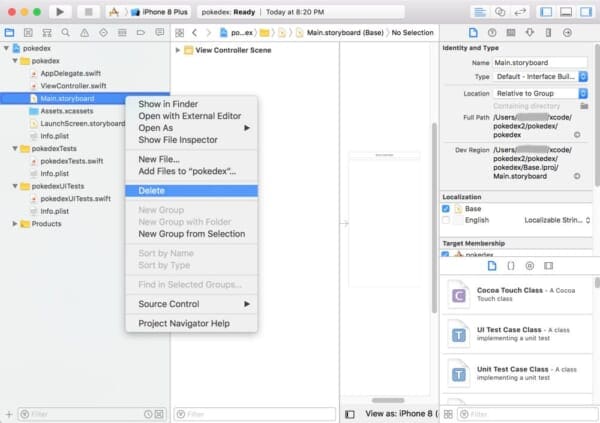

Go ahead and delete Main.storyboard
from the file manager on the left as in Figure 5.
Then, click the high level app name in the tree (“pokedex” in my case) and scroll to “Deployment info”. Erase the contents of the text box labeled “Main Interface”
Step 3: Add an element to info.plist
Our app accesses the camera, so we need to prepare an authorization message. This can easily be done in info.plist.

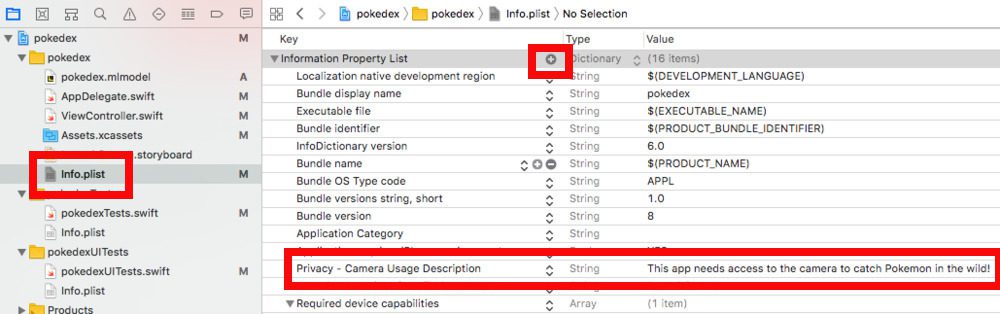

Click the “+” button as is shown in Figure 7 and add the Key + Value. The Key must match exactly to “Privacy – Camera Usage Description”, but the value can be any message you’d like.
Step 4: Create the app window and root view controller
We still need a view even though we’ve gotten rid of the storyboard. For this step, you’ll want to copy and paste the following code into AppDelegate.swift
. The function is already defined — you just need to paste the body from below:
func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplicationLaunchOptionsKey: Any]?) -> Bool { // Override point for customization after application launch. // create the user interface window and make it visible window = UIWindow() window?.makeKeyAndVisible() // create the view controller and root view controller let vc = ViewController() window?.rootViewController = vc // return true upon success return true }

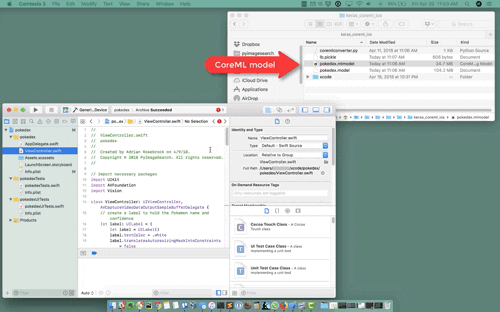

Step 5: Drag the CoreML model file into Xcode
Using Finder on your Mac, navigate to the CoreML .mlmodel
file that you created above (or just grab my pokedex.mlmodel
from the “Downloads” section of this blog post).
Then, drag and drop it into the project tree. It will import automatically and create the relative Swift classes:
Step 6: Build the ViewController
Open ViewController.swift
and import our required packages/frameworks:
// import necessary packages import UIKit import AVFoundation import Vision
Lines 10-12 import three required packages for this project.
The UIKit
package is a common framework for developing the view of an iOS application and allows for text, buttons, table views, and navigation.
The AVFoundation
framework is for audiovisual media on iOS — we’ll employ it to capture from the camera.
We’re going to use the Vision
framework for our custom CoreML model classification, but the framework allows for much more than that. With the Vision framework, you can perform face detection, facial landmark detection, barcode recognition, feature tracking, and more.
Now that we’ve imported the relevant frameworks, let’s create the ViewController
class and begin with a text label:
class ViewController: UIViewController, AVCaptureVideoDataOutputSampleBufferDelegate { // create a label to hold the Pokemon name and confidence let label: UILabel = { let label = UILabel() label.textColor = .white label.translatesAutoresizingMaskIntoConstraints = false label.text = "Label" label.font = label.font.withSize(30) return label }()
On Line 14 the ViewController
class is defined while inheriting UIViewController
and AVCaptureVideoDataOutputSampleBufferDelegate
. That’s a mouthful and really brings be back to my days of coding in Java!
In this class, we’re first going to define a UILabel
which will hold our class label and associated probability percentage text. Lines 16-23 handle this step.
Next, we’re going to override the viewDidLoad
function:
override func viewDidLoad() { // call the parent function super.viewDidLoad() // establish the capture session and add the label setupCaptureSession() view.addSubview(label) setupLabel() }
The viewDidLoad
function is called after the view has been loaded. For view controllers created via code, this is after loadView
.
On Line 25 we use the override
keyword so that the compiler knows that we’re overriding the inherited class function.
Since we’re overriding the function, we need to call the super/parent function as is shown on Line 27.
From there, we establish the capture session (Line 30) followed by adding the label
as a subview (Lines 31 and 32).
I’m including this next function as a matter of completeness; however, we’re not actually going to make any changes to it:
override func didReceiveMemoryWarning() { // call the parent function super.didReceiveMemoryWarning() // Dispose of any resources that can be recreated. }
If you are experiencing memory warnings when testing your app, you can override
the didReceiveMemoryWarning
function with additional actions. We’re going to leave this as-is and move on.
Let’s try to set up camera capture access using iOS and Swift:
func setupCaptureSession() { // create a new capture session let captureSession = AVCaptureSession() // find the available cameras let availableDevices = AVCaptureDevice.DiscoverySession(deviceTypes: [.builtInWideAngleCamera], mediaType: AVMediaType.video, position: .back).devices do { // select a camera if let captureDevice = availableDevices.first { captureSession.addInput(try AVCaptureDeviceInput(device: captureDevice)) } } catch { // print an error if the camera is not available print(error.localizedDescription) } // setup the video output to the screen and add output to our capture session let captureOutput = AVCaptureVideoDataOutput() captureSession.addOutput(captureOutput) let previewLayer = AVCaptureVideoPreviewLayer(session: captureSession) previewLayer.frame = view.frame view.layer.addSublayer(previewLayer) // buffer the video and start the capture session captureOutput.setSampleBufferDelegate(self, queue: DispatchQueue(label: "videoQueue")) captureSession.startRunning() }
Now remember — I’m not an expert at iOS development, but the codeblock above is relatively easy to follow.
First, we need to create a capture session (Line 44) and query for a camera + check for any errors (Lines 47-57).
From there, we output the feed to the screen in a previewLayer
(Lines 60-64) and start the session (Lines 67 and 68).
Let’s classify the frame and draw the label text on the screen:
func captureOutput(_ output: AVCaptureOutput, didOutput sampleBuffer: CMSampleBuffer, from connection: AVCaptureConnection) { // load our CoreML Pokedex model guard let model = try? VNCoreMLModel(for: pokedex().model) else { return } // run an inference with CoreML let request = VNCoreMLRequest(model: model) { (finishedRequest, error) in // grab the inference results guard let results = finishedRequest.results as? [VNClassificationObservation] else { return } // grab the highest confidence result guard let Observation = results.first else { return } // create the label text components let predclass = "\(Observation.identifier)" let predconfidence = String(format: "%.02f%", Observation.confidence * 100) // set the label text DispatchQueue.main.async(execute: { self.label.text = "\(predclass) \(predconfidence)" }) } // create a Core Video pixel buffer which is an image buffer that holds pixels in main memory // Applications generating frames, compressing or decompressing video, or using Core Image // can all make use of Core Video pixel buffers guard let pixelBuffer: CVPixelBuffer = CMSampleBufferGetImageBuffer(sampleBuffer) else { return } // execute the request try? VNImageRequestHandler(cvPixelBuffer: pixelBuffer, options: [:]).perform([request]) }
Nothing magic is happening in this block — it may just be a little unfamiliar to Python developers.
We load the CoreML model on Line 73.
Then, we classify a given frame and grab the results on Lines 76-79. We can then grab the first predicted result from the CoreML model, storing it as an object named Observation
(Line 82).
The predicted class label can be extracted via Observation.identifier
(Line 85). We also format the confidence to show only two places past the decimal (Line 86). We set the label
text with these two components (Lines 89-91).
And finally, we establish a video pixel buffer and execute the request (Lines 97-100).
We’ve reached the final function where we’ll establish a location on the screen for the label:
func setupLabel() { // constrain the label in the center label.centerXAnchor.constraint(equalTo: view.centerXAnchor).isActive = true // constrain the the label to 50 pixels from the bottom label.bottomAnchor.constraint(equalTo: view.bottomAnchor, constant: -50).isActive = true } }
The two settings in setupLabel
speak for themselves — essentially we constrain the label to the bottom center.
Don’t forget the final bracket to mark the end of the ViewController class!
It’s easy to make minor syntax errors if you aren’t used to Swift, so be sure to use the “Downloads” section of this blog post to grab the entire project.
Registering for the Apple Developer Program
In order to deploy the project to your iPhone, first enroll in the Apple Developer Program.
After you’re enrolled, accept the certificates on your iPhone. I remember this being very easy somewhere in settings but I don’t recall where.
It is a nearly instant process to enroll, wait for Xcode and your iPhone to sync, and then accept certificates. I ended up paying the $100 but I later found out that it’s possible to create a free developer account via this blog post. Don’t make my mistake if you want to save some funds (and potentially use those extra funds to purchase a copy of Deep Learning for Computer Vision with Python).
Testing our Keras + CoreML deep learning app on the iPhone
Now we’re ready to compile and test our Keras + iOS/iPhone deep learning app!
I recommend first deploying your app via USB. From there if you want to share it with others, you could take advantage of TestFlight before publishing in the App Store.
We’re going to use USB today.
First, plug in your iPhone to your Mac via USB. You likely have to unlock your iPhone with your pin and when iTunes prompts you to trust the device, you should.
From there, in the Xcode menubar, select Product > Destination > Adrian's iPhone
.
Then to build and run all in one swoop, select Product > Run
. If you have any build errors, you’ll need to resolve them and try again.
If you are successful, the app will be installed and opened automatically on your iPhone.
At this point, you can go find Pokemon in the wild (playing cards, stuffed Pokemon, or action figures). A big shoutout to GameStop, Target, and Wal-mart where I caught some Pokemon critters. You might get lucky and find a whole box for a few bucks on CraigsList or eBay. If you don’t find any, then load some photos/illustrations on your computer and aim your iPhone at your screen.
Here’s my CoreML app in action:
To watch the full video on YouTube, just press play on the video here:
It’s definitely a simple app, but I’m quite proud that I have this on my phone to show my friends, fellow Pokemon nerds, and PyImageSearch readers.
I’d like to thank Mark Mansur for his inspiring, detailed this blog post which made today’s tutorial possible.
If I had had more time, I may have placed a button on the UI so that I could take snapshots of the Pokemon I encounter in the wild. I’ll leave this to the Swift + iOS experts — with practice and determination, it could be you!
Note: Screenshots are easy on iPhone/iOS. I assume you already know how to take them. If not, Google it. Screencast videos are relatively easy too. Just add the feature via Settings > Control Center > Customize Controls
and then go back to the app and swipe up from the bottom (further details here).
Compatibility Note: This app was tested with iOS 11.3 on an iPhone 6s, iPhone 7, and iPhone X. I used xCode 9.3 to build the app.
What about Android? Does CoreML work on Android?
CoreML is an Apple toolkit and is meant only for iPhone, iOS, and other Apple applications. CoreML does not work on Android.
I do not have any experience developing Android apps and I’ve never used Android Studio.
I also do not have an Android phone.
But if there is enough interest in the comments section I will consider borrowing an Android phone from a friend and trying to deploy a Keras model to it.
What's next? We recommend PyImageSearch University.
84 total classes • 114+ hours of on-demand code walkthrough videos • Last updated: February 2024
★★★★★ 4.84 (128 Ratings) • 16,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 86 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 86 Certificates of Completion
- ✓ 115+ hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 540+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
Summary
In today’s blog post we saw that it’s incredibly easy to leverage the CoreML framework to take (trained) Keras models and deploy them to the iPhone and iOS.
I hope you see the value in Apple’s CoreML framework — it is quite impressive and a huge testament to the Apple developers and machine learning engineers for creating a tool that can ingest a deep neural network (that could be trained via a variety of popular deep learning libraries) and output a model that is nearly drag-and-drop compatible with the iPhone and iOS.
We used Swift for today’s iPhone app. While Swift isn’t as straightforward as Python (take that statement with a grain of salt because I’m a bit biased), given how easy CoreML is, you’ll be able to take this project and build your own, polished apps in no time.
Now, I have a challenge for you.
I used Pokemon for this series of tutorials as it was one of my favorite childhood pastimes and brought back some wonderful nostalgic memories.
Now it’s your turn to let your imagination run wild.
What deep learning vision app would you like to build? Do you want to recognize the make and model of cars, build an animal species classifier, detect fruits and vegetables? Something else?
If so, you’ll want to start by taking a look at my book, Deep Learning for Computer Vision with Python.
Inside my book you will:
- Learn the foundations of machine learning and deep learning in an accessible manner that balances both theory and implementation
- Study advanced deep learning techniques, including object detection, multi-GPU training, transfer learning, and Generative Adversarial Networks (GANs)
- Replicate the results of state-of-the-art papers, including ResNet, SqueezeNet, VGGNet, and others on the 1.2 million ImageNet dataset
I have no doubt in my mind that you’ll be able to train your own custom deep neural networks using my book.
Be sure to take a look (and while you’re at it, don’t forget to grab your free table of contents + sample chapters PDF of the book).
From there, using both (1) your newly trained deep learning model and (2) today’s lesson, you can undoubtedly create a deep learning + Keras iPhone app and deploy it to the app store (and perhaps even make some money off the app as well, if you’re so inclined).
I’ll be back next week with a special bonus “part four” to this tutorial. I’m so excited about it that I might even drop some hints on Twitter leading up to Monday. Stay tuned!
Be sure that you don’t miss out on my next blog post (and more to come) by entering your email in the form below.
Download the Source Code and FREE 17-page Resource Guide
Enter your email address below to get a .zip of the code and a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL!
Manuel
Hi Adrian, I’d be very interested in learning how to deploy a Keras model in Android.
I’m also very curious about tensorflow.js!
This is a great series, very practical and surely I’ll use it as a starting point in the near future.
Adrian Rosebrock
Thanks Manuel!
Gilad
Hi Adrian – learned a lot from this series.
I also would like to learn how to run keras on android.
Thx,
Gilad
Adrian Rosebrock
Thanks Gilad!
Alexander
Thanks for the Post. But I have a question. How can we handle the conversion of relatively complex models (like RetinaNet, for example) that contains custom objects and custom layers?
Adrian Rosebrock
Unfortunately you cannot, at least not easily. Keep in mind that these models need to run using Apple’s CoreML framework. If CoreML does not have an equivalent layer implementation it will not be able to handle the conversion. The solution would ultimately be implementing a custom layer type for CoreML which is not something I have done and cannot really comment on the process.
Tony Holdroyd
I only have an Android phone, I would love to be able to deploy your app to it.
I hope enough people agree!
Adrian Rosebrock
Thanks for the comment, Tony 🙂
Shorav Suriyal
I have done this on Andorid
Kejitan
Hello Adrian, Great tutorial as is a custom 🙂 . Would love to have the application run on Android.
Adrian Rosebrock
Thanks Kejitan, I will keep that in mind. If I can get a friend to lend me an Android device I might be able to do it.
Eswar Sai Krishna G
Please do for Android also!
Adrian Rosebrock
If I can do it, I will!
Nadav
Hello Adrian, thanks for the great tutorial. It would be great to have a tutorial about keras for android!
Adrian Rosebrock
Thanks Nadav, I’ll try to do Android as well. It might take a few weeks though. I have quite literally zero experience in Android and I do not own an Android device.
Lúcio Corrêa
Hi Adrian, thank you for the excellent material, as always. It’s not a replacement for CoreML, but for Android you can use Tensorflow Lite.
Adrian Rosebrock
Thanks, Lúcio. I’ve heard of TensorFlow Lite but don’t know much about it. I’ll have to look into it. Thanks again!
AMAS
Hi Adrian, thanks for sharing the great work, really interesting.
By the way, can I use .pb model to make such IOS App?
Adrian Rosebrock
I haven’t tried it but I heard that Google has a tool for CoreML and TensorFlow Lite that you may want to look into.
Charles Freitas
Very good Adrian Rosebrock. Yours posts are very practical and didaticals, I learn much with all of them. Actually I’m building an app for recognizer from foods, it’s my thesis from master’s degree. Man, I would like much of see this implemetation in android, or at least how I can do this. Thanks so much! Hugs my friend.
Adrian Rosebrock
Thanks Charles 🙂 If I can get my hands on an Android I’ll try to get the model to run on it.
Akshay
Really great series. Your blog is the go-to place for practical computer vision. Please make a tutorial for Android devices.
Adrian Rosebrock
Thank you for the kind words, Akshay. If I can get my hands on an Android device I will figure it out 🙂
NEBYU ZEKARIYAS
HI Ardrian Thanks for This Great Post but please try to do the android version of this post please please..
Adrian Rosebrock
Hey Nebyu — do you have an Android device that you like to use? I’m looking for recommendations.
Laszlo
An Android version as well, please! 🙂
Adrian Rosebrock
Thanks Laszlo. Fingers crossed that I can get a friend to lend me their Android 😉
Navendu Sinha
Great project Adrian.
Adrian Rosebrock
Thanks Navendu, I really appreciate it!
Hamza Rashid
Android too please!
Adrian Rosebrock
Thanks Hamza 🙂
Michael
+1 for Android version! I’m currently playing around with tensorflow-lite on Android so a guide on how you made your app run on Android would be great 🙂
Adrian Rosebrock
Thanks Michael. I’ll admit that I am not an Android user so I don’t have much experience there. But I hope that the very likely future guide will help in some way. It may not be for another month or so until I can do it though.
Abkul
Thanks a lot for your always EXCELLENT and CLEAR tutorial.
I am joining others to request you to do Android version.
Please comment on Android application development using TensorFLow Lite.
Adrian Rosebrock
Thanks Abkul.
Jose Luis V.
Hello Adrian, thank you for this series of tutorials. I would like to have this app in my Android and if it were not possible, maybe it is in a raspberry
Adrian Rosebrock
Thanks Jose. Let me see if I can get a hold of an Android. As for the Raspberry Pi… 😉
Akash
Hi Adrian! Thanks again for another superb tutorial!
I would love to see this Android as well
Adrian Rosebrock
Thanks, Akash!
Alex
Hi Adrian, how can I use this model for object detection?
Adrian Rosebrock
You cannot use networks trained for classification to perform object detection, the only exception being if you want to use an image pyramid + sliding window. Instead, you would want to train a dedicated deep learning object detection framework such as Faster R-CNN, SSD, or YOLO. I cover all of these methods, including the image pyramid + sliding window technique inside my book, Deep Learning for Computer Vision with Python.
Ryan
Hey Adrian!
I’m in the process of packaging an image recognition model as part of my Master’s Thesis and am considering of deploying to mobile. Therefore I have am evaluating the best tech stack for my purposes.
In the Medium Blog Post written by the developer of the famous Not Hotdog App, the author used React Native so that his model (using pre-trained Keras implementation of Google’ sMobileNet) could be deployed on both Android and iOS: https://medium.com/@timanglade/how-hbos-silicon-valley-built-not-hotdog-with-mobile-tensorflow-keras-react-native-ef03260747f3.
In the post the author describes his reasons for choosing the React Native approach:
“Instead of using TensorFlow on iOS, we looked at using Apple’s built-in deep learning libraries instead (BNNS, MPSCNN and later on, CoreML). We would have designed the network in Keras, trained it with TensorFlow, exported all the weight values, re-implemented the network with BNNS or MPSCNN (or imported it via CoreML), and loaded the parameters into that new implementation. However, the biggest obstacle was that these new Apple libraries are only available on iOS 10+, and we wanted to support older versions of iOS. As iOS 10+ adoption and these frameworks continue to improve, there may not be a case for using TensorFlow on device in the near future.”
What would you say main tradeoffs are with choosing between the two options?
Thanks!
See you at PyImageConf!
-Ryan
Adrian Rosebrock
Hey Ryan — as I mention in the blog post, I’m not an expert in mobile development by any means. I cannot really comment on the tradeoffs between using React Native vs. the standard Apple libraries. I’ve heard really great things about React Native but don’t have a ton of experience in it. My general understanding is that if you want pure speed, implementing with the native libraries will likely give you that. If you want portability, Reactive Native. Other than that, I can’t really comment. Sorry I couldn’t be of more help here, but as I said in the post, I’m not a mobile developer nor do I claim to be.
Cesar Flores
Very good post….as always…..
Hoping to see this in Android…..
Thanks…
Adrian Rosebrock
Thank you Cesar, if I can get my hands on an Android I will consider it.
moshel
Thanks Adrian for the really interesting series. Would also be interested in Android, specifically if you can get it to work on tensorflow lite, which is Google “answer” to coreML.
I have managed (with lots of problems) to get tensorflow lite to work on rpi but apparently MobileNetSSD is still unsupported or something (there is a java wrapper that is supposed to handle the unsupported layers?). As my main goal is object detection, not sure this will be helpful for me but still, its a step forward!
Adrian Rosebrock
Thanks Moshel. I haven’t done much work with TensorFlow Lite so unfortunately I do not have any suggestions for the troubles. If I end up going the Android route I may give the MobileNet SSD a try.
Elizabeth
Thanks for the tutorial, I will try certainly it soon, but I have the opposite problem – I don’t have iPhone, but maybe I will be able to borrow one from my friend… I would love to see the variant for Android phone, too. Maybe using the object detector instead of the classification one, for example, the drowsiness detection. What do you think about it? 😉
Adrian Rosebrock
If I can get my hands on an Android device I will consider an Android version of this tutorial.
Caleb
+1 for Android
Chris
Love this series of posts. Really enjoy trying things like this that can be easily applied to real-world uses/or easily demo something useful.
Glad you did this for iOS, as I’m a hardcore Apple user like you. If you’d done it the other way around, I’d be as eager as all the Android guys are now!
Seriously tempted by your book hardcopy pack, but may wait until you’ve written your updated one. Really looking forward to it!
Love your work – I’m definitely wanting to find more reasons to do CV!
Adrian Rosebrock
Hey Chris, thanks for the comment. I’m happy to hear you’ve been enjoying the blog and the posts.
As for my book, which are you referring to? Both Practical Python and OpenCV and Deep Learning for Computer Vision with Python are available in hardcopy. Both are also fully updated.
Frank Doepke
Hi Adrian,
A small advise on how to use Vision and CoreML a bit more effective in your example: You want to create the VNCoreMLModel and VNCoreMLModelRequest only once outside the captureOutput and then reuse the request for each frame. Both are not super expansive operations but you want to keep the work on the captureOutput to a minimum to maintain frame rate.
Adrian Rosebrock
Thanks Frank! That is helpful, thank you for sharing.
MImranKhan
please please make a tutorial on android and keras like you made on ios please
Adrian Rosebrock
It will be in the works soon if I get my hands on an Android device!
Dave Xanatos
PS., I tried the system’s advice and changed the line to read:
model.compile(loss=”sparse_categorical_crossentropy”, optimizer=opt, metrics=[“accuracy”])
AND… it’s running through the epochs now, but all loss AND all acc are reporting 0.0000e+00, so I suspect I screwed something up in royal fashion 🙂
Thanks,
Dave
Cho
Thanks Adrian for your great post. I am trying to build the post using pre-trained VGG16-Imagenet model. But I failed converting ‘mlmodel.’ Can I ask how to do this?
Adrian Rosebrock
Hi Cho — I would suggest posting on the official coremltools GitHub repo if you ran into any issues converting the model.
Daniel Jordan
Hi Adrian,
I have may be a stupid questions but I could not be figured it out why. I follow your document and my own keras model I test with very good results. My model should use cars to predict what kind of car it is and on the server the results are great.
When I convert it to a XCode mlmodel it works sometimes but let say more than not so good.
I tried it again with your model or others model I found on the internet. Always the mlmodel gives not a good result. like I was hoping.
Any Idea why the mlmodel is so much difference?
Adrian Rosebrock
Hey Daniel, thanks for the comment. To be honest I’m not sure why your mlmodel wouldn’t be performing as well as the original Keras model. My guess is that you are doing some additional image preprocessing prior to classification in your Python code but this same preprocessing is not done for the mlmodel.
Marcus Oliveira
Hi Daniel, I am Having the same problem here, keras model performs graet but the coreml is far worst, do you found any solution?
Heng Sokvisal
Hi Adrian . I wonder how can the model know that, the image is not the pokemon but a background? I have follow your series but my results is , even if there is no pokemon in the photo , it still predict and gussing the pokemon name. I don’t know why.
Adrian Rosebrock
For this post we trained the model on a “background” class consisting of random images that do not contain Pokemon. In the previous post in the series there was not a background class but I added one in this post since we were using video and it would be confusing if the model was predicting a Pokemon (even with very low probability) for every frame in the video. Instead, the model was retrained.
Nishant Asthana
HI Adrian – thanks for the tutorial. When I run the coremlconverter.py command
I am getting the folllowing error and I have searched Stackoverflow but not sure how to resolve it
ValueError: unsupported pickle protocol: 3
I am usign the downloaded version of the code. Can you help?
Adrian Rosebrock
Re-train the model using your version of Python, then export it.
Ali Nehrani
Hi Adrian,
I started to convert my Keras(==2.2.2) model into .mlmodel but I got the following error:
>> from keras_applications.mobilenet import relu6
>> ImportError: cannot import name ‘relu6’
related to relu6. I tried to solve it using GitHub comments and etc. but it is not straightforward. Can you modify your code for Keras 2.2.2 or help us to find an easier way to resolve the issue?
Thank you
Adrian Rosebrock
This is actually an known problem with CoreML tools. Refer to the link for a solution.
Kevin
Hi, Adrain
Could you please specify what version of keras and tensorflow you have when you ran the ml conversion script code. I keep running into errors like these,
raise TypeError(‘Keyword argument not understood:’, kwarg)
TypeError: (‘Keyword argument not understood:’, u’data_format’)
after some research, it seems like it has to do with a compatibility issue between keras and tensorflow and I just can’t figure out which versions of each library I should have.
Can anyone else helo too?
Adrian Rosebrock
Hey Kevin, I’m on a different machine than my main development system so I unfortunately do not have access to the exact Keras and TensorFlow versions right now. That said, which script and which line is throwing that error?
clara
Hi Adrian, I seem to encounter the same problem than Kevin,
It is impossible to convert the Keras model to coreml even tho I downgrade/upgrade to different version of keras and tensorflow..
I’m curently running with keras 2.3.1 and tensorflow 2
Thank you for your help and time!!
`Best,
Clara
Adrian Rosebrock
The short answer is that you cannot use TF 2.0 with CoreML. Apple hasn’t updated their library to use TF 2.0 yet. In the meantime use Keras and TF 1.x.
shreethaanu R.K
error: argument -m/–model is required
I’m getting this issue !! Someone help me to set this up
Adrian Rosebrock
It’s okay if you are new to command line arguments, but make sure you read up on them before you try to run the code in my tutorials.
David Ramírez
Hi Adrian,
I’m trying to follow your tutorial with the pokedex model, one that I have trained myself and the mobilenet one, I’m not an app developer but a data scientist. I have read the possible errors and I understand that it has to be with this line of code:
guard let model = try? VNCoreMLModel(for: Resnet50().model) else { return }
I’m reading about the new coreml version, coreml 2, and I understand that I have to call the model in a different way, I just don’t know how. I don’t know if you could possibly guide me through this as I will continue reading online and try to solve this. Thanks a lot.
David.
Pats Chen
Hey Adrian, I’m a Chinese reader who just found this amazing article on some Chinese website, and they’ve translated the whole article into Chinese using translation apps. The problem is, I can’t find your name on their site so I have to google it (‘keras coreml pokedex’) to get here. I feel very sorry that there are Chinese people stealing your article and deleting your name from it, I just want to let you know that this really happened, and maybe you should do something to stop them from doing so. If you need, say Chinese translation, I would be happy to provide. This is their website: http://www.atyun.com/21026.html . I really like your article, and I am looking forward to read more of your other articles.
Adrian Rosebrock
Thank you for letting me know, Pats. I really appreciate that 🙂
Cristian Stan
Hi Adrian, I’d be very interested in learning how to deploy a Keras model in Android and even on Windows Mobile (I know it seem to be dead).
Adrian Rosebrock
Thanks Cristian. I’ll consider covering Android in a future post but to be honest I don’t think I’ll be covering Windows mobile.
Shan
Hi Adrian,
Thanks for such a great tutorial! I am just wondering if I can learn how to hard code class labels through your book without obtaining class_labels from LabelBinarizer object. If you may, can you help me get started for this task ?
Thanks,
Shan
Adrian Rosebrock
Sort the class labels via their name, then you can hardcode.
Mohamed
Hi Adrian,
thank you for another great lesson
my question is how did you install both TensorFlow and coremltools in the same environment
because coremltools is supported only by python 2, so I made a virtual env with python 2.7 for the project and installed coremltools, but then I had problems installing TensorFlow, so I figured out a way to install it using Anaconda, but I still receive errors.
thank you
clara
Hi adrian! 🙂
is this code already been update for tensorflow 2.0 ?
I can’t convert my keras model to coreml .. I think it could be because of the version install in my environment
best,
Clara
Adrian Rosebrock
Unfortunately CoreML does not yet support TensorFlow 2.0. You will need to use TensorFlow 1.x.
