In the rest of this blog post I’ll show you how to detect barcodes in images using nothing but Python and OpenCV.
Detecting Barcodes in Images using Python and OpenCV
The goal of this blog post is to demonstrate a basic implementation of barcode detection using computer vision and image processing techniques. My implementation of the algorithm is originally based loosely on this StackOverflow question. I have gone through the code and provided some updates and improvements to the original algorithm.
It’s important to note that this algorithm will not work for all barcodes, but it should give you the basic intuition as to what types of techniques you should be applying.
For this example, we will be detecting the barcode in the following image:
Let’s go ahead and start writing some code. Open up a new file, name it detect_barcode.py , and let’s get coding:
# import the necessary packages
import numpy as np
import argparse
import imutils
import cv2
# construct the argument parse and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-i", "--image", required = True,
help = "path to the image file")
args = vars(ap.parse_args())
The first thing we’ll do is import the packages we’ll need. We’ll utilize NumPy for numeric processing, argparse for parsing command line arguments, and cv2 for our OpenCV bindings.
Then we’ll setup our command line arguments. We need just a single switch here, --image , which is the path to our image that contains a barcode that we want to detect.
Now, time for some actual image processing:
# load the image and convert it to grayscale image = cv2.imread(args["image"]) gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY) # compute the Scharr gradient magnitude representation of the images # in both the x and y direction using OpenCV 2.4 ddepth = cv2.cv.CV_32F if imutils.is_cv2() else cv2.CV_32F gradX = cv2.Sobel(gray, ddepth=ddepth, dx=1, dy=0, ksize=-1) gradY = cv2.Sobel(gray, ddepth=ddepth, dx=0, dy=1, ksize=-1) # subtract the y-gradient from the x-gradient gradient = cv2.subtract(gradX, gradY) gradient = cv2.convertScaleAbs(gradient)
On Lines 14 and 15 we load our image off disk and convert it to grayscale.
Then, we use the Scharr operator (specified using ksize = -1 ) to construct the gradient magnitude representation of the grayscale image in the horizontal and vertical directions on Lines 19-21.
From there, we subtract the y-gradient of the Scharr operator from the x-gradient of the Scharr operator on Lines 24 and 25. By performing this subtraction we are left with regions of the image that have high horizontal gradients and low vertical gradients.

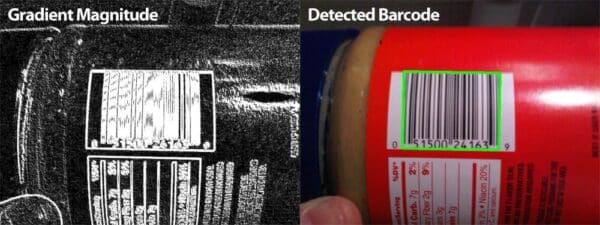

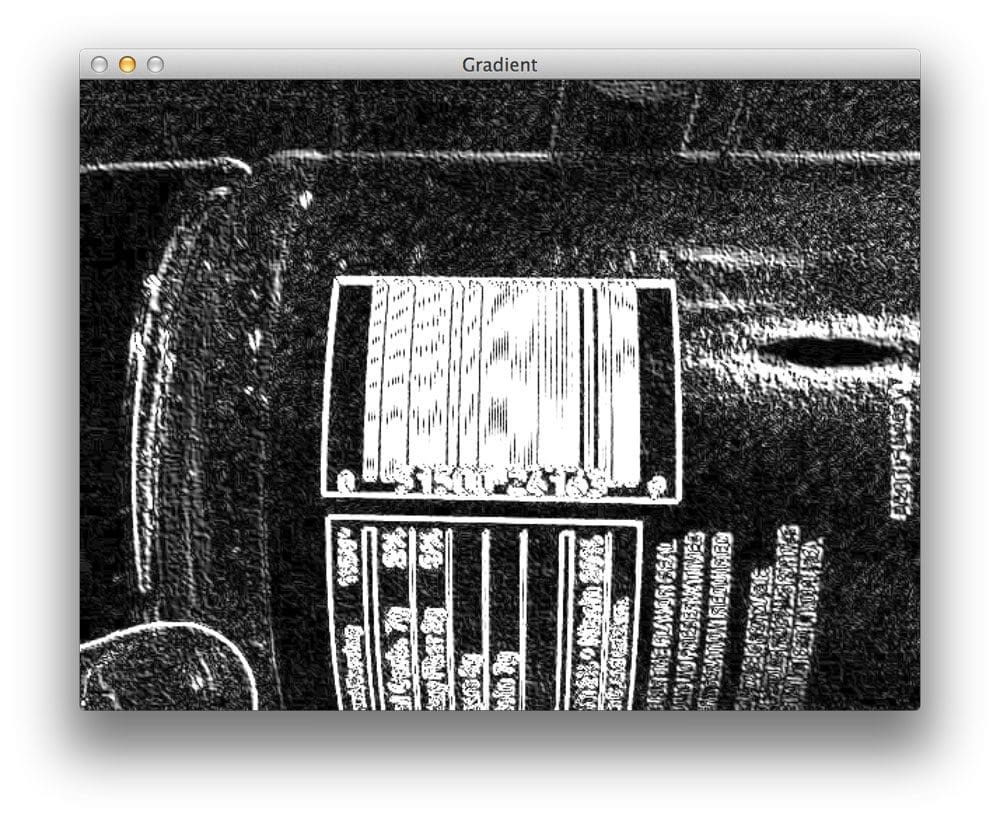

Our gradient representation of our original image above looks like:
Notice how the barcoded region of the image has been detected by our gradient operations. The next steps will be to filter out the noise in the image and focus solely on the barcode region.
# blur and threshold the image blurred = cv2.blur(gradient, (9, 9)) (_, thresh) = cv2.threshold(blurred, 225, 255, cv2.THRESH_BINARY)
The first thing we’ll do is apply an average blur on Line 28 to the gradient image using a 9 x 9 kernel. This will help smooth out high frequency noise in the gradient representation of the image.
We’ll then threshold the blurred image on Line 29. Any pixel in the gradient image that is not greater than 225 is set to 0 (black). Otherwise, the pixel is set to 255 (white).
The output of the blurring and thresholding looks like this:
However, as you can see in the threshold image above, there are gaps between the vertical bars of the barcode. In order to close these gaps and make it easier for our algorithm to detect the “blob”-like region of the barcode, we’ll need to perform some basic morphological operations:
# construct a closing kernel and apply it to the thresholded image kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (21, 7)) closed = cv2.morphologyEx(thresh, cv2.MORPH_CLOSE, kernel)
We’ll start by constructing a rectangular kernel using the cv2.getStructuringElement on Line 32. This kernel has a width that is larger than the height, thus allowing us to close the gaps between vertical stripes of the barcode.
We then perform our morphological operation on Line 33 by applying our kernel to our thresholded image, thus attempting to close the the gaps between the bars.

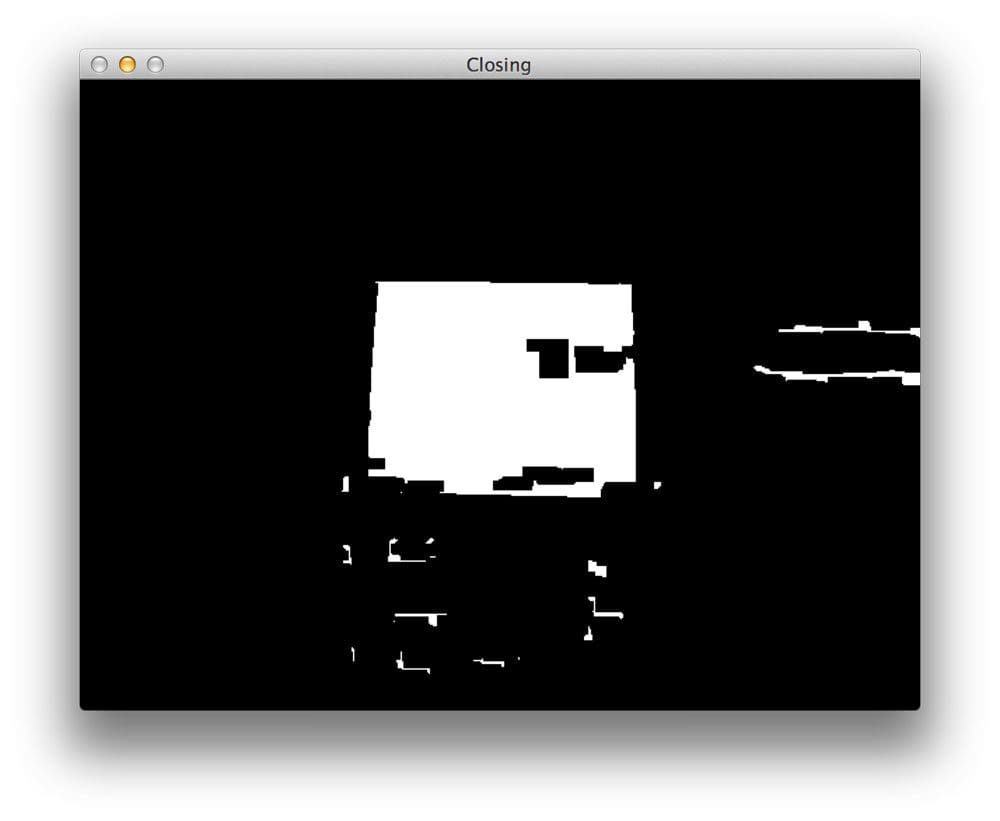

You can now see that the gaps are substantially more closed, as compared to the thresholded image above:
Of course, now we have small blobs in the image that are not part of the actual barcode, but may interfere with our contour detection.
Let’s go ahead and try to remove these small blobs:
# perform a series of erosions and dilations closed = cv2.erode(closed, None, iterations = 4) closed = cv2.dilate(closed, None, iterations = 4)
All we are doing here is performing 4 iterations of erosions, followed by 4 iterations of dilations. An erosion will “erode” the white pixels in the image, thus removing the small blobs, whereas a dilation will “dilate” the remaining white pixels and grow the white regions back out.
Provided that the small blobs were removed during the erosion, they will not reappear during the dilation.
After our series of erosions and dilations you can see that the small blobs have been successfully removed and we are left with the barcode region:
Finally, let’s find the contours of the barcoded region of the image:
# find the contours in the thresholded image, then sort the contours
# by their area, keeping only the largest one
cnts = cv2.findContours(closed.copy(), cv2.RETR_EXTERNAL,
cv2.CHAIN_APPROX_SIMPLE)
cnts = imutils.grab_contours(cnts)
c = sorted(cnts, key = cv2.contourArea, reverse = True)[0]
# compute the rotated bounding box of the largest contour
rect = cv2.minAreaRect(c)
box = cv2.cv.BoxPoints(rect) if imutils.is_cv2() else cv2.boxPoints(rect)
box = np.int0(box)
# draw a bounding box arounded the detected barcode and display the
# image
cv2.drawContours(image, [box], -1, (0, 255, 0), 3)
cv2.imshow("Image", image)
cv2.waitKey(0)
Luckily, this is the easy part. On Lines 41-44 we simply find the largest contour in the image, which if we have done our image processing steps correctly, should correspond to the barcoded region.
We then determine the minimum bounding box for the largest contour on Lines 47-49 and finally display the detected barcode on Lines 53-55.

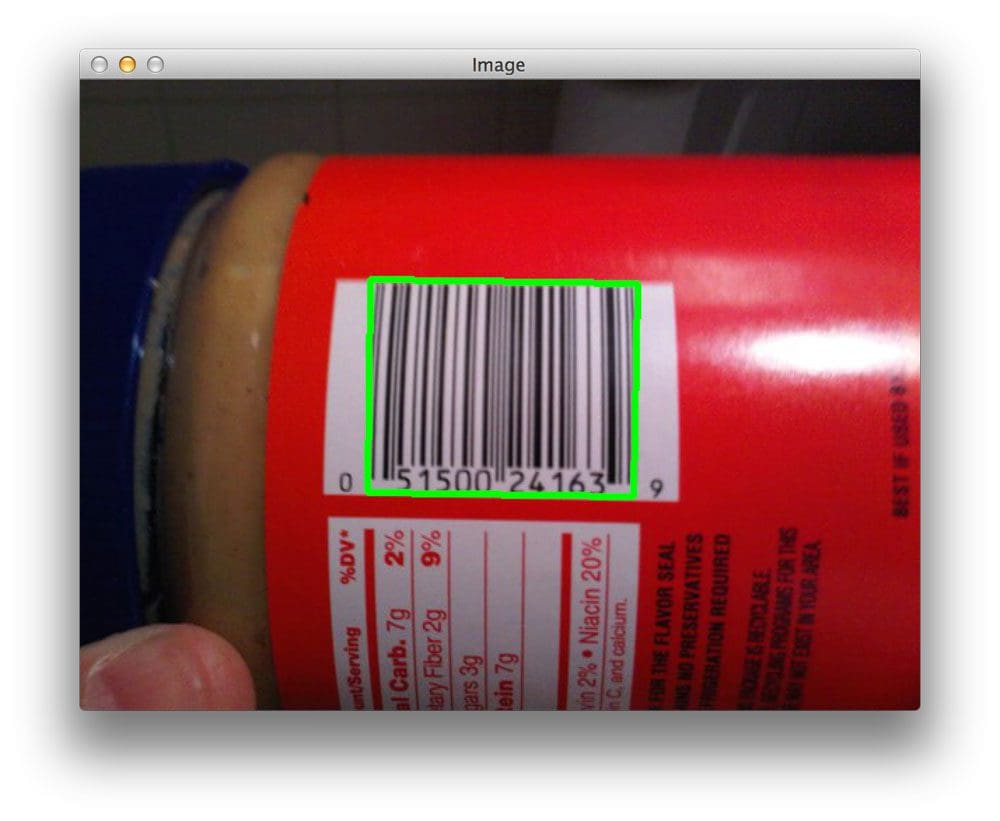

As you can see in the following image, we have successfully detected the barcode:
In the next section we’ll try a few more images.
Successful Barcode Detections
To follow along with these results, use the form at the bottom of this post to download the source code and accompanying images for this blog post.
Struggling with running the code in this section? Take a look at my command line arguments blog post.
Once you have the code and images, open up a terminal and execute the following command:

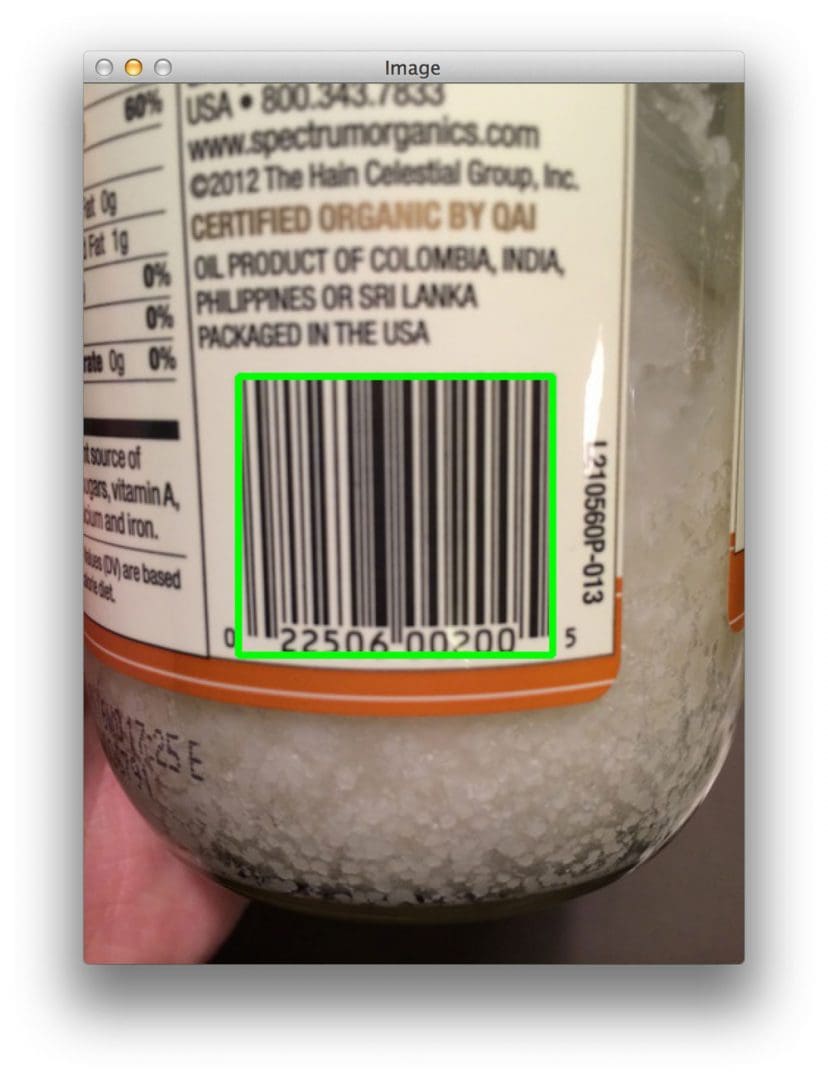

$ python detect_barcode.py --image images/barcode_02.jpg
No problem detecting the barcode on that jar of coconut oil!
Let’s try another image:
$ python detect_barcode.py --image images/barcode_03.jpg

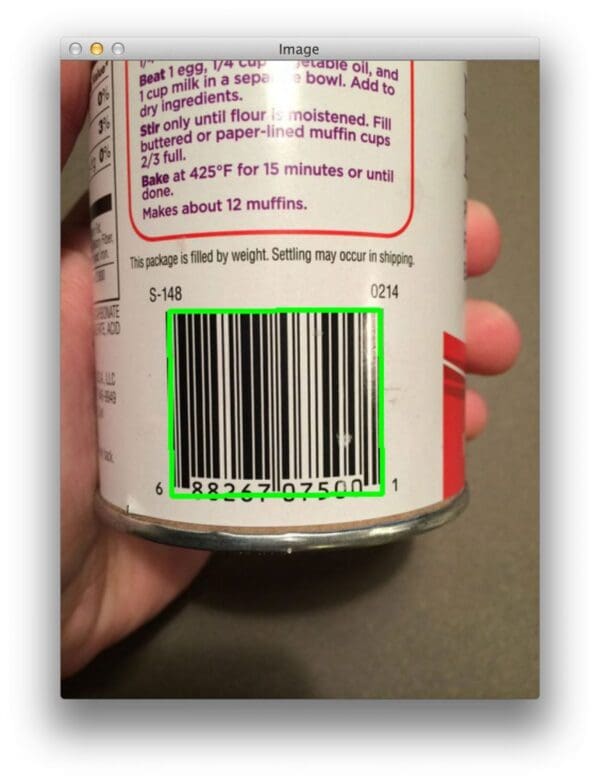

We were able to find the barcode in that image too!

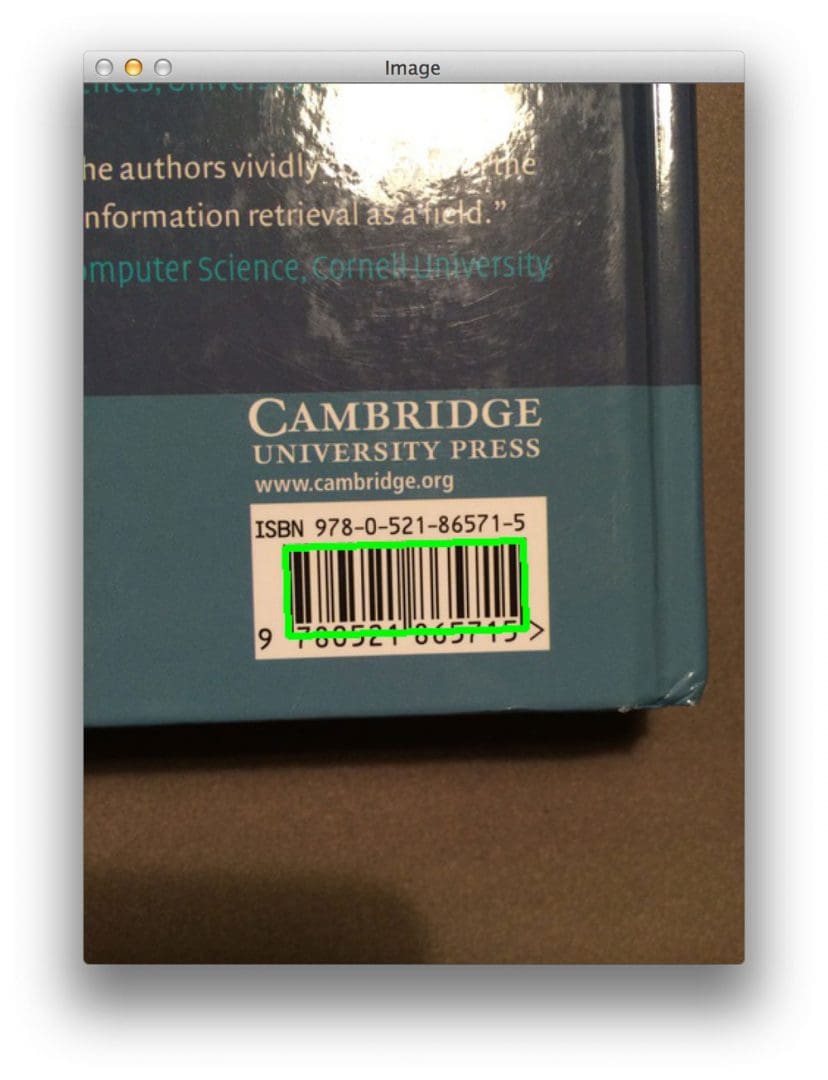

But enough of the food products, what about the barcode on a book:
$ python detect_barcode.py --image images/barcode_04.jpg
Again, no problem!

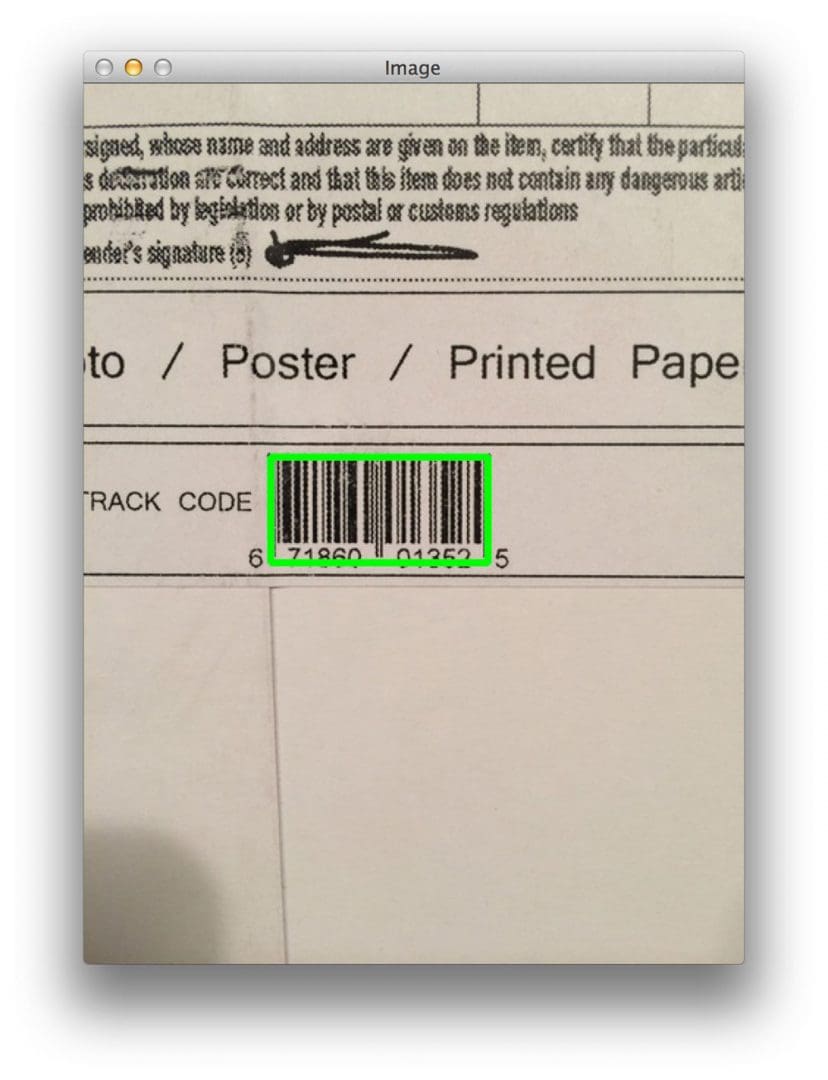

How about the tracking code on a package?
$ python detect_barcode.py --image images/barcode_05.jpg
Again, our algorithm is able to successfully detect the barcode.

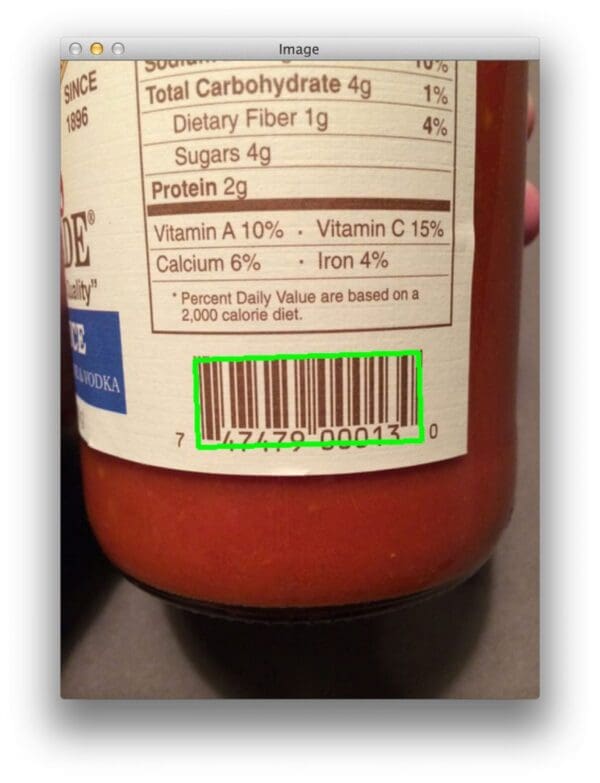

Finally, let’s try one more image This one is of my favorite pasta sauce, Rao’s Homemade Vodka Sauce:
$ python detect_barcode.py --image images/barcode_06.jpg
We were once again able to detect the barcode!
