Enhanced Super-Resolution Generative Adversarial Networks (ESRGAN)

Last week we learned about Super-Resolution GANs. They worked tremendously well on achieving better sharpness in super-resolution images. But was that the end of roads for GANs in the domain of super-resolution?

A common theme in deep learning is that growth never stops. Thus, we move on to Enhanced Super-Resolution GANs. As the name suggests, it brings in many updates over the original SRGAN architecture, which drastically improves performance and visualizations.

In this tutorial, you will learn how to implement ESRGAN using tensorflow.

This lesson is the 2nd in a 4-part series on GANs 201:

1. Super-Resolution Generative Adversarial Networks (SRGAN)
2. Enhanced Super-Resolution Generative Adversarial Networks (ESRGAN) (this tutorial)
3. Pix2Pix GAN for Image-to-Image Translation
4. CycleGAN for Image-to-Image Translation

To learn how to implement an ESRGAN, just keep reading.

---

Preface

GANs train two neural networks: the discriminator and the generator, simultaneously. The generator is to create fake images while the discriminator judges them as real or fake.

SRGANs used this idea in the domain of image super-resolution. The generator produces super-resolution images, while the discriminator judges them as real and fake.

---

Enhanced Super-Resolution GANs

Building on the foundation led by SRGANs, the ESRGAN’s main aim is to introduce model modification such that the training is efficient and less complex.

A brief recap of SRGANs:

• Feed low-resolution images as input to a generator and get super-resolution images as outputs.
• Pass those predictions through a discriminator and get the real or fake branding.
• Use a VGG net to add perceptual loss (pixel-wise) to add more sharpness to our predicted fake image.

But what updates did ESRGANs bring?

For starters, some major steps have been taken for the generator to ensure an increase in performance:

• Removal of Batch-Normalization Layers: A brief recap of the SRGAN architecture will show that batch-normalization layers were extensively used throughout the generator architecture. ESRGANs scrap the use of BN layers entirely, owing to increased performance and decreased computational complexity.

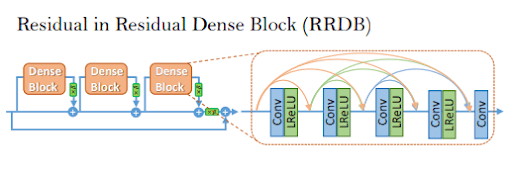

• Residual in Residual Dense Block: An upgrade over the standard residual block, this particular structure allows all the layer outputs in a block to be passed to the subsequent layers, as shown in Figure 1. The intuition here is that the model has access to many features to choose from and determine its relevance. Also, ESRGAN uses Residual Scaling to scale down the residual outputs to prevent instability.

• For the discriminator, the main addition is the relativistic loss. It estimates the probability of a real image being relatively more realistic than a fake predicted one. Naturally, adding this as a loss function makes the model work on overcoming the relativistic loss.
• The perceptual loss is changed a bit, making the loss based on features right before the activation function rather than after the activation function, as shown in last week’s SRGAN paper.
• The total loss is now the combination of the GAN loss, perceptual loss, and the pixel-wise distance between the ground truth high-resolution and predicted images.

These additions help improve the results drastically. In our implementation, we have stayed true to the paper and brought these updates to the traditional SRGAN to improve super-resolution results.

The core ideology behind ESRGAN was not only to enhance the results but also to make the process far more efficient. Therefore, the paper does not globally condemn batch-normalization usage. Still, it states that scraping the use of BN layers would be beneficial for our particular task, where even the similarity in the smallest of pixels is needed.

---

Configuring Your Development Environment

To follow this guide, you need to have the OpenCV library installed on your system.

Luckily, OpenCV is pip-installable:

$ pip install opencv-contrib-python

If you need help configuring your development environment for OpenCV, we highly recommend that you read our pip install OpenCV guide — it will have you up and running in a matter of minutes.

---

Having Problems Configuring Your Development Environment?

All that said, are you:

• Short on time?
• Learning on your employer’s administratively locked system?
• Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
• Ready to run the code right now on your Windows, macOS, or Linux system?

Then join PyImageSearch University today!

Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.

And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!

---

Project Structure

We first need to review our project directory structure.

Start by accessing the “Downloads” section of this tutorial to retrieve the source code and example images.

From there, take a look at the directory structure:

!tree .
.
├── create_tfrecords.py
├── inference.py
├── outputs
├── pyimagesearch
│   ├── config.py
│   ├── data_preprocess.py
│   ├── __init__.py
│   ├── losses.py
│   ├── esrgan.py
│   ├── esrgan_training.py
│   ├── utils.py
│   └── vgg.py
└── train_esrgan.py

2 directories, 11 files

In the pyimagesearch directory, we have:

• config.py: Contains an end-to-end configuration pipeline for the complete project.
• data_preprocess.py: Contains functions to aid in data processing.
• __init__.py: Makes the directory act like a python package.
• losses.py: Initializes the losses required to train the ESRGAN.
• esrgan.py: Contains the ESRGAN architecture.
• esrgan_training.py: Contains the training class which runs the ESRGAN training.
• utils.py: Contains additional utility
• vgg.py: Initializes a VGG model for perception loss calculation.

In the root directory, we have:

• create_tfrecords.py: Creates TFRecords from the dataset we will use.
• inference.py: Draws inference using the trained models.
• train_srgan.py: Executes the ESRGAN training using the esrgan.py and esrgan_training.py scripts.

---

Configuring the Prerequisites

The config.py script located in the pyimagesearch directory houses several parameters and paths required throughout the project. It is a good coding practice to keep your configuration variables separate. For that, let us move to the config.py script.

# import the necessary packages
import os

# name of the TFDS dataset we will be using
DATASET = "div2k/bicubic_x4"

# define the shard size and batch size
SHARD_SIZE = 256
TRAIN_BATCH_SIZE = 64
INFER_BATCH_SIZE = 8

# dataset specs
HR_SHAPE = [96, 96, 3]
LR_SHAPE = [24, 24, 3]
SCALING_FACTOR = 4

We start with referencing our project’s dataset on Line 5.

The SHARD_SIZE for TFRecords is defined on Line 8. This is followed by the TRAIN_BATCH_SIZE and INFER_BATCH_SIZE definitions on Lines 9 and 10.

Our high-resolution output image will have dimensions of 96 x 96 x 3 while our input low-resolution images will have dimensions of 24 x 24 x 3 (Lines 13 and 14). Accordingly, the SCALING_FACTOR is set to 4 on Line 15.

# GAN model specs
FEATURE_MAPS = 64
RESIDUAL_BLOCKS = 16
LEAKY_ALPHA = 0.2
DISC_BLOCKS = 4
RESIDUAL_SCALAR = 0.2

# training specs
PRETRAIN_LR = 1e-4
FINETUNE_LR = 3e-5
PRETRAIN_EPOCHS = 1500
FINETUNE_EPOCHS = 1000
STEPS_PER_EPOCH = 10

# define the path to the dataset
BASE_DATA_PATH = "dataset"
DIV2K_PATH = os.path.join(BASE_DATA_PATH, "div2k")

As we had done for the SRGAN, the architecture consists of residual networks. First, we set the number of filters used in the Conv2D layer (Line 18). On Line 19, we define the number of residual blocks. The alpha parameter for our ReLU function is set on Line 20.

The discriminator architecture will be automated based on the value of DISC_BLOCKS (Line 21). Now, we define a value for RESIDUAL_SCALAR, which will help us scale the residual block outputs to levels and keep the training procedure stable (Line 22).

Now, a repeat of our SRGAN parameters (learning rate, epochs, etc.) is done on Lines 25-29. We will pretrain our GAN and then fully train it for comparison. For that reason, we have defined the learning rate and epochs for our pretrained GAN and the fully trained GAN.

The BASE_DATA_PATH is set to define the to store our dataset. The DIV2K_PATH references the DIV2K dataset (Lines 32 and 33). The div2k dataset is perfect for aiding image super-resolution research, as it contains a variety of high-resolution images.

# define the path to the tfrecords for GPU training
GPU_BASE_TFR_PATH = "tfrecord"
GPU_DIV2K_TFR_TRAIN_PATH = os.path.join(GPU_BASE_TFR_PATH, "train")
GPU_DIV2K_TFR_TEST_PATH = os.path.join(GPU_BASE_TFR_PATH, "test")

# define the path to the tfrecords for TPU training
TPU_BASE_TFR_PATH = "gs://<PATH_TO_GCS_BUCKET>/tfrecord"
TPU_DIV2K_TFR_TRAIN_PATH = os.path.join(TPU_BASE_TFR_PATH, "train")
TPU_DIV2K_TFR_TEST_PATH = os.path.join(TPU_BASE_TFR_PATH, "test")

# path to our base output directory
BASE_OUTPUT_PATH = "outputs"

# GPU training ESRGAN model paths
GPU_PRETRAINED_GENERATOR_MODEL = os.path.join(BASE_OUTPUT_PATH,
	"models", "pretrained_generator")
GPU_GENERATOR_MODEL = os.path.join(BASE_OUTPUT_PATH, "models",
	"generator")

# TPU training ESRGAN model paths
TPU_OUTPUT_PATH = "gs://<PATH_TO_GCS_BUCKET>/outputs"
TPU_PRETRAINED_GENERATOR_MODEL = os.path.join(TPU_OUTPUT_PATH,
	"models", "pretrained_generator")
TPU_GENERATOR_MODEL = os.path.join(TPU_OUTPUT_PATH, "models",
	"generator")

# define the path to the inferred images and to the grid image
BASE_IMAGE_PATH = os.path.join(BASE_OUTPUT_PATH, "images")
GRID_IMAGE_PATH = os.path.join(BASE_OUTPUT_PATH, "grid.png")

So for comparison of training efficiency, we will be training the GAN on both TPU and GPU. For that, we have to create separate paths referencing data and outputs for both the GPU training and TPU training.

On Lines 36-38, we define TFRecords for GPU training. On Lines 41-43, we define the TFRecords for TPU training.

Now, we define the base output path on Line 46. This is followed by the referenced paths for the GPU-trained ESRGAN generator models (Lines 49-52). We do the same for the TPU-trained ESRGAN generator models (Lines 55-59).

With all set and done, the only remaining task is to reference the paths to the inferred images (Lines 62 and 63).

---

Implementing Data Processing Utilities

Training GANs properly requires lots of computation power and data. To ensure that we have sufficient data, we will employ several data augmentation techniques. Let’s look at those in the data_preprocess.py script located in the pyimagesearch directory.

# import the necessary packages
from tensorflow.io import FixedLenFeature
from tensorflow.io import parse_single_example
from tensorflow.io import parse_tensor
from tensorflow.image import flip_left_right
from tensorflow.image import rot90
import tensorflow as tf

# define AUTOTUNE object
AUTO = tf.data.AUTOTUNE

def random_crop(lrImage, hrImage, hrCropSize=96, scale=4):
	# calculate the low resolution image crop size and image shape
	lrCropSize = hrCropSize // scale
	lrImageShape = tf.shape(lrImage)[:2]

	# calculate the low resolution image width and height offsets
	lrW = tf.random.uniform(shape=(),
		maxval=lrImageShape[1] - lrCropSize + 1, dtype=tf.int32)
	lrH = tf.random.uniform(shape=(),
		maxval=lrImageShape[0] - lrCropSize + 1, dtype=tf.int32)

	# calculate the high resolution image width and height
	hrW = lrW * scale
	hrH = lrH * scale

	# crop the low and high resolution images
	lrImageCropped = tf.slice(lrImage, [lrH, lrW, 0],
		[(lrCropSize), (lrCropSize), 3])
	hrImageCropped = tf.slice(hrImage, [hrH, hrW, 0],
		[(hrCropSize), (hrCropSize), 3])

	# return the cropped low and high resolution images
	return (lrImageCropped, hrImageCropped)

Considering the amount of TensorFlow wrappers we will use in this project, defining a tf.data.AUTOTUNE object for space optimization is a good idea.

The first data augmentation function we have defined is random_crop (Line 12). It takes in the following arguments:

• lrImage: The low-resolution image.
• hrImage: The high-resolution image.
• hrCropSize: The high-resolution crop size for low-resolution crop calculation.
• scale: The factor by which we calculate the low-resolution crop.

The lr width and height offsets are then calculated (Lines 18-21).

To calculate the corresponding high-resolution values, we simply multiply the low-resolution values with the scale factor (Lines 24 and 25).

Using the values, we crop out the low-resolution image and its corresponding high-resolution crop and return them (Lines 28-34)

def get_center_crop(lrImage, hrImage, hrCropSize=96, scale=4):
	# calculate the low resolution image crop size and image shape
	lrCropSize = hrCropSize // scale
	lrImageShape = tf.shape(lrImage)[:2]

	# calculate the low resolution image width and height
	lrW = lrImageShape[1] // 2
	lrH = lrImageShape[0] // 2

	# calculate the high resolution image width and height
	hrW = lrW * scale
	hrH = lrH * scale

	# crop the low and high resolution images
	lrImageCropped = tf.slice(lrImage, [lrH - (lrCropSize // 2),
		lrW - (lrCropSize // 2), 0], [lrCropSize, lrCropSize, 3])
	hrImageCropped = tf.slice(hrImage, [hrH - (hrCropSize // 2),
		hrW - (hrCropSize // 2), 0], [hrCropSize, hrCropSize, 3])

	# return the cropped low and high resolution images
	return (lrImageCropped, hrImageCropped)

The next line in the data augmentation utilities is get_center_crop (Line 36), which takes in the following arguments:

• lrImage: The low-resolution image.
• hrImage: The high-resolution image.
• hrCropSize: The high-resolution crop size for low-resolution crop calculation.
• scale: The factor by which we calculate the low-resolution crop.

Just like we created crop size values for our previous function, we get the lr crop size values and image shape on Lines 38 and 39.

Now, to get the center pixel coordinates, we simply have to divide the low-resolution shape by 2 (Lines 42 and 43).

To get the corresponding high-resolution center points, multiply the lr center points by the scale factor (Lines 46 and 47).

def random_flip(lrImage, hrImage):
	# calculate a random chance for flip
	flipProb = tf.random.uniform(shape=(), maxval=1)
	(lrImage, hrImage) = tf.cond(flipProb < 0.5,
		lambda: (lrImage, hrImage),
		lambda: (flip_left_right(lrImage), flip_left_right(hrImage)))

	# return the randomly flipped low and high resolution images
	return (lrImage, hrImage)

We have the random_flip function to flip images on Line 58. It takes in the low-resolution and high-resolution images as its arguments.

Based on a flip probability value using tf.random.uniform, we flip our images and return them (Lines 60-66).

def random_rotate(lrImage, hrImage):
	# randomly generate the number of 90 degree rotations
	n = tf.random.uniform(shape=(), maxval=4, dtype=tf.int32)

	# rotate the low and high resolution images
	lrImage = rot90(lrImage, n)
	hrImage = rot90(hrImage, n)

	# return the randomly rotated images
	return (lrImage, hrImage)

On Line 68, we have another data augmentation function called random_rotate, which takes in the low-resolution image and the high-resolution image as its arguments.

The variable n generates a value that later helps on the amount of rotation to apply to our image sets (Lines 70-77).

def read_train_example(example):
	# get the feature template and  parse a single image according to
	# the feature template
	feature = {
		"lr": FixedLenFeature([], tf.string),
		"hr": FixedLenFeature([], tf.string),
	}
	example = parse_single_example(example, feature)

	# parse the low and high resolution images
	lrImage = parse_tensor(example["lr"], out_type=tf.uint8)
	hrImage = parse_tensor(example["hr"], out_type=tf.uint8)

	# perform data augmentation
	(lrImage, hrImage) = random_crop(lrImage, hrImage)
	(lrImage, hrImage) = random_flip(lrImage, hrImage)
	(lrImage, hrImage) = random_rotate(lrImage, hrImage)

	# reshape the low and high resolution images
	lrImage = tf.reshape(lrImage, (24, 24, 3))
	hrImage = tf.reshape(hrImage, (96, 96, 3))

	# return the low and high resolution images
	return (lrImage, hrImage)

With the data augmentation functions out of the way, we can move to the image reading function read_train_example on Line 79. This function games in a single image set (low-resolution and corresponding high-resolution image)

On Lines 82-90, we create an lr, hr feature template and parse the example set based on it.

Now, we apply the data augmentation functions on the lr-hr set (Lines 93-95). Then we reshape the lr-hr images back to their required dimensions (Lines 98-102).

def read_test_example(example):
	# get the feature template and  parse a single image according to
	# the feature template
	feature = {
		"lr": FixedLenFeature([], tf.string),
		"hr": FixedLenFeature([], tf.string),
	}
	example = parse_single_example(example, feature)

	# parse the low and high resolution images
	lrImage = parse_tensor(example["lr"], out_type=tf.uint8)
	hrImage = parse_tensor(example["hr"], out_type=tf.uint8)

	# center crop both low and high resolution image
	(lrImage, hrImage) = get_center_crop(lrImage, hrImage)

	# reshape the low and high resolution images
	lrImage = tf.reshape(lrImage, (24, 24, 3))
	hrImage = tf.reshape(hrImage, (96, 96, 3))

	# return the low and high resolution images
	return (lrImage, hrImage)

We create a similar function to the read_train_example for the inference images, called read_test_example, which takes an lr-hr image set (Line 104). Everything done in the previous function is repeated, except for the data augmentation process (Lines 107-125).

def load_dataset(filenames, batchSize, train=False):
	# get the TFRecords from the filenames
	dataset = tf.data.TFRecordDataset(filenames,
		num_parallel_reads=AUTO)

	# check if this is the training dataset
	if train:
		# read the training examples
		dataset = dataset.map(read_train_example,
			num_parallel_calls=AUTO)
	# otherwise, we are working with the test dataset
	else:
		# read the test examples
		dataset = dataset.map(read_test_example,
			num_parallel_calls=AUTO)

	# batch and prefetch the data
	dataset = (dataset
		.shuffle(batchSize)
		.batch(batchSize)
		.repeat()
		.prefetch(AUTO)
	)

	# return the dataset
	return dataset

Now, to sum it all up, we have the load_dataset function on Line 127. It takes in the filenames, batch size, and a Boolean variable indicating if the mode is training or inference.

On Lines 129 and 130, we get the TFRecords from the filenames provided. If the mode is set to train, we map the read_train_example function to the dataset. This way, all entries inside it get passed through the read_train_example function (Lines 133-136).

If the mode is inference, we wamp the read_test_example function to the dataset (Lines 138-141).

With our dataset created, it is now batched, shuffled, and set to automatic prefetch (Lines 144-152).

---

Implementing the ESRGAN Architecture

Our next destination is the esrgan.py script located in the pyimagesearch directory. This script houses the complete ESRGAN architecture. As we have already discussed the changes that ESRGAN brings in, let’s go through them one by one.

# import the necessary packages
from tensorflow.keras.layers import BatchNormalization
from tensorflow.keras.layers import GlobalAvgPool2D
from tensorflow.keras.layers.experimental.preprocessing import Rescaling
from tensorflow.keras.layers import LeakyReLU
from tensorflow.keras.layers import Lambda
from tensorflow.keras.layers import Conv2D
from tensorflow.keras.layers import Dense
from tensorflow.keras.layers import Add
from tensorflow.nn import depth_to_space
from tensorflow.keras import Model
from tensorflow.keras import Input

class ESRGAN(object):
	@staticmethod
	def generator(scalingFactor, featureMaps, residualBlocks,
			leakyAlpha, residualScalar):
		# initialize the input layer
		inputs = Input((None, None, 3))
		xIn = Rescaling(scale=1.0/255, offset=0.0)(inputs)

		# pass the input through CONV => LeakyReLU block
		xIn = Conv2D(featureMaps, 9, padding="same")(xIn)
		xIn = LeakyReLU(leakyAlpha)(xIn)

For ease of workflow, it is better to define the ESRGAN as a class template (Line 14).

First, we work out the generator. The function generator on Line 16 works as our generator definition and takes in the following arguments:

• scalingFactor: The determining factor for the output image scaling.
• featureMaps: The number of convolution filters.
• residualBlocks: The number of residual blocks added to the architecture.
• leakyAlpha: The factor determining the threshold value for our leaky ReLU function
• residualScalar: A value that keeps the outputs of residual blocks scaled so that the training is stable.

The inputs are initialized, and the pixels are scaled to the range of 0 and 1 (Lines 19 and 20).

The processed inputs are then passed through a Conv2D layer followed by a LeakyReLU activation function (Lines 23 and 24). The arguments for these layers have been defined previously in config.py.

		# construct the residual in residual block
		x = Conv2D(featureMaps, 3, padding="same")(xIn)
		x1 = LeakyReLU(leakyAlpha)(x)
		x1 = Add()([xIn, x1])
		x = Conv2D(featureMaps, 3, padding="same")(x1)
		x2 = LeakyReLU(leakyAlpha)(x)
		x2 = Add()([x1, x2])
		x = Conv2D(featureMaps, 3, padding="same")(x2)
		x3 = LeakyReLU(leakyAlpha)(x)
		x3 = Add()([x2, x3])
		x = Conv2D(featureMaps, 3, padding="same")(x3)
		x4 = LeakyReLU(leakyAlpha)(x)
		x4 = Add()([x3, x4])
		x4 = Conv2D(featureMaps, 3, padding="same")(x4)
		xSkip = Add()([xIn, x4])

		# scale the residual outputs with a scalar between [0,1]
		xSkip = Lambda(lambda x: x * residualScalar)(xSkip)

As we have mentioned before, ESRGAN uses Residual in Residual Blocks. Hence, the base block is defined next.

We start by adding a Conv2D and a LeakyReLU layer. Due to the nature of the block, the output of this combination of layers x1 is then added to the initial input x. This is repeated thrice, with a final Conv2D layer added before the skip connection joining the initial input xIn and the block output x4 (Lines 27-40).

Now, this is a little deviation from the original paper, where all layers are interconnected. The interconnection intention is to ensure that the model has access to the previous features at each step. Our approach is sufficient to give us desirable results based on the task and dataset we have used today.

After the skip connection addition, the outputs are scaled using the residualScalar variable on Line 43.

		# create a number of residual in residual blocks
		for blockId in range(residualBlocks-1):
			x = Conv2D(featureMaps, 3, padding="same")(xSkip)
			x1 = LeakyReLU(leakyAlpha)(x)
			x1 = Add()([xSkip, x1])
			x = Conv2D(featureMaps, 3, padding="same")(x1)
			x2 = LeakyReLU(leakyAlpha)(x)
			x2 = Add()([x1, x2])
			x = Conv2D(featureMaps, 3, padding="same")(x2)
			x3 = LeakyReLU(leakyAlpha)(x)
			x3 = Add()([x2, x3])
			x = Conv2D(featureMaps, 3, padding="same")(x3)
			x4 = LeakyReLU(leakyAlpha)(x)
			x4 = Add()([x3, x4])
			x4 = Conv2D(featureMaps, 3, padding="same")(x4)
			xSkip = Add()([xSkip, x4])
			xSkip = Lambda(lambda x: x * residualScalar)(xSkip)

Now the block repetition is an automation using a for loop. Based on the number of residual blocks specified, the block layers will be added (Lines 46-61).

		# process the residual output with a conv kernel
		x = Conv2D(featureMaps, 3, padding="same")(xSkip)
		x = Add()([xIn, x])

		# upscale the image with pixel shuffle
		x = Conv2D(featureMaps * (scalingFactor // 2), 3,
			padding="same")(x)
		x = tf.nn.depth_to_space(x, 2)
		x = LeakyReLU(leakyAlpha)(x)

		# upscale the image with pixel shuffle
		x = Conv2D(featureMaps, 3, padding="same")(x)
		x = tf.nn.depth_to_space(x, 2)
		x = LeakyReLU(leakyAlpha)(x)

		# get the output layer
		x = Conv2D(3, 9, padding="same", activation="tanh")(x)
		output = Rescaling(scale=127.5, offset=127.5)(x)

		# create the generator model
		generator = Model(inputs, output)

		# return the generator model
		return generator

The final residual output is added with another Conv2D layer on Lines 64 and 65.

Now, the upscaling process is started on Line 68, where the scalingFactor variable comes into play. This is followed by the depth_to_space utility function, which increases the height and width of a featureMaps by uniformly decreasing the channel size accordingly (Line 70). A LeakyReLU activation function is added to finish this specific layer combination (Line 71).

This same set of layers is repeated on Lines 73-76. The output layer is achieved by passing the featureMaps through another Conv2D layer. Notice how this convolution layer has a tanh activation function, which scales your input to the range of -1 and 1.

For this reason, the pixels are rescaled back to the range of 0 and 255. (Lines 79 and 80).

With the initialization of the generator on Line 83, our ESRGAN generator side requirements are complete.

	@staticmethod
	def discriminator(featureMaps, leakyAlpha, discBlocks):
		# initialize the input layer and process it with conv kernel
		inputs = Input((None, None, 3))
		x = Rescaling(scale=1.0/127.5, offset=-1)(inputs)
		x = Conv2D(featureMaps, 3, padding="same")(x)
		x = LeakyReLU(leakyAlpha)(x)

		# pass the output from previous layer through a CONV => BN =>
		# LeakyReLU block
		x = Conv2D(featureMaps, 3, padding="same")(x)
		x = BatchNormalization()(x)
		x = LeakyReLU(leakyAlpha)(x)

As we know, the objective of the discriminator is to take in the image as input and output one single value, which says if the image is real or fake.

The discriminator function on Line 89 is defined with the following arguments:

• featureMaps: The number of filters for Conv2D layers.
• leakyAlpha: The parameter required for the LeakyReLU activation function.
• discBlocks: Number of discriminator blocks we require in the architecture.

The inputs for the discriminator are initialized, and the pixels are scaled to the range of -1 and 1 (Lines 91 and 92).

The architecture starts with a Conv2D layer followed by a LeakyReLU activation layer (Lines 93 and 94).

Although we have discarded batch normalization layers for the generator, we will use them for the discriminator. The next set of layers is a Conv → BN → LeakyReLU combination (Lines 98-100).

		# create a downsample conv kernel config
		downConvConf = {
			"strides": 2,
			"padding": "same",
		}

		# create a number of discriminator blocks
		for i in range(1, discBlocks):
			# first CONV => BN => LeakyReLU block
			x = Conv2D(featureMaps * (2 ** i), 3, **downConvConf)(x)
			x = BatchNormalization()(x)
			x = LeakyReLU(leakyAlpha)(x)

			# second CONV => BN => LeakyReLU block
			x = Conv2D(featureMaps * (2 ** i), 3, padding="same")(x)
			x = BatchNormalization()(x)
			x = LeakyReLU(leakyAlpha)(x)

On Lines 103-106, we create a downsampling convolution template configuration. This is then used in the automated discriminator blocks on Lines 109-118.

		# process the feature maps with global average pooling
		x = GlobalAvgPool2D()(x)
		x = LeakyReLU(leakyAlpha)(x)

		# final FC layer with sigmoid activation function
		x = Dense(1, activation="sigmoid")(x)

		# create the discriminator model
		discriminator = Model(inputs, x)

		# return the discriminator model
		return discriminator

The feature maps are then passed through the GlobalAvgPool2D layer and another LeakyReLU activation layer, after which a final dense layer gives us our output (Lines 121-125).

The discriminator object is initialized and returned on Lines 128-131, and this concludes the discriminator function.

---

Building the Training Pipeline for the ESRGAN

With the architecture complete, it’s time to move on to the esrgan_training.py script located in the pyimagesearch directory.

# import the necessary packages
from tensorflow.keras import Model
from tensorflow import concat
from tensorflow import zeros
from tensorflow import ones
from tensorflow import GradientTape
from tensorflow.keras.activations import sigmoid
from tensorflow.math import reduce_mean
import tensorflow as tf

class ESRGANTraining(Model):
	def __init__(self, generator, discriminator, vgg, batchSize):
		# initialize the generator, discriminator, vgg model, and
		# the global batch size
		super().__init__()
		self.generator = generator
		self.discriminator = discriminator
		self.vgg = vgg
		self.batchSize = batchSize

To make things easier, the complete training module is packaged inside a class defined on Line 11.

Naturally, the first function becomes __init__, which takes in the generator model, discriminator model, VGG model, and the batch size specification (Line 12).

In this function, we create the corresponding class variables for the arguments (Lines 16-19). These variables will be used for the class functions later.

	def compile(self, gOptimizer, dOptimizer, bceLoss, mseLoss):
		super().compile()
		# initialize the optimizers for the generator
		# and discriminator
		self.gOptimizer = gOptimizer
		self.dOptimizer = dOptimizer

		# initialize the loss functions
		self.bceLoss = bceLoss
		self.mseLoss = mseLoss

The compile function on Line 21 takes in the generator and discriminator optimizers, binary cross entropy loss function, and the mean squared loss function.

This function initializes the optimizers and loss functions for the generator and the discriminator (Lines 25-30).

	def train_step(self, images):
		# grab the low and high resolution images
		(lrImages, hrImages) = images
		lrImages = tf.cast(lrImages, tf.float32)
		hrImages = tf.cast(hrImages, tf.float32)

		# generate super resolution images
		srImages = self.generator(lrImages)

		# combine them with real images
		combinedImages = concat([srImages, hrImages], axis=0)

		# assemble labels discriminating real from fake images where
		# label 0 is for predicted images and 1 is for original high
		# resolution images
		labels = concat(
			[zeros((self.batchSize, 1)), ones((self.batchSize, 1))],
			axis=0)

Now it’s time for us to define the training procedure. This is done in the function train_step defined on Line 32. This function takes in the images as its arguments.

We unpack the image set into its corresponding low-resolution and high-resolution images and cast them into the float32 data type (Lines 34-36).

On Line 39, we get a fake batch of super-resolution images from the generator. These are concatenated with the real super-resolution images, and the labels are accordingly created (Lines 47-49).

		# train the discriminator with relativistic error
		with GradientTape() as tape:
			# get the raw predictions and divide them into
			# raw fake and raw real predictions
			rawPreds = self.discriminator(combinedImages)
			rawFake = rawPreds[:self.batchSize]
			rawReal = rawPreds[self.batchSize:]

			# process the relative raw error and pass it through the
			# sigmoid activation function
			predFake = sigmoid(rawFake - reduce_mean(rawReal))
			predReal = sigmoid(rawReal - reduce_mean(rawFake))

			# concat the predictions and calculate the discriminator
			# loss
			predictions = concat([predFake, predReal], axis=0)
			dLoss = self.bceLoss(labels, predictions)

		# compute the gradients
		grads = tape.gradient(dLoss,
			self.discriminator.trainable_variables)

		# optimize the discriminator weights according to the
		# gradients computed
		self.dOptimizer.apply_gradients(
			zip(grads, self.discriminator.trainable_variables)
		)

		# generate misleading labels
		misleadingLabels = ones((self.batchSize, 1))

First, we will define the discriminator training. Initiating a GradientTape, we get predictions from our discriminator on the combined image set (Lines 52-55). We separate the fake image predictions and the real image predictions from these predictions and get relativistic errors for both. The values are then passed through a sigmoid function to get our final output values (Lines 56-62).

The predictions are again concatenated, and the discriminator loss is calculated by passing the predictions through the binary cross entropy loss (Lines 66 and 67).

With the loss values, the gradients are calculated, and the discriminator weights are changed accordingly (Lines 70-77).

With the discriminator training over, we now generate misleading labels required for the generator training (Line 80).

		# train the generator (note that we should *not* update
		# the weights of the discriminator)
		with GradientTape() as tape:
			# generate fake images
			fakeImages = self.generator(lrImages)

			# calculate predictions
			rawPreds = self.discriminator(fakeImages)
			realPreds = self.discriminator(hrImages)
			relativisticPreds = rawPreds - reduce_mean(realPreds)
			predictions = sigmoid(relativisticPreds)

			# compute the discriminator predictions on the fake images
			# todo: try with logits
			#gLoss = self.bceLoss(misleadingLabels, predictions)
			gLoss = self.bceLoss(misleadingLabels, predictions)

			# compute the pixel loss
			pixelLoss = self.mseLoss(hrImages, fakeImages)

			# compute the normalized vgg outputs
			srVGG = tf.keras.applications.vgg19.preprocess_input(
				fakeImages)
			srVGG = self.vgg(srVGG) / 12.75
			hrVGG = tf.keras.applications.vgg19.preprocess_input(
				hrImages)
			hrVGG = self.vgg(hrVGG) / 12.75

			# compute the perceptual loss
			percLoss = self.mseLoss(hrVGG, srVGG)

			# compute the total GAN loss
			gTotalLoss = 5e-3 * gLoss + percLoss + 1e-2 * pixelLoss

		# compute the gradients
		grads = tape.gradient(gTotalLoss,
			self.generator.trainable_variables)

		# optimize the generator weights according to the gradients
		# calculated
		self.gOptimizer.apply_gradients(zip(grads,
			self.generator.trainable_variables)
		)

		# return the generator and discriminator losses
		return {"dLoss": dLoss, "gTotalLoss": gTotalLoss,
			"gLoss": gLoss, "percLoss": percLoss, "pixelLoss": pixelLoss}

We again initialize a GradientTape for the generator and generate fake super-resolution images using the generator (Lines 84-86).

The predictions for both the fake and real super-resolution images are calculated, and the relativistic errors are calculated (Lines 89-92).

The predictions are fed to a binary cross entropy loss function while the pixel loss is calculated using the mean squared error loss function (Lines 97-100).

Next, we compute the VGG outputs and the perceptual loss (Lines 103-111). With all the loss values available, we compute the total GAN loss using the equation on Line 114.

The generator gradients are computed and applied (Lines 117-128).

---

Creating Utility Functions to Aid GAN Training

We have used a few utility scripts to aid in our training pipeline. The first one is a script that keeps the losses we have used in our training. For that, let’s move into the losses.py script inside the pyimagesearch directory.

# import necessary packages
from tensorflow.keras.losses import MeanSquaredError
from tensorflow.keras.losses import BinaryCrossentropy
from tensorflow.keras.losses import Reduction
from tensorflow import reduce_mean

class Losses:
	def __init__(self, numReplicas):
		self.numReplicas = numReplicas

	def bce_loss(self, real, pred):
		# compute binary cross entropy loss without reduction
		BCE = BinaryCrossentropy(reduction=Reduction.NONE)
		loss = BCE(real, pred)

		# compute reduced mean over the entire batch
		loss = reduce_mean(loss) * (1. / self.numReplicas)

		# return reduced bce loss
		return

The __init__ function defines the batch size used in the consequent loss functions (Lines 8 and 9).

The losses are packaged into a class on Line 7. The first loss we have defined is the binary cross entropy loss on Line 11. It takes in the real labels and the predicted labels.

The binary cross entropy loss object is defined on Line 13, and the loss is calculated on Line 14. The loss is then adjusted over the entire batch (Line 17).

	def mse_loss(self, real, pred):
		# compute mean squared error loss without reduction
		MSE = MeanSquaredError(reduction=Reduction.NONE)
		loss = MSE(real, pred)

		# compute reduced mean over the entire batch
		loss = reduce_mean(loss) * (1. / self.numReplicas)

		# return reduced mse loss
		return loss

The next loss is the mean squared error function defined on Line 22. A mean squared error loss object is initialized, followed by the loss calculation over the entire batch (Lines 24-28).

This concludes our losses.py script. We next move into the utils.py script, which will help us assess images generated by the GAN better. For that, let’s move into the utils.py script next.

# import the necessary packages
from . import config
from matplotlib.pyplot import subplots
from matplotlib.pyplot import savefig
from matplotlib.pyplot import title
from matplotlib.pyplot import xticks
from matplotlib.pyplot import yticks
from matplotlib.pyplot import show
from tensorflow.keras.preprocessing.image import array_to_img
from mpl_toolkits.axes_grid1.inset_locator import zoomed_inset_axes
from mpl_toolkits.axes_grid1.inset_locator import mark_inset
import os

# the following code snippet has been taken from:
# https://keras.io/examples/vision/super_resolution_sub_pixel
def zoom_into_images(image, imageTitle):
	# create a new figure with a default 111 subplot.
	(fig, ax) = subplots()
	im = ax.imshow(array_to_img(image[::-1]), origin="lower")

	title(imageTitle)
	# zoom-factor: 2.0, location: upper-left
	axins = zoomed_inset_axes(ax, 2, loc=2)
	axins.imshow(array_to_img(image[::-1]), origin="lower")

	# specify the limits.
	(x1, x2, y1, y2) = 20, 40, 20, 40
	# apply the x-limits.
	axins.set_xlim(x1, x2)
	# apply the y-limits.
	axins.set_ylim(y1, y2)

	# remove the xticks and yticks
	yticks(visible=False)
	xticks(visible=False)

	# make the line.
	mark_inset(ax, axins, loc1=1, loc2=3, fc="none", ec="blue")

	# build the image path and save it to disk
	imagePath = os.path.join(config.BASE_IMAGE_PATH,
		f"{imageTitle}.png")
	savefig(imagePath)

	# show the image
	show()

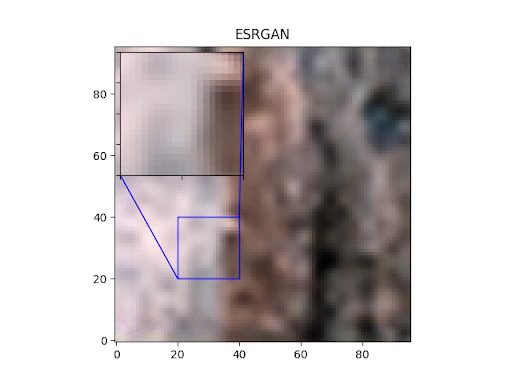

This script contains a single function called zoom_into_images on Line 16, which takes in the image and image title as arguments.

First, the subplots are defined, and the image is plotted (Lines 18 and 19). On Lines 21-24, we zoom into the upper-left area of the image and plot that part again.

The limits of this plot are set on Lines 27-31. Now, we remove the ticks on both the x-axis and y-axis and insert the lines on our original plot (Lines 34-38).

With the images plotted, we save the image and conclude the function (Lines 41-43).

Our final utility script is the vgg.py script, which initializes a VGG model for our perception loss.

# import the necessary packages
from tensorflow.keras.applications import VGG19
from tensorflow.keras import Model

class VGG:
	@staticmethod
	def build():
		# initialize the pre-trained VGG19 model
		vgg = VGG19(input_shape=(None, None, 3), weights="imagenet",
			include_top=False)

		# slicing the VGG19 model till layer #20
		model = Model(vgg.input, vgg.layers[20].output)

		# return the sliced VGG19 model
		return model

We create a class for the VGG model on Line 5. This function contains a singular function called build, which simply initializes a pretrained VGG-19 architecture and returns a VGG model sliced to the 20th layer (Lines 7-16). This concludes the vgg.py script.

---

Training the ESRGAN

Now we have all our blocks ready. We just need to execute them in the correct order for proper GAN training. To achieve this, we move into the train_esrgan.py script.

# USAGE
# python train_esrgan.py --device gpu
# python train_esrgan.py --device tpu

# import tensorflow and fix the random seed for better reproducibility
import tensorflow as tf
tf.random.set_seed(42)

# import the necessary packages
from pyimagesearch.data_preprocess import load_dataset
from pyimagesearch.esrgan_training import ESRGANTraining
from pyimagesearch.esrgan import ESRGAN
from pyimagesearch.losses import Losses
from pyimagesearch.vgg import VGG
from pyimagesearch import config
from tensorflow import distribute
from tensorflow.config import experimental_connect_to_cluster
from tensorflow.tpu.experimental import initialize_tpu_system
from tensorflow.keras.optimizers import Adam
from tensorflow.io.gfile import glob
import argparse
import sys
import os

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("--device", required=True, default="gpu",
	choices=["gpu", "tpu"], type=str,
	help="device to use for training (gpu or tpu)")
args = vars(ap.parse_args())

The first task here is to define an argument parser so that the user can choose whether the GAN training will be done using a TPU or GPU (Lines 26-30). As we have already mentioned, we have trained the GAN using both TPU and GPU to assess efficiency.

# check if we are using TPU, if so, initialize the TPU strategy
if args["device"] == "tpu":
	# initialize the TPUs
	tpu = distribute.cluster_resolver.TPUClusterResolver()
	experimental_connect_to_cluster(tpu)
	initialize_tpu_system(tpu)
	strategy = distribute.TPUStrategy(tpu)

	# ensure the user has entered a valid gcs bucket path
	if config.TPU_BASE_TFR_PATH == "gs://<PATH_TO_GCS_BUCKET>/tfrecord":
		print("[INFO] not a valid GCS Bucket path...")
		sys.exit(0)

	# set the train TFRecords, pretrained generator, and final
	# generator model paths to be used for TPU training
	tfrTrainPath = config.TPU_DIV2K_TFR_TRAIN_PATH
	pretrainedGenPath = config.TPU_PRETRAINED_GENERATOR_MODEL
	genPath = config.TPU_GENERATOR_MODEL

# otherwise, we are using multi/single GPU so initialize the mirrored
# strategy
elif args["device"] == "gpu":
	# define the multi-gpu strategy
	strategy = distribute.MirroredStrategy()

	# set the train TFRecords, pretrained generator, and final
	# generator model paths to be used for GPU training
	tfrTrainPath = config.GPU_DIV2K_TFR_TRAIN_PATH
	pretrainedGenPath = config.GPU_PRETRAINED_GENERATOR_MODEL
	genPath = config.GPU_GENERATOR_MODEL

# else, invalid argument was provided as input
else:
	# exit the program
	print("[INFO] please enter a valid device argument...")
	sys.exit(0)

# display the number of accelerators
print(f"[INFO] number of accelerators: {strategy.num_replicas_in_sync}...")

According to the device choice, we have to initialize strategies. First, we explore the case of the TPU choice (Line 33).

To utilize the power of TPUs properly, we initialize a TPUClusterResolver for efficient usage of resources. Next, the TPU strategy is initialized (Lines 35-43).

The TFRecords path to the TPU trained data, pretrained generator, and fully trained generator are defined (Lines 47-49).

Now the second device choice, which is the GPU, is explored. For the GPU, the GPU-mirroring strategy is used (Line 55), and the GPU-specific TFRecords path, pretrained generator path, and the fully trained generator path are defined (Lines 59-61).

If any other choice is given, the script exits by itself (Lines 64-67).

# grab train TFRecord filenames
print("[INFO] grabbing the train TFRecords...")
trainTfr = glob(tfrTrainPath +"/*.tfrec")

# build the div2k datasets from the TFRecords
print("[INFO] creating train and test dataset...")
trainDs = load_dataset(filenames=trainTfr, train=True,
	batchSize=config.TRAIN_BATCH_SIZE * strategy.num_replicas_in_sync)

# call the strategy scope context manager
with strategy.scope():
	# initialize our losses class object
	losses = Losses(numReplicas=strategy.num_replicas_in_sync)

	# initialize the generator, and compile it with Adam optimizer and
	# MSE loss
	generator = ESRGAN.generator(
		scalingFactor=config.SCALING_FACTOR,
		featureMaps=config.FEATURE_MAPS,
		residualBlocks=config.RESIDUAL_BLOCKS,
		leakyAlpha=config.LEAKY_ALPHA,
		residualScalar=config.RESIDUAL_SCALAR)
	generator.compile(optimizer=Adam(learning_rate=config.PRETRAIN_LR),
		loss=losses.mse_loss)

	# pretraining the generator
	print("[INFO] pretraining ESRGAN generator ...")
	generator.fit(trainDs, epochs=config.PRETRAIN_EPOCHS,
		steps_per_epoch=config.STEPS_PER_EPOCH)

We grab the TFRecords files and then create a training dataset using the load_dataset function (Lines 74-79).

First, we will initialize the pretrained Generator. For that, we first call the strategy scope context manager to initialize the losses and the generator on Lines 82-95. This is followed by training the generator on Lines 99 and 100.

# check whether output model directory exists, if it doesn't, then
# create it
if args["device"] == "gpu" and not os.path.exists(config.BASE_OUTPUT_PATH):
	os.makedirs(config.BASE_OUTPUT_PATH)

# save the pretrained generator
print("[INFO] saving the pretrained generator...")
generator.save(pretrainedGenPath)

# call the strategy scope context manager
with strategy.scope():
	# initialize our losses class object
	losses = Losses(numReplicas=strategy.num_replicas_in_sync)

	# initialize the vgg network (for perceptual loss) and discriminator
	# network
	vgg = VGG.build()
	discriminator = ESRGAN.discriminator(
		featureMaps=config.FEATURE_MAPS,
		leakyAlpha=config.LEAKY_ALPHA,
		discBlocks=config.DISC_BLOCKS)

	# build the ESRGAN model and compile it
	esrgan = ESRGANTraining(
		generator=generator,
		discriminator=discriminator,
		vgg=vgg,
		batchSize=config.TRAIN_BATCH_SIZE)
	esrgan.compile(
		dOptimizer=Adam(learning_rate=config.FINETUNE_LR),
		gOptimizer=Adam(learning_rate=config.FINETUNE_LR),
		bceLoss=losses.bce_loss,
		mseLoss=losses.mse_loss,
	)

	# train the ESRGAN model
	print("[INFO] training ESRGAN...")
	esrgan.fit(trainDs, epochs=config.FINETUNE_EPOCHS,
		steps_per_epoch=config.STEPS_PER_EPOCH)

# save the ESRGAN generator
print("[INFO] saving ESRGAN generator to {}..."
	.format(genPath))
esrgan.generator.save(genPath)

If the device is set to GPU, the base output model directory is initialized if not done already (Lines 104 and 105). The pretrained generator is then saved to the designated path (Line 109).

Now we move on to the fully trained ESRGAN. We initialize the strategy scope context manager again and initialize a loss object (Lines 112-114).

The VGG model required for the perceptual loss is initialized, followed by the ESRGAN (Lines 118-129). The ESRGAN is then compiled with required optimizers and losses (Lines 130-135).

The final step here is to fit the ESRGAN with the training data and let it train (Lines 139 and 140).

Once completed, the trained weights are saved in the predetermined path on Line 145.

---

Building an Inference Script for the ESRGAN

With our ESRGAN training complete, we can now assess how good our ESRGAN has fared for the result. For that, let’s look at the inference.py script located in the core directory.

# USAGE
# python inference.py --device gpu
# python inference.py --device tpu

# import the necessary packages
from pyimagesearch.data_preprocess import load_dataset
from pyimagesearch.utils import zoom_into_images
from pyimagesearch import config
from tensorflow import distribute
from tensorflow.config import experimental_connect_to_cluster
from tensorflow.tpu.experimental import initialize_tpu_system
from tensorflow.keras.models import load_model
from tensorflow.keras.preprocessing.image import array_to_img
from tensorflow.io.gfile import glob
from matplotlib.pyplot import subplots
import argparse
import sys
import os

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("--device", required=True, default="gpu",
	choices=["gpu", "tpu"], type=str,
	help="device to use for training (gpu or tpu)")
args = vars(ap.parse_args())

Depending on the device we had utilized for training, we need to provide the same device to initialize models and load the required weights accordingly. For that, we build an argument parser that takes the device choice from the user (Lines 21-25).

# check if we are using TPU, if so, initialize the strategy
# accordingly
if args["device"] == "tpu":
	tpu = distribute.cluster_resolver.TPUClusterResolver()
	experimental_connect_to_cluster(tpu)
	initialize_tpu_system(tpu)
	strategy = distribute.TPUStrategy(tpu)

	# set the train TFRecords, pretrained generator, and final
	# generator model paths to be used for TPU training
	tfrTestPath = config.TPU_DIV2K_TFR_TEST_PATH
	pretrainedGenPath = config.TPU_PRETRAINED_GENERATOR_MODEL
	genPath = config.TPU_GENERATOR_MODEL

# otherwise, we are using multi/single GPU so initialize the mirrored
# strategy
elif args["device"] == "gpu":
	# define the multi-gpu strategy
	strategy = distribute.MirroredStrategy()

	# set the train TFRecords, pretrained generator, and final
	# generator model paths to be used for GPU training
	tfrTestPath = config.GPU_DIV2K_TFR_TEST_PATH
	pretrainedGenPath = config.GPU_PRETRAINED_GENERATOR_MODEL
	genPath = config.GPU_GENERATOR_MODEL

# else, invalid argument was provided as input
else:
	# exit the program
	print("[INFO] please enter a valid device argument...")
	sys.exit(0)

Depending on the choice input by the user, we have to set up the strategies for dealing with data.

The first device choice (TPU) is explored by initializing the TPUClusterResolver, strategy, and TPU-specific output paths the same way we did for the training script (Lines 29-33).

For the second choice (GPU), we repeat the same procedures as the training script (Lines 43-51).

If any other input is given, the script exits itself (Lines 54-57).

# get the dataset
print("[INFO] loading the test dataset...")
testTfr = glob(tfrTestPath + "/*.tfrec")
testDs = load_dataset(testTfr, config.INFER_BATCH_SIZE, train=False)

# get the first batch of testing images
(lrImage, hrImage) = next(iter(testDs))

# call the strategy scope context manager
with strategy.scope():
    # load the ESRGAN trained models
    print("[INFO] loading the pre-trained and fully trained ESRGAN model...")
    esrganPreGen = load_model(pretrainedGenPath, compile=False)
    esrganGen = load_model(genPath, compile=False)

    # predict using ESRGAN
    print("[INFO] making predictions with pre-trained and fully trained ESRGAN model...")
    esrganPreGenPred = esrganPreGen.predict(lrImage)
    esrganGenPred = esrganGen.predict(lrImage)

For testing purposes, we create a test dataset on Line 62. Using next(iter()), we can grab a single batch of image sets, which we unpack on Line 65.

Next, the pretrained GAN and the fully trained ESRGAN are initialized and loaded on Lines 71 and 72. The low-resolution images are then passed through these GANs for predictions (Lines 76 and 77).

# plot the respective predictions
print("[INFO] plotting the ESRGAN predictions...")
(fig, axes) = subplots(nrows=config.INFER_BATCH_SIZE, ncols=4,
	figsize=(50, 50))

# plot the predicted images from low res to high res
for (ax, lowRes, esrPreIm, esrGanIm, highRes) in zip(axes, lrImage,
		esrganPreGenPred, esrganGenPred, hrImage):
	# plot the low resolution image
	ax[0].imshow(array_to_img(lowRes))
	ax[0].set_title("Low Resolution Image")

	# plot the pretrained ESRGAN image
	ax[1].imshow(array_to_img(esrPreIm))
	ax[1].set_title("ESRGAN Pretrained")

	# plot the ESRGAN image
	ax[2].imshow(array_to_img(esrGanIm))
	ax[2].set_title("ESRGAN")

	# plot the high resolution image
	ax[3].imshow(array_to_img(highRes))
	ax[3].set_title("High Resolution Image")

# check whether output image directory exists, if it doesn't, then
# create it
if not os.path.exists(config.BASE_IMAGE_PATH):
	os.makedirs(config.BASE_IMAGE_PATH)

# serialize the results to disk
print("[INFO] saving the ESRGAN predictions to disk...")
fig.savefig(config.GRID_IMAGE_PATH)

# plot the zoomed in images
zoom_into_images(esrganPreGenPred[0], "ESRGAN Pretrained")
zoom_into_images(esrganGenPred[0], "ESRGAN")

To visualize our results, subplots are initialized on Lines 81 and 82. Then we loop over the batch and plot the low-resolution image, pretrained GAN output, ESRGAN output, and actual high-resolution image for comparison (Lines 85-101).

---

Visualizations of the ESRGAN

Figures 3 and 4 show us the final predicted images from the pretrained ESRGAN and the fully trained ESRGAN, respectively.

The outputs of these two models are visually indistinguishable. However, the results are better than last week’s SRGAN outputs, even though the ESRGAN was trained for fewer epochs.

The zoomed-in patch shows the intricate sharpness of the pixelated information the ESRGAN achieved, proving that the enhanced recipes used for SRGAN enhancement have worked quite well.

---

---

Summary

SRGANs have already left a great impression based on their results. It had outperformed several existing super-resolution algorithms. Building on its foundation, coming up with enhancing recipes is something that the whole deep learning community greatly appreciates.

The additions are extremely well thought out, and the results are clear as day. Our ESRGAN achieves great results despite being trained for far fewer epochs. This fits the motive of ESRGAN, which had a prioritizing focus on efficiency, very well.

GANs have continued to impress us, and to this day, new domains are taken on using GANs. But in today’s project, we dealt with approaches that can be used to improve the end result.

---

Citation Information

Chakraborty, D. “Enhanced Super-Resolution Generative Adversarial Networks (ESRGAN),” PyImageSearch, P. Chugh, A. R. Gosthipaty, S. Huot, K. Kidriavsteva, R. Raha, and A. Thanki, eds., 2022, https://pyimg.co/jt2cb

@incollection{Chakraborty_2022_ESRGAN,
  author = {Devjyoti Chakraborty},
  title = {Enhanced Super-Resolution Generative Adversarial Networks {(ESRGAN)}},
  booktitle = {PyImageSearch},
  editor = {Puneet Chugh and Aritra Roy Gosthipaty and Susan Huot and Kseniia Kidriavsteva and Ritwik Raha and Abhishek Thanki},
  year = {2022},
  note = {https://pyimg.co/jt2cb},
}

---

To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
