Generating ArUco markers with OpenCV and Python

In this tutorial you will learn how to generate ArUco markers using OpenCV and Python.

Today’s blog post is part one in our three-part series on ArUCo markers and fiducials:

1. Generating ArUco markers with OpenCV and Python (today’s post)
2. Detecting ArUco markers in images and video with OpenCV (next week’s tutorial)
3. Automatically determining ArUco marker type with OpenCV (blog post two weeks from now)

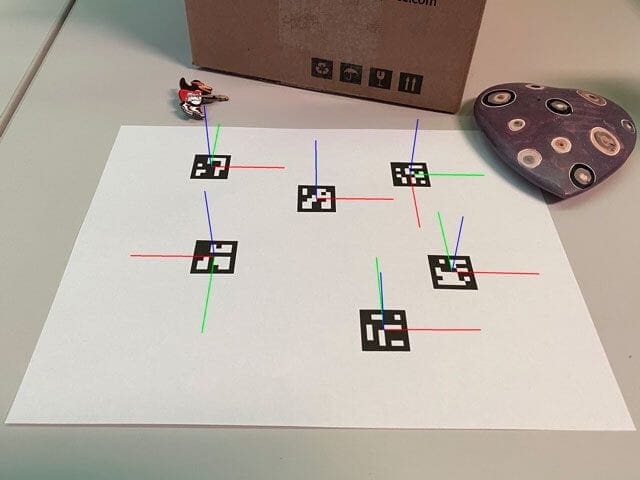

Similar to AprilTags, ArUco markers are 2D binary patterns that computer vision algorithms can easily detect.

Typically, we use AprilTags and ArUco markers for:

• Camera calibration
• Object size estimation
• Measuring the distance between camera and object
• 3D position
• Object orientation
• Robotics and autonomous navigation
• etc.

The primary benefits of using ArUco markers over AprilTags include:

In this introductory series to ArUco markers, you will learn how to generate them, detect them in images and real-time video streams, and even how to automatically detect the type of ArUco marker in an image (even if you don’t know what type of marker is being used).

We’ll then take this knowledge and use ArUco markers in our own computer vision and image processing pipelines in future PyImageSearch tutorials.

Updated 25 Nov 2021 with a note on using your ArUco markers on a white background.

To learn how to generate ArUco markers with OpenCV and Python, just keep reading.

Generating ArUco markers with OpenCV and Python

In the first part of this tutorial, we’ll discuss ArUco markers, including what they are and why we may want to use them in our computer vision and image processing pipelines.

We’ll then discuss how to generate ArUco markers using OpenCV and Python. I’ll also provide a few example websites that will generate ArUco markers for you if you don’t feel like writing code to generate them (although the code implementation itself is dead simple).

From there we’ll review our project directory structure and then implement a Python script named opencv_generate_aruco.py, which will generate a specific ArUco image and then save it to disk.

We’ll wrap up this tutorial with a discussion of our results.

What are ArUco markers?

I’ve already covered the fundamentals of fiducial markers, AprilTags, and ArUco markers in this previous tutorial, so I’m not going to rehash the basics here.

If you are new to fiducial markers and need to understand why they are important, how they work, or when we would want to use them in a computer vision/image processing pipeline, I suggest you give my AprilTag tutorial a read.

From there you should come back here and finish reading this tutorial on ArUco markers with OpenCV.

How can we generate ArUco markers with OpenCV and Python?

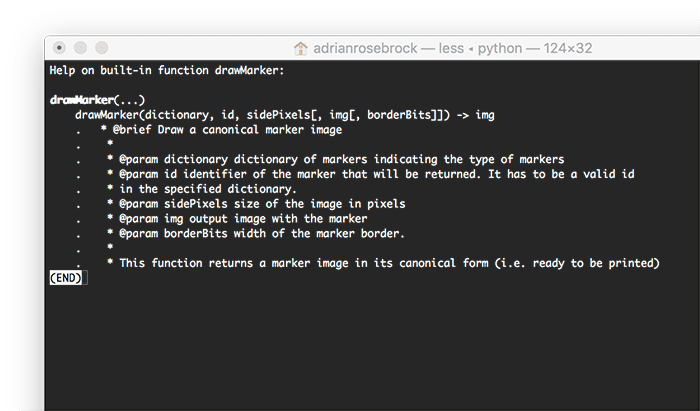

The OpenCV library has a built-in ArUco marker generator through its cv2.aruco.drawMarker function.

The parameters to this function include:

• dictionary: The ArUco dictionary specifying the type of markers we’re using
• id: The ID of the marker we’ll be drawing (has to be a valid ID In the ArUco dictionary)
• sidePixels: Size in pixels of the (square) image that we’ll be drawing the ArUco marker on
• borderBits: Width and height (in pixels) of the border

The drawMarker function then returns the output image with the ArUco marker drawn on it.

As you’ll see later in this tutorial, using the function is fairly straightforward in practice. The steps required include:

1. Select which ArUco dictionary you want to use
2. Specify which ArUco ID you’re going to draw
3. Allocate memory for your output ArUco image (in pixels)
4. Use the drawMarker function to draw the ArUco tag
5. Draw the ArUco marker itself

That said, if you don’t want to write any code, you could leverage an online ArUco generator.

Are there online ArUco marker generators?

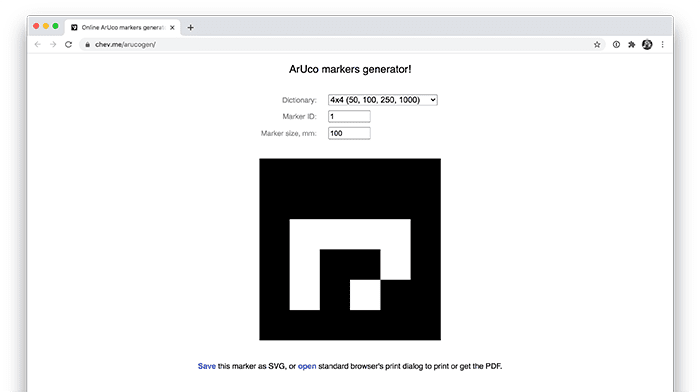

If you don’t feel like writing some code, or are simply in a hurry, there are online ArUco marker generators that you can use.

My favorite is this one, put together by Oleg Kalachev.

All you have to do is:

1. Select the ArUco dictionary you want to use
2. Enter the marker ID
3. Specify the marker size (in millimeters)

From there you can save the ArUco marker as an SVG file or PDF, print it, and then use it in your own OpenCV and computer vision applications.

What are ArUco dictionaries?

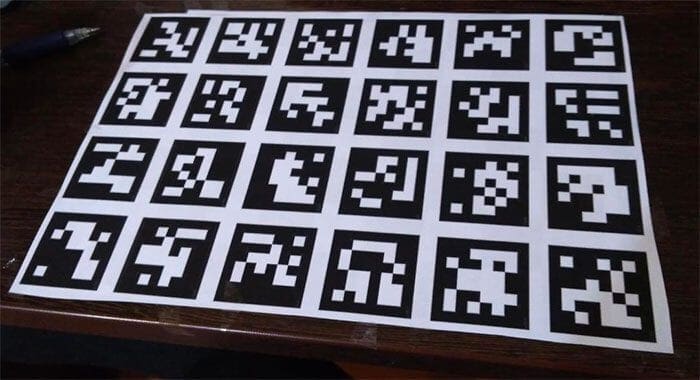

So far in this tutorial, I’ve mentioned the concept of an “ArUco dictionary”, but what exactly is an ArUco dictionary? And what role does it play in ArUco generation and detection?

The short answer is that an ArUco dictionary specifies the type of ArUco marker we are generating and detecting. Without the dictionary we would be unable to generate and detect these markers.

Imagine you are kidnapped, blindfolded, put on a plane, and dropped in a random country in the world. You are then given a notebook containing the secret to your release, but it’s written in a language you have never seen before in your life.

One captor takes pity on you and gives you a dictionary to help you translate what you see in your book.

Using the dictionary you are able to translate the document, reveal the secret, and escape with your life intact.

But without that dictionary you would have never been able to escape. Just as you needed that dictionary to translate the secret to your escape, we must know what type of ArUco markers we are working with in order to generate and detect them.

Types of ArUco dictionaries in OpenCV

There are 21 different ArUco dictionaries built into the OpenCV library. I have listed them here in the following Python dictionary:

ARUCO_DICT = {
	"DICT_4X4_50": cv2.aruco.DICT_4X4_50,
	"DICT_4X4_100": cv2.aruco.DICT_4X4_100,
	"DICT_4X4_250": cv2.aruco.DICT_4X4_250,
	"DICT_4X4_1000": cv2.aruco.DICT_4X4_1000,
	"DICT_5X5_50": cv2.aruco.DICT_5X5_50,
	"DICT_5X5_100": cv2.aruco.DICT_5X5_100,
	"DICT_5X5_250": cv2.aruco.DICT_5X5_250,
	"DICT_5X5_1000": cv2.aruco.DICT_5X5_1000,
	"DICT_6X6_50": cv2.aruco.DICT_6X6_50,
	"DICT_6X6_100": cv2.aruco.DICT_6X6_100,
	"DICT_6X6_250": cv2.aruco.DICT_6X6_250,
	"DICT_6X6_1000": cv2.aruco.DICT_6X6_1000,
	"DICT_7X7_50": cv2.aruco.DICT_7X7_50,
	"DICT_7X7_100": cv2.aruco.DICT_7X7_100,
	"DICT_7X7_250": cv2.aruco.DICT_7X7_250,
	"DICT_7X7_1000": cv2.aruco.DICT_7X7_1000,
	"DICT_ARUCO_ORIGINAL": cv2.aruco.DICT_ARUCO_ORIGINAL,
	"DICT_APRILTAG_16h5": cv2.aruco.DICT_APRILTAG_16h5,
	"DICT_APRILTAG_25h9": cv2.aruco.DICT_APRILTAG_25h9,
	"DICT_APRILTAG_36h10": cv2.aruco.DICT_APRILTAG_36h10,
	"DICT_APRILTAG_36h11": cv2.aruco.DICT_APRILTAG_36h11
}

The majority of these dictionaries follow a specific naming convention, cv2.aruco.DICT_NxN_M, with an NxN size followed by an integer value, M — but what do these values mean?

The NxN value is the 2D bit size of the ArUco marker. For example, for a 6×6 marker we have a total of 36 bits.

The integer M following the grid size specifies the total number of unique ArUco IDs that can be generated with that dictionary.

To make the naming convention more concrete, consider the following examples:

So, how do you decide on which ArUco marker dictionary you want to use?

1. To start, consider how many unique values in the dictionary you need. Only need a small handful of markers? Choose a dictionary that has a smaller unique number of values then. Need to detect a lot of markers? Select a dictionary with more unique ID values. Essentially, pick a dictionary that has the bare minimum number of IDs you need — don’t take more than what you actually need.
2. Look at your input image/video resolution size. Keep in mind that the larger your grid size gets, the larger the ArUco marker will need to be when captured by your camera. If you have a large grid but a low resolution input, then the marker may be undetectable (or may be misread).
3. Consider the inter-marker distance. OpenCV’s ArUco detection implementation utilizes error correction to improve the accuracy and robustness of marker detection. The error correction hinges on the concept of inter-marker distance. Smaller dictionary sizes with larger NxN marker sizes increase the inter-marker distance, thereby making them less prone to false readings.

Ideal settings for an ArUco dictionary include:

1. A low number of unique ArUco IDs that need to be generated and read
2. High-quality image input containing the ArUco markers that will be detected
3. A larger NxN grid size, balanced with a low number of unique ArUco IDs such that the inter-marker distance can be used to correct misread markers

Be sure to refer to the OpenCV documentation for more details on ArUco dictionaries.

Note: I’ll wrap up this section by saying that the final few entries in the ARUCO_DICT variable indicate that we can generate and detect AprilTags as well!

Configuring your development environment

In order to generate and detect ArUco markers, you need to have the OpenCV library installed.

Luckily, OpenCV is pip-installable:

$ pip install opencv-contrib-python

If you need help configuring your development environment with OpenCV, I highly recommend that you read my pip install OpenCV guide — it will have you up and running in a matter of minutes.

Having problems configuring your development environment?

All that said, are you:

• Short on time?
• Learning on your employer’s administratively locked system?
• Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
• Ready to run the code right now on your Windows, macOS, or Linux system?

Then join PyImageSearch Plus today!

Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.

And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!

Project structure

Before we start generating ArUco markers with OpenCV, let’s first review our project directory structure.

Use the “Downloads” section of this tutorial to download the source code and example images to this tutorial. From there, let’s inspect what we have:

$ tree . --dirsfirst
.
├── tags
│   ├── DICT_5X5_100_id24.png
│   ├── DICT_5X5_100_id42.png
│   ├── DICT_5X5_100_id66.png
│   ├── DICT_5X5_100_id70.png
│   └── DICT_5X5_100_id87.png
└── opencv_generate_aruco.py

1 directory, 6 files

As the name suggests, the opencv_generate_aruco.py script is used to generate ArUco markers. The resulting ArUco markers are then saved to task in the tags/ directory.

Next week we’ll learn how to actually detect and recognize these (and other) ArUco markers.

Implementing our ArUco marker generation script with OpenCV and Python

Let’s learn how to generate ArUco markers with OpenCV.

Open up the opencv_generate_aruco.py file in your project directory structure, and insert the following code:

# import the necessary packages
import numpy as np
import argparse
import cv2
import sys

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-o", "--output", required=True,
	help="path to output image containing ArUCo tag")
ap.add_argument("-i", "--id", type=int, required=True,
	help="ID of ArUCo tag to generate")
ap.add_argument("-t", "--type", type=str,
	default="DICT_ARUCO_ORIGINAL",
	help="type of ArUCo tag to generate")
args = vars(ap.parse_args())

# define names of each possible ArUco tag OpenCV supports
ARUCO_DICT = {
	"DICT_4X4_50": cv2.aruco.DICT_4X4_50,
	"DICT_4X4_100": cv2.aruco.DICT_4X4_100,
	"DICT_4X4_250": cv2.aruco.DICT_4X4_250,
	"DICT_4X4_1000": cv2.aruco.DICT_4X4_1000,
	"DICT_5X5_50": cv2.aruco.DICT_5X5_50,
	"DICT_5X5_100": cv2.aruco.DICT_5X5_100,
	"DICT_5X5_250": cv2.aruco.DICT_5X5_250,
	"DICT_5X5_1000": cv2.aruco.DICT_5X5_1000,
	"DICT_6X6_50": cv2.aruco.DICT_6X6_50,
	"DICT_6X6_100": cv2.aruco.DICT_6X6_100,
	"DICT_6X6_250": cv2.aruco.DICT_6X6_250,
	"DICT_6X6_1000": cv2.aruco.DICT_6X6_1000,
	"DICT_7X7_50": cv2.aruco.DICT_7X7_50,
	"DICT_7X7_100": cv2.aruco.DICT_7X7_100,
	"DICT_7X7_250": cv2.aruco.DICT_7X7_250,
	"DICT_7X7_1000": cv2.aruco.DICT_7X7_1000,
	"DICT_ARUCO_ORIGINAL": cv2.aruco.DICT_ARUCO_ORIGINAL,
	"DICT_APRILTAG_16h5": cv2.aruco.DICT_APRILTAG_16h5,
	"DICT_APRILTAG_25h9": cv2.aruco.DICT_APRILTAG_25h9,
	"DICT_APRILTAG_36h10": cv2.aruco.DICT_APRILTAG_36h10,
	"DICT_APRILTAG_36h11": cv2.aruco.DICT_APRILTAG_36h11
}

I reviewed the ArUco dictionaries in the “Types of ArUco dictionaries in OpenCV” section above, so be sure to refer there if you would like additional explanation on this code block.

With our ARUCO_DICT mappings defined, let’s now load the ArUco dictionary using OpenCV:

# verify that the supplied ArUCo tag exists and is supported by
# OpenCV
if ARUCO_DICT.get(args["type"], None) is None:
	print("[INFO] ArUCo tag of '{}' is not supported".format(
		args["type"]))
	sys.exit(0)

# load the ArUCo dictionary
arucoDict = cv2.aruco.Dictionary_get(ARUCO_DICT[args["type"]])

# allocate memory for the output ArUCo tag and then draw the ArUCo
# tag on the output image
print("[INFO] generating ArUCo tag type '{}' with ID '{}'".format(
	args["type"], args["id"]))
tag = np.zeros((300, 300, 1), dtype="uint8")
cv2.aruco.drawMarker(arucoDict, args["id"], 300, tag, 1)

# write the generated ArUCo tag to disk and then display it to our
# screen
cv2.imwrite(args["output"], tag)
cv2.imshow("ArUCo Tag", tag)
cv2.waitKey(0)

Line 57 allocates memory for a 300x300x1 grayscale image. We use grayscale here, since an ArUco tag is a binary image.

Additionally, you can use whatever image dimensions you wish. I hardcoded 300 pixels here, but again, feel free to increase/decrease resolution as you see fit for your own project.

OpenCV ArUco generation results

We are now ready to generate ArUco markers with OpenCV!

Start by using the “Downloads” section of this tutorial to download the source code and example images.

From there, open up a terminal, and execute the following command:

$ python opencv_generate_aruco.py --id 24 --type DICT_5X5_100 \
	--output tags/DICT_5X5_100_id24.png
[INFO] generating ArUCo tag type 'DICT_5X5_100' with ID '24'

$ python opencv_generate_aruco.py --id 42 --type DICT_5X5_100 \
	--output tags/DICT_5X5_100_id42.png
[INFO] generating ArUCo tag type 'DICT_5X5_100' with ID '42'

$ python opencv_generate_aruco.py --id 66 --type DICT_5X5_100 \
	--output tags/DICT_5X5_100_id66.png
[INFO] generating ArUCo tag type 'DICT_5X5_100' with ID '66'

$ python opencv_generate_aruco.py --id 87 --type DICT_5X5_100 \
	--output tags/DICT_5X5_100_id87.png
[INFO] generating ArUCo tag type 'DICT_5X5_100' with ID '87'

$ python opencv_generate_aruco.py --id 70 --type DICT_5X5_100 \
	--output tags/DICT_5X5_100_id70.png
[INFO] generating ArUCo tag type 'DICT_5X5_100' with ID '70'

At this point we’ve generated five ArUco markers, a montage of which I’ve created below:

But so what? The markers don’t do much use just sitting on our disk.

How can we take these markers and then detect them in images and real-time video streams?

I’ll be addressing that very question in next week’s tutorial.

Stay tuned.

One final note in case you want to create ArUco markers on your own, you need to put the ArUco markers in this tutorial on a white background to ensure the code works properly in the next blog post.

If you don’t have a white background for your ArUco markers, I can’t guarantee will work properly.

Summary

In this tutorial you learned how to generate ArUco markers with OpenCV and Python.

Working with ArUco tags with OpenCV is dead simple due to the handy cv2.aruco submodule built into the OpenCV library (i.e., you don’t need any additional Python packages or dependencies to detect ArUco tags).

Now that we’ve actually generated some ArUco tags, next week I will show you how to take the generated tags and actually detect them in images and real-time video streams.

By the end of this series of tutorials, you will have the knowledge necessary to confidently and successfully work with ArUco tags in your own OpenCV projects.

To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
