Tesseract OCR: Text localization and detection

In this tutorial, you will learn how to utilize Tesseract to detect, localize, and OCR text, all within a single, efficient function call.

Back in September, I showed you how to use OpenCV to detect and OCR text. This method was a three stage process:

1. Use OpenCV’s EAST text detection model to detect the presence of text in an image
2. Extract the text Region of Interest (ROI) from the image using basic image cropping/NumPy array slicing
3. Take the text ROI, and then pass it into Tesseract to actually OCR the text

Our method worked quite well but was a bit complicated and less efficient due to the multistage process.

PyImageSearch reader Bryan wonders if there is a better, more streamlined way:

Hi Adrian,

I noticed that OpenCV’s uses the EAST text detection model. I assume text detection also exists inside Tesseract?

If so, is there anyway we can utilize Tesseract to both detect the text and OCR it without having to call additional OpenCV functions?

You’re in luck, Bryan. Tesseract does have the ability to perform text detection and OCR in a single function call — and as you’ll find out, it’s quite easy to do!

To learn how to detect, localize, and OCR text with Tesseract, just keep reading.

Tesseract OCR: Text localization and detection

In the first part of this tutorial, we’ll discuss the concept of text detection and localization.

From there, I will show you how to install Tesseract on your system.

We’ll then implement text localization, detection, and OCR using Tesseract and Python.

Finally, we’ll review our results.

What is text localization and detection?

Text detection is the process of localizing where an image text is.

You can think of text detection as a specialized form of object detection.

In object detection, our goal is to (1) detect and compute the bounding box of all objects in an image and (2) determine the class label for each bounding box, similar to the image below:

In text detection, our goal is to automatically compute the bounding boxes for every region of text in an image:

Once we have those regions, we can then OCR them.

How to install pytesseract for Tesseract OCR

I have provided instructions for installing the Tesseract OCR engine as well as pytesseract (the Python bindings used to interface with Tesseract) in my blog post OpenCV OCR and text recognition with Tesseract.

Follow the instructions in the “How to install Tesseract 4” section of that tutorial, confirm your Tesseract install, and then come back here to learn how to detect and localize text with Tesseract.

Project structure

Go ahead and grab today’s .zip from the “Downloads” section of this blog post. Once you extract the files, you’ll be presented with an especially simple project layout:

% tree
.
├── apple_support.png
└── localize_text_tesseract.py

0 directories, 2 files

Implementing text localization, text detection, and OCR with Tesseract

# import the necessary packages
from pytesseract import Output
import pytesseract
import argparse
import cv2

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-i", "--image", required=True,
	help="path to input image to be OCR'd")
ap.add_argument("-c", "--min-conf", type=int, default=0,
	help="mininum confidence value to filter weak text detection")
args = vars(ap.parse_args())

We begin by importing packages, namely pytesseract and OpenCV. Be sure to refer to the “How to install pytesseract for Tesseract OCR” section above for installation links.

Next, we parse two command line arguments:

# load the input image, convert it from BGR to RGB channel ordering,
# and use Tesseract to localize each area of text in the input image
image = cv2.imread(args["image"])
rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
results = pytesseract.image_to_data(rgb, output_type=Output.DICT)

# loop over each of the individual text localizations
for i in range(0, len(results["text"])):
	# extract the bounding box coordinates of the text region from
	# the current result
	x = results["left"][i]
	y = results["top"][i]
	w = results["width"][i]
	h = results["height"][i]

	# extract the OCR text itself along with the confidence of the
	# text localization
	text = results["text"][i]
	conf = int(results["conf"][i])

# filter out weak confidence text localizations
	if conf > args["min_conf"]:
		# display the confidence and text to our terminal
		print("Confidence: {}".format(conf))
		print("Text: {}".format(text))
		print("")

		# strip out non-ASCII text so we can draw the text on the image
		# using OpenCV, then draw a bounding box around the text along
		# with the text itself
		text = "".join([c if ord(c) < 128 else "" for c in text]).strip()
		cv2.rectangle(image, (x, y), (x + w, y + h), (0, 255, 0), 2)
		cv2.putText(image, text, (x, y - 10), cv2.FONT_HERSHEY_SIMPLEX,
			1.2, (0, 0, 255), 3)

# show the output image
cv2.imshow("Image", image)
cv2.waitKey(0)

Great job performing OCR with Tesseract and pytesseract.

Tesseract text localization, text detection, and OCR results

We are now ready to perform text detection and localization with Tesseract!

Make sure you use the “Downloads” section of this tutorial to download the source code and example image.

From there, open up a terminal, and execute the following command:

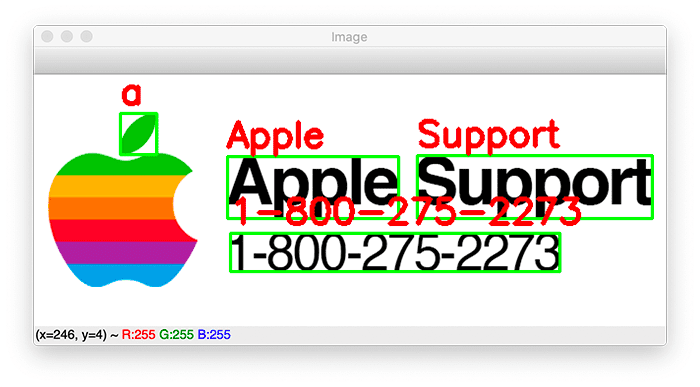

$ python localize_text_tesseract.py --image apple_support.png
Confidence: 26
Text: a

Confidence: 96
Text: Apple

Confidence: 96
Text: Support

Confidence: 96

$ python localize_text_tesseract.py --image apple_support.png --min-conf 50
Confidence: 96
Text: Apple

Confidence: 96
Text: Support

Confidence: 96
Text: 1-800-275-2273

Summary

In this tutorial, you learned how to use Tesseract to detect text, localize it, and then OCR it.

The benefit of using Tesseract to perform text detection and OCR is that we can do so in just a single function call, making it easier than the multistage OpenCV OCR process.

That said, OCR is still an area of computer vision that is far from solved.

Whenever confronted with an OCR project, be sure to apply both methods and see which method gives you the best results — let your empirical results guide you.
