An essential component of any OCR system is image preprocessing — the higher the quality input image you present to the OCR engine, the better your OCR output will be. To be successful in OCR, you need to review arguably the most important pre-processing step: text orientation.
To learn how to perform text orientation with Tesseract and Python, just keep reading.
Looking for the source code to this post?
Jump Right To The Downloads SectionCorrecting Text Orientation with Tesseract and Python
Text orientation refers to the rotation angle of a piece of text in an image. A given word, sentence, or paragraph will look like gibberish to an OCR engine if the text is significantly rotated. OCR engines are intelligent, but like humans, they are not trained to read upside-down!
Therefore, a critical first step in preparing your image data for OCR is to detect text orientation (if any) and then correct the text orientation. From there, you can present the corrected image to your OCR engine (and ideally obtain higher OCR accuracy).
Learning Objectives
In this tutorial, you will learn:
- The concept of orientation and script detection (OSD)
- How to detect text script (i.e., writing system) with Tesseract
- How to detect text orientation using Tesseract
- How to automatically correct text orientation with OpenCV
Configuring your development environment
To follow this guide, you need to have the OpenCV library installed on your system.
Luckily, OpenCV is pip-installable:
$ pip install opencv-contrib-python
If you need help configuring your development environment for OpenCV, I highly recommend that you read my pip install OpenCV guide — it will have you up and running in a matter of minutes.
Having problems configuring your development environment?
All that said, are you:
- Short on time?
- Learning on your employer’s administratively locked system?
- Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
- Ready to run the code right now on your Windows, macOS, or Linux system?
Then join PyImageSearch University today!
Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.
And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!
What Is Orientation and Script Detection?
Before we automatically detect and correct text orientation with Tesseract, we first need to discuss the concept of orientation and script detection (OSD). Tesseract has several different modes that you can use when automatically detecting and OCR’ing text. Some of these modes perform a full-blown OCR of the input image, while others output meta-data such as text information, orientation, etc. (i.e., your OSD modes). Tesseract’s OSD mode is going to give you two output values:
- Text orientation: The estimated rotation angle (in degrees) of the text in the input image.
- Script: The predicted “writing system” of the text in the image.

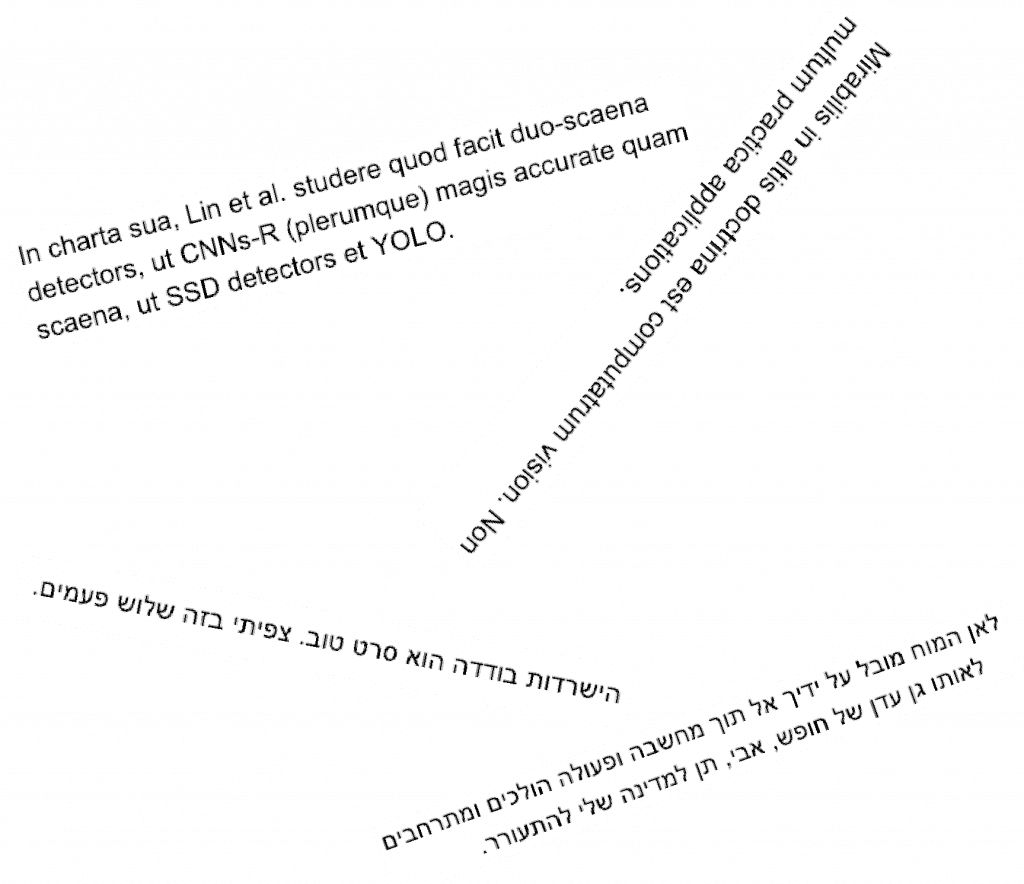

Figure 2 shows an example of varying text orientations. When in OSD mode, Tesseract will detect these orientations and tell us how to correct the orientation.
A writing system is a visual method of communicating information, but unlike speech, a writing system also includes the concept of “storage” and “knowledge transfer.”
When we put pen to paper, the characters we utilize are part of a script/writing system. These characters can be read by us and others, thereby imparting and transferring knowledge from the writer. Additionally, this knowledge is “stored” on the paper, meaning that if we were to die, the knowledge left on that paper could be imparted to others who could read our script/writing system.
Figure 2 also provides examples of various scripts and writing systems, including Latin (the script used in English and other languages) and Abjad (the script for Hebrew amid other languages). When placed in OSD mode, Tesseract automatically detects the text’s writing system in the input image.
If you’re new to the concept of scripts/writing systems, I would strongly recommend reading Wikipedia’s excellent article on the topic. It’s a great read which covers the history of writing systems and how they’ve evolved.
Detecting and Correcting Text Orientation with Tesseract
Now that we understand OSD’s basics, let’s move on to detecting and correcting text orientation with Tesseract. We’ll start with a quick review of our project directory structure. From there, I’ll show you how to implement text orientation correction. We’ll wrap up this tutorial with a discussion of our results.
Project Structure
Let’s dive into the directory structure for this project:
|-- images | |-- normal.png | |-- rotated_180.png | |-- rotated_90_clockwise.png | |-- rotated_90_counter_clockwise.png | |-- rotated_90_counter_clockwise_hebrew.png |-- detect_orientation.py
All the code to detect and correct text orientation is contained within the detect_orientation.py
Python script and implemented in less than 35 lines of code, including comments. We’ll test the code using a selection of images/
included in the project folder.
Implementing Our Text Orientation and Correction Script
Let’s get started implementing our text orientation corrector with Tesseract and OpenCV.
Open a new file, name it detect_orientation.py
, and insert the following code:
# import the necessary packages from pytesseract import Output import pytesseract import argparse import imutils import cv2 # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", required=True, help="path to input image to be OCR'd") args = vars(ap.parse_args())
An import you might not recognize at first is PyTesseract’s Output
class (https://github.com/madmaze/pytesseract). This class simply specifies four datatypes including DICT
which we will take advantage of.
Our lone command line argument is our input --image
to be OCR’d. Let’s load the input now:
# load the input image, convert it from BGR to RGB channel ordering, # and use Tesseract to determine the text orientation image = cv2.imread(args["image"]) rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB) results = pytesseract.image_to_osd(rgb, output_type=Output.DICT) # display the orientation information print("[INFO] detected orientation: {}".format( results["orientation"])) print("[INFO] rotate by {} degrees to correct".format( results["rotate"])) print("[INFO] detected script: {}".format(results["script"]))
Lines 16 and 17 load our input --image
and swap color channels so that it is compatible with Tesseract.
From there, we apply orientation and script detection (OSD) to the rgb
image while specifying our output_type=Output.DICT
(Line 18). We then display the orientation and script information in the terminal (contained in the results
dictionary) including:
- The current orientation
- How many degrees to rotate the image to correct its orientation
- The type of script detected, such as Latin or Arabic
Given this information, next, we’ll correct the text orientation:
# rotate the image to correct the orientation rotated = imutils.rotate_bound(image, angle=results["rotate"]) # show the original image and output image after orientation # correction cv2.imshow("Original", image) cv2.imshow("Output", rotated) cv2.waitKey(0)
Using my imutils rotate_bound
method (http://pyimg.co/vebvn), we rotate the image ensuring that the entire image stays fully visible in the results (Line 28). Had we used OpenCV’s generic cv2.rotate
method, the corners of the image would have been cut off. Finally, we display both the original and rotated images until a key is pressed (Lines 32-34).
Text Orientation and Correction Results
We are now ready to apply text OSD! Open a terminal and execute the following command:
$ python detect_orientation.py --image images/normal.png [INFO] detected orientation: 0 [INFO] rotate by 0 degrees to correct [INFO] detected script: Latin

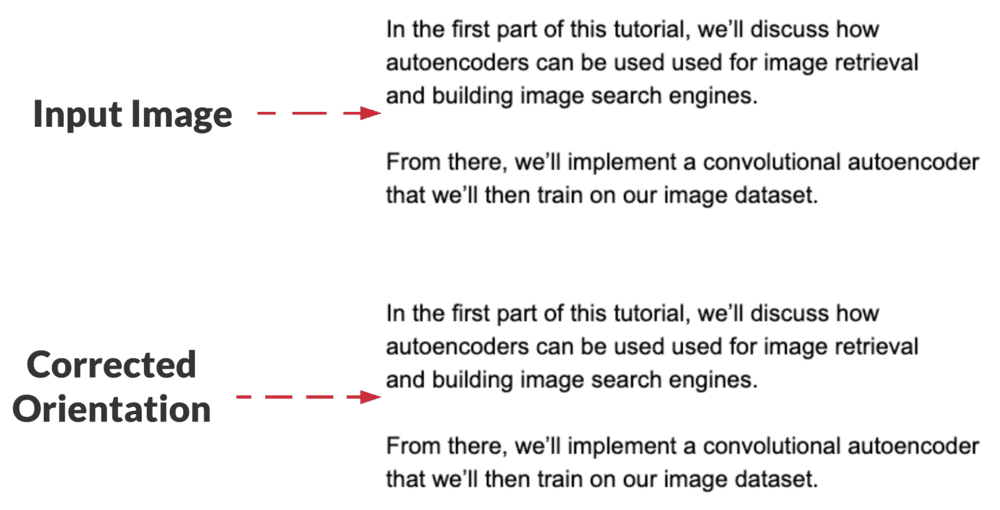

Figure 3 displays the results of our script and orientation detection. Notice that the input image has not been rotated, implying the orientation is 0°. No rotation correction is required. The script is then detected as “Latin.”
Let’s try another image, this one with rotated text:
$ python detect_orientation.py --image images/rotated_90_clockwise.png [INFO] detected orientation: 90 [INFO] rotate by 270 degrees to correct [INFO] detected script: Latin

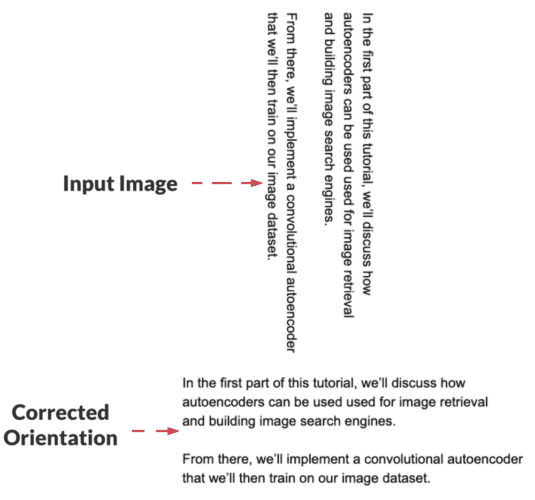

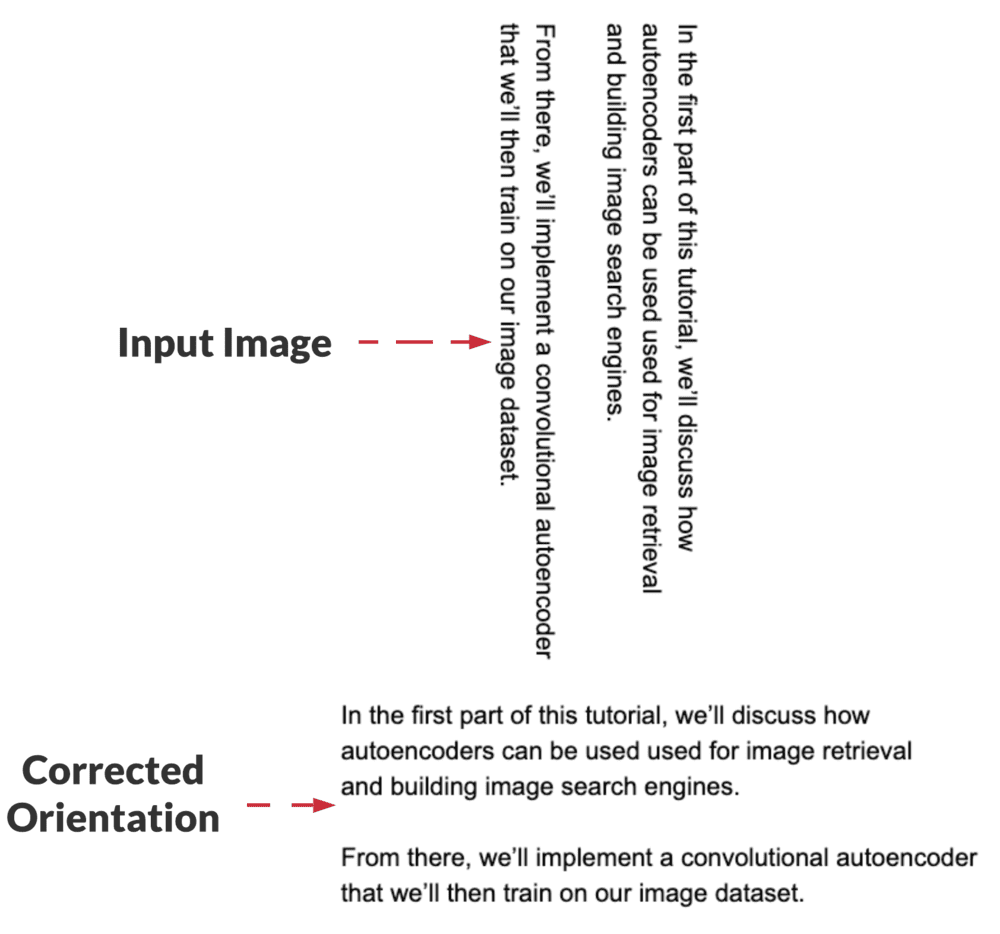

Figure 4 shows the original input image, which contains rotated text. Using Tesseract in OSD mode, we can detect that the text in the input image has an orientation of 90° — we can correct this orientation by rotating the image 270° (i.e., −90°). And once again, the detected script is Latin.
We’ll wrap up this tutorial with one final example, this one of non-Latin text:
$ python detect_orientation.py \ --image images/rotated_90_counter_clockwise_hebrew.png [INFO] detected orientation: 270 [INFO] rotate by 90 degrees to correct [INFO] detected script: Hebrew

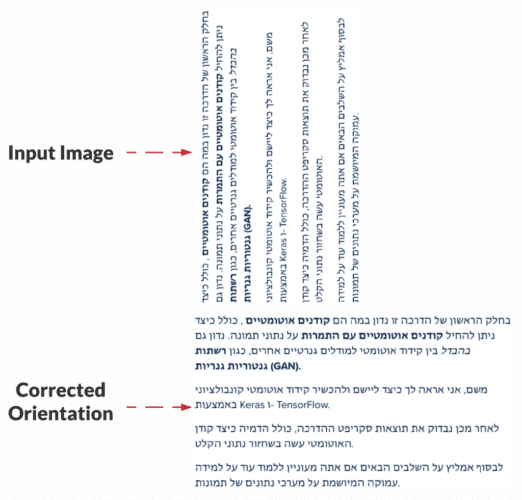

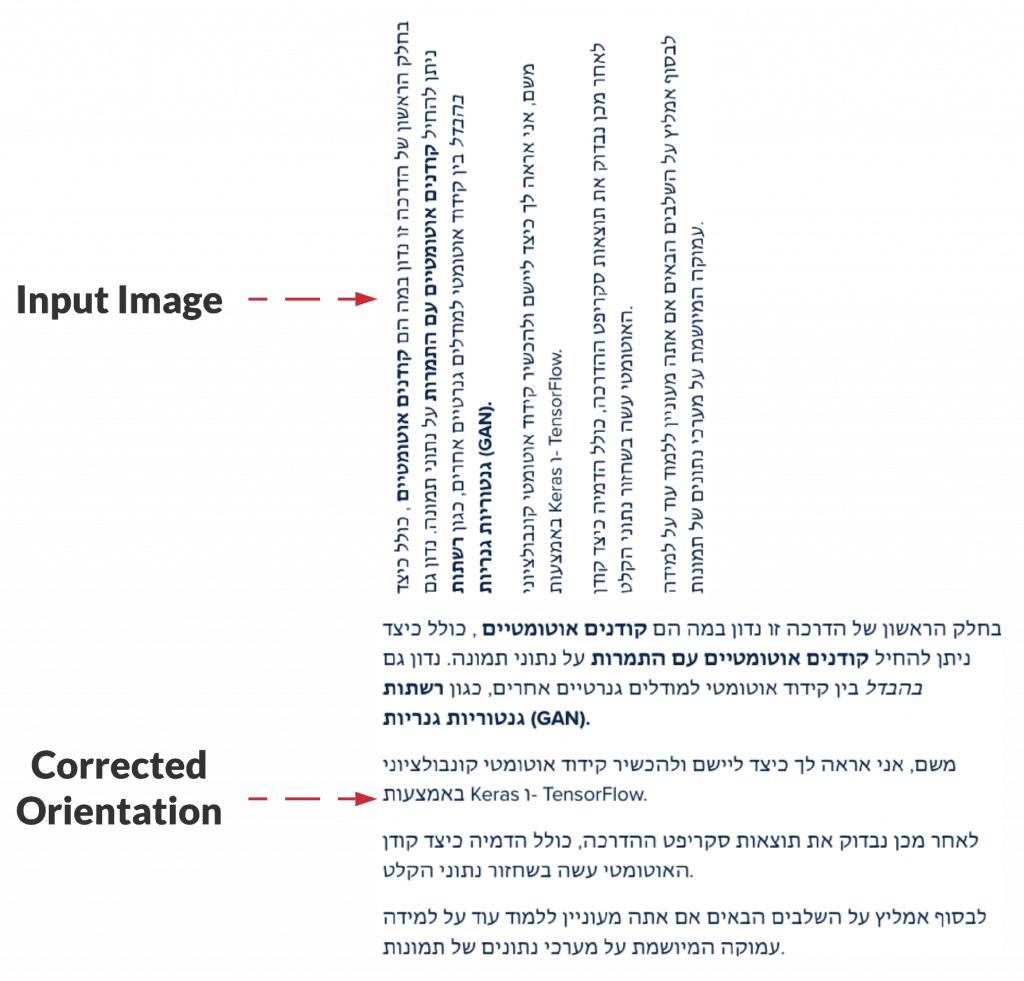

Figure 5 shows our input text image. We then detect the script (Hebrew) and correct its orientation by rotating the text 90°.
As you can see, Tesseract makes text OSD easy!
What's next? We recommend PyImageSearch University.
84 total classes • 114+ hours of on-demand code walkthrough videos • Last updated: February 2024
★★★★★ 4.84 (128 Ratings) • 16,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 86 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 86 Certificates of Completion
- ✓ 115+ hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 540+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
Summary
In this tutorial, you learned how to perform automatic text orientation detection and correction using Tesseract’s orientation and script detection (OSD) mode.
The OSD mode provides us with meta-data of the text in the image, including both estimated text orientation and script/writing system detection. The text orientation refers to the angle (in degrees) of the text in the image. When performing OCR, we can obtain higher accuracy by correcting for the text orientation. Script detection, on the other hand, refers to the writing system of the text, which could be Latin, Hanzi, Arabic, Hebrew, etc.
