In this tutorial, you will learn how to perform image alignment and image registration using OpenCV.
Image alignment and registration have a number of practical, real-world use cases, including:
- Medical: MRI scans, SPECT scans, and other medical scans produce multiple images. To help doctors and physicians better interpret these scans, image registration can be used to align multiple images together and overlay them on top of each other. From there the doctor can read the results and provide a more accurate diagnosis.
- Military: Automatic Target Recognition (ATR) algorithms accept multiple input images of the target, align them, and refine their internal parameters to improve target recognition.
- Optical Character Recognition (OCR): Image alignment (often called document alignment in the context of OCR) can be used to build automatic form, invoice, or receipt scanners. We first align the input image to a template of the document we want to scan. From there OCR algorithms can read the text from each individual field.
In the context of this tutorial, we’ll be looking at image alignment through the perspective of document alignment/registration, which is often used in Optical Character Recognition (OCR) applications.
Today, we’ll be covering the fundamentals of image registration and alignment. Next week, we’ll incorporate image alignment with Optical Character Recognition (OCR), allowing us to create a document, form, and invoice scanner that aligns an input image with a template document and then extracts the text from each field in the document.
Note: Portions of this tutorial appear in my upcoming book OCR with OpenCV, Tesseract, and Python.
To learn how to perform image alignment and registration with OpenCV, just keep reading.
Image alignment and registration with OpenCV
In the first part of this tutorial, we’ll briefly discuss what image alignment and registration is. We’ll learn how OpenCV can help us align and register our images using keypoint detectors, local invariant descriptors, and keypoint matching.
Next, we’ll implement a helper function,
align_images, which as the name suggests, will allow us to align two images based on keypoint correspondences.
I’ll then show you how to use the
align_document function to align an input image with a template.
Ready to get started?
Then let’s dive in!
What is image alignment and registration?
Image alignment and registration is the process of:
- Accepting two input images that contain the same object but at slightly different viewing angles
- Automatically computing the homography matrix used to align the images (whether that be featured-based keypoint correspondences, similarity measures, or even deep neural networks that automatically learn the transformation)
- Taking that homography matrix and applying a perspective warp to align the images together
For example, let’s consider the following figure:

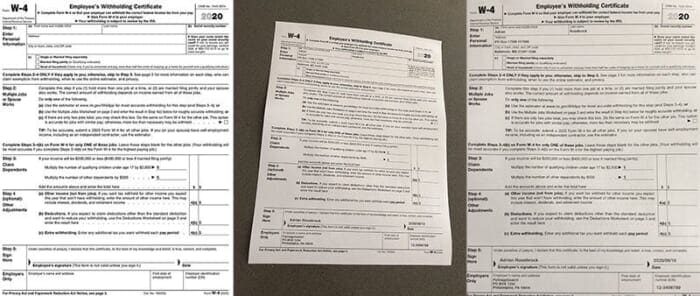

In Figure 1 (left) we have a template of a W-4 form, which is a United States Internal Revenue Service (IRS) tax form that employees fill out so that employers know how much tax to withhold from their paycheck (depending on deductions, filing status, etc.).
I have partially filled out a W-4 form with faux data and then captured a photo of it with my phone (middle).
Finally, you can see the output image alignment and registration on the right — notice how the input image is now aligned with the template.
In next week’s tutorial, you’ll learn how to OCR each of the individual fields from the input document and associate them with the fields in the template. For now though, we’ll only be learning how to align a form with its template as an important pre-processing step before applying OCR.
While we’re examining image alignment and registration from an OCR perspective, be aware the same principles hold for other domains too.
How can OpenCV help with image alignment and registration?
There are a number of image alignment and registration algorithms:
- The most popular image alignment algorithms are feature-based and include keypoint detectors (DoG, Harris, GFFT, etc.), local invariant descriptors (SIFT, SURF, ORB, etc.), and keypoint matching (RANSAC and its variants).
- Medical applications often use similarity measures for image registration, typically cross-correlation, sum of squared intensity differences, and mutual information.
- With the resurgence of neural networks, deep learning can even be used for image alignment by automatically learning the homography transform.
We’ll be implementing image alignment and registration using feature-based methods.

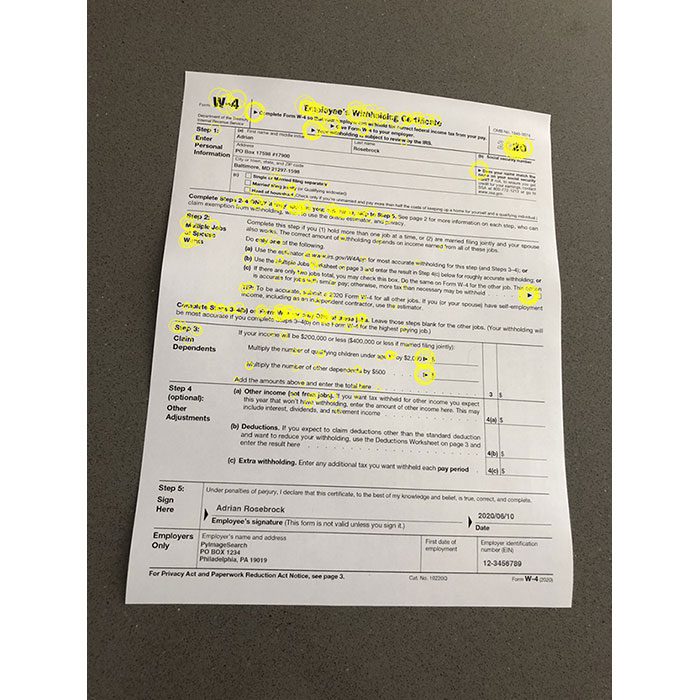

Feature-based methods start with detecting keypoints in our two input images:
Keypoints are meant to identify salient regions of an input image.
For each keypoint, we extract local invariant descriptors, which quantify the region surrounding each keypoint in the input image.
SIFT features, for example, are 128-d, so if we detected 528 keypoints in a given input image, then we’ll have a total of 528 vectors, each of which is 128-d.
Given our features, we apply algorithms such as RANSAC to match our keypoints and determine their correspondences:

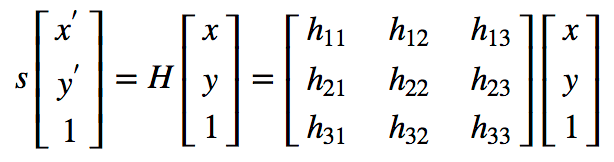

Provided we have enough keypoint matches and correspondences, we can then compute a homography matrix, which allows us to apply a perspective warp to align the images:
You’ll be learning how to build an OpenCV project that accomplishes image alignment and registration via a homography matrix in the remainder of this tutorial.
For more details on homography matrix construction and the role it plays in computer vision, be sure to refer to this OpenCV reference.
Configuring your OCR development environment
If you have not already configured TensorFlow and the associated libraries from last week’s tutorial, I first recommend following the relevant tutorial linked below:
The tutorials above will help you configure your system with all the necessary software for this blog post in a convenient Python virtual environment.
Take a moment to find the “Downloads” section of this tutorial and grab both the code and example tax forms we’ll use here today. Inside, you’ll find the following:
$ tree --dirsfirst . ├── pyimagesearch │ ├── alignment │ │ ├── __init__.py │ │ └── align_images.py │ └── __init__.py ├── scans │ ├── scan_01.jpg │ └── scan_02.jpg ├── align_document.py └── form_w4.png 3 directories, 7 files
We have a simple project structure for this tutorial consisting of the following images:
: Contains two JPG testing photos of a tax form
: Our template image of the official 2020 IRS W-4 form
Additionally, we’ll be reviewing two Python files:
align_images.py: Holds our helper function which aligns a scan to a template by means of an OpenCV pipeline
: Our driver file in the main directory which brings all the pieces together to perform image alignment and registration with OpenCV
In the next section, we’ll work on implementing our helper utility for aligning images.
Aligning images with OpenCV and keypoint matching
We are now ready to implement image alignment and registration using OpenCV. For the purposes of this section, we’ll be attempting to align the following images:
On the left we have our template W-4 form, while on the right we have a sample W-4 form I have filled out and captured with my phone.
The end goal is to align these images such that their fields match up (allowing us to OCR each field in next week’s tutorial).
Let’s get started!
align_images.py, and let’s work on the script together:
# import the necessary packages import numpy as np import imutils import cv2 def align_images(image, template, maxFeatures=500, keepPercent=0.2, debug=False): # convert both the input image and template to grayscale imageGray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY) templateGray = cv2.cvtColor(template, cv2.COLOR_BGR2GRAY)
Our helper script requires OpenCV and imutils; you can follow the “Configuring your OCR development environment” section above to install both of these packages on your system. NumPy is an OpenCV prerequisite and will also be installed.
align_images function begins on Line 6 and accepts five parameters:
: Our input photo/scan of a form (such as the IRS W-4). The form itself, from an arbitrary viewpoint, should be identical to the
templateimage but with form data present.
template: The template form image.
: Places an upper bound on the number of candidate keypoint regions to consider.
: Designates the percentage of keypoint matches to keep, effectively allowing us to eliminate noisy keypoint matching results
: A flag indicating whether to display the matched keypoints. By default, keypoints are not displayed; however I recommend setting this value to
Truefor debugging purposes.
Given that we have defined our function, let’s implement our image processing pipeline. Diving in, the first action we take is converting both our
template to grayscale (Lines 9 and 10).
Next, we will detect keypoints, extract local binary features, and correlate these features between our input image and the template:
# use ORB to detect keypoints and extract (binary) local # invariant features orb = cv2.ORB_create(maxFeatures) (kpsA, descsA) = orb.detectAndCompute(imageGray, None) (kpsB, descsB) = orb.detectAndCompute(templateGray, None) # match the features method = cv2.DESCRIPTOR_MATCHER_BRUTEFORCE_HAMMING matcher = cv2.DescriptorMatcher_create(method) matches = matcher.match(descsA, descsB, None)
We use the ORB algorithm to detect keypoints and extract binary local invariant features (Lines 14-16). The Hamming method computes the distance between these binary features to find the best matches (Lines 19-21). You can learn more about the keypoint detection and local binary patterns in my Local Binary Patterns with Python & OpenCV tutorial or in my PyImageSearch Gurus Course.
As we now have our keypoint
matches, our next steps include sorting, filtering, and displaying:
# sort the matches by their distance (the smaller the distance, # the "more similar" the features are) matches = sorted(matches, key=lambda x:x.distance) # keep only the top matches keep = int(len(matches) * keepPercent) matches = matches[:keep] # check to see if we should visualize the matched keypoints if debug: matchedVis = cv2.drawMatches(image, kpsA, template, kpsB, matches, None) matchedVis = imutils.resize(matchedVis, width=1000) cv2.imshow("Matched Keypoints", matchedVis) cv2.waitKey(0)
Here, we sort the
matches (Line 25) by their distance. The smaller the distance, the more similar the two keypoint regions are.
Lines 28 and 29 keep only the top
matches — otherwise we risk introducing noise.

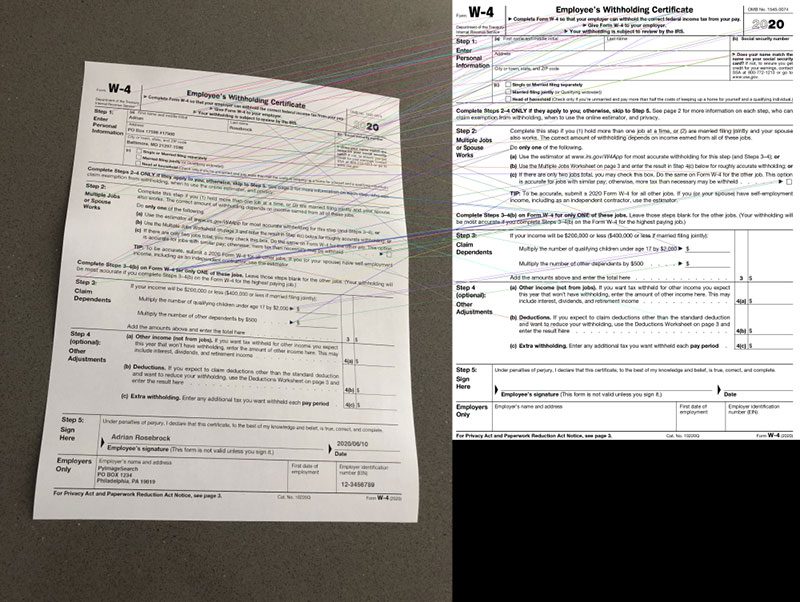

If we are in
debug mode, we will use
cv2.drawMatches to visualize the matches using OpenCV drawing methods (Lines 32-37), an example of which is shown in Figure 6:
Next, we will conduct a couple of steps prior to computing our homography matrix:
# allocate memory for the keypoints (x, y)-coordinates from the # top matches -- we'll use these coordinates to compute our # homography matrix ptsA = np.zeros((len(matches), 2), dtype="float") ptsB = np.zeros((len(matches), 2), dtype="float") # loop over the top matches for (i, m) in enumerate(matches): # indicate that the two keypoints in the respective images # map to each other ptsA[i] = kpsA[m.queryIdx].pt ptsB[i] = kpsB[m.trainIdx].pt
Here we are:
- Allocating memory to store the keypoints (
ptsB) for our top
- Initiating a loop over our top
matches, and inside indicating that A and B keypoints map to one another
Given our organized pairs of keypoint matches, now we’re ready to align our image:
# compute the homography matrix between the two sets of matched # points (H, mask) = cv2.findHomography(ptsA, ptsB, method=cv2.RANSAC) # use the homography matrix to align the images (h, w) = template.shape[:2] aligned = cv2.warpPerspective(image, H, (w, h)) # return the aligned image return aligned
Aligning our image can be boiled down to our final two steps:
- Find our homography matrix using the keypoints and RANSAC algorithm (Line 54).
- Align our image by means of applying a warp perspective (
cv2.warpPerspective) to our
H(Lines 57 and 58). This
alignedimage result is returned to the caller via Line 61.
Congratulations! You have completed the most technical part of the tutorial.
Note: A big thanks to Satya over at LearnOpenCV for his concise implementation of keypoint matching, which ours is based on.
Implementing our OpenCV image alignment script
Now that we have the
align_images function at our disposal, we need to develop a driver script that:
- Loads an image and template from disk
- Performs image alignment and registration
- Displays the aligned images to our screen to verify that our image registration process is working properly
align_document.py, and let’s review it to see how we can accomplish exactly that:
# import the necessary packages from pyimagesearch.alignment import align_images import numpy as np import argparse import imutils import cv2 # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", required=True, help="path to input image that we'll align to template") ap.add_argument("-t", "--template", required=True, help="path to input template image") args = vars(ap.parse_args())
The key import on Lines 2-6 that should stand out is
align_images, a function which we implemented in the previous section.
Our script requires two command line arguments:
--image: The path to the input image scan or photo
--template: Our template image path; this could be an official company form or in our case the 2020 IRS W-4 template image
Our next step is to align our two input images:
# load the input image and template from disk print("[INFO] loading images...") image = cv2.imread(args["image"]) template = cv2.imread(args["template"]) # align the images print("[INFO] aligning images...") aligned = align_images(image, template, debug=True)
After loading both our input
--image and input
--template (Lines 18 and 19), we take advantage of our helper routine,
align_images, passing each as a parameter (Line 23).
Notice how I’ve set the
debug flag to
True indicating that I’d like the matches to be annotated. When you make the
align_images function part of a real OCR pipeline like we’ll do next week, you would turn the debugging option off.
For our purposes this week, we’re going to visualize our results in two ways:
- Stacked side-by-side
- Overlayed on top of one another
These visual representations of our results will allow us to determine if alignment is/was successful.
Let’s prepare our
aligned image for a stacked comparison with its
# resize both the aligned and template images so we can easily # visualize them on our screen aligned = imutils.resize(aligned, width=700) template = imutils.resize(template, width=700) # our first output visualization of the image alignment will be a # side-by-side comparison of the output aligned image and the # template stacked = np.hstack([aligned, template])
Lines 27 and 28 resize the two images such that they will fit on our screen. We then use
np.hstack to stack our images next to each other so that we can easily inspect the results (Line 33).
And now let’s overlay the
template form on top of the
# our second image alignment visualization will be *overlaying* the # aligned image on the template, that way we can obtain an idea of # how good our image alignment is overlay = template.copy() output = aligned.copy() cv2.addWeighted(overlay, 0.5, output, 0.5, 0, output) # show the two output image alignment visualizations cv2.imshow("Image Alignment Stacked", stacked) cv2.imshow("Image Alignment Overlay", output) cv2.waitKey(0)
In addition to the side-by-side stacked visualization from above, an alternate visualization is to overlay the input image on the template so we can readily see the amount of misalignment. Lines 38-40 use OpenCV’s
cv2.addWeighted to transparently blend the two images into a single
output image with the pixels from each image having equal weight.
Finally, we display our two visualizations on screen (Lines 43-45).
Well done! It is now time to inspect our results.
OpenCV image alignment and registration results
We are now ready to apply image alignment and registration using OpenCV!
Use the “Downloads” section of this tutorial to download the source code and example images. From there, open up a terminal, and execute the following command:
$ python align_document.py --template form_w4.png --image scans/scan_01.jpg [INFO] loading images... [INFO] aligning images...
The image above shows our input image,
scan_01.jpg — notice how this image has been captured with my smartphone at a non-90 degree viewing angle (i.e., not a top-down, bird’s eye view of the input image).
We then apply image alignment and registration, resulting in the following:
On the left you can see the input image (after alignment), while the right shows the original W-4 template image.
Notice how the two images have been automatically aligned using keypoint matching!
An alternate visualization can be seen below:

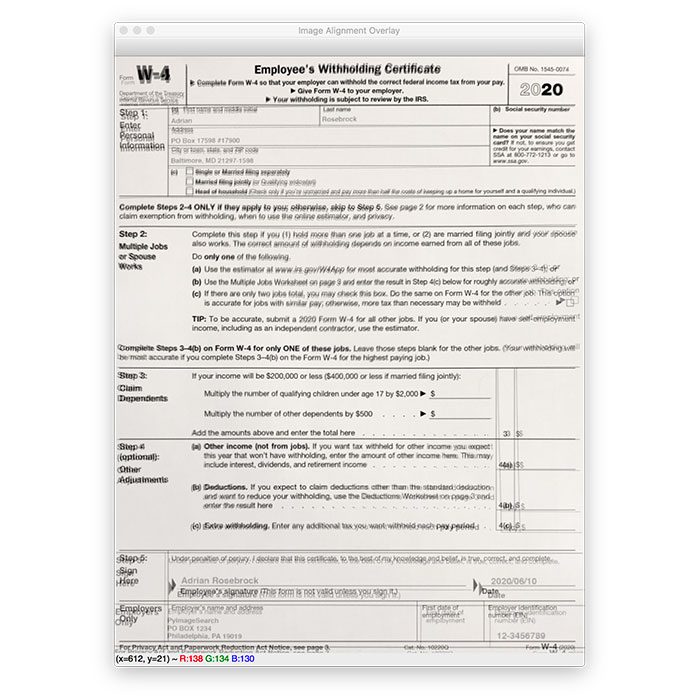

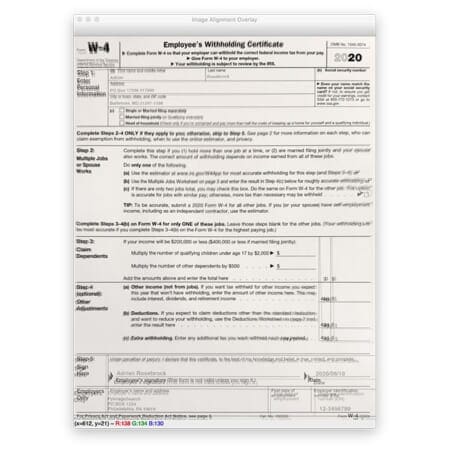

Here we have overlayed the output aligned image on top of the template.
Our alignment isn’t perfect (obtaining a pixel-perfect alignment is incredibly challenging and in some cases, unrealistic), but the fields of the form are sufficiently aligned such that we’ll be able to OCR the text and associate the fields together (which we’ll cover in next week’s tutorial).
Note: I recommend you take a look at the full resolution output image here so you can see the differences in the alignment overlay.
Let’s try another example image:
$ python align_document.py --template form_w4.png --image scans/scan_02.jpg [INFO] loading images... [INFO] aligning images...
scan_02.jpg image contains the same form but captured at a different viewing angle

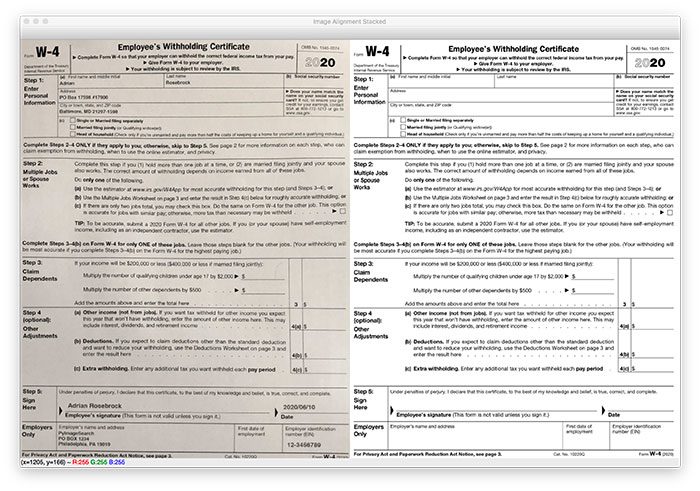

By applying image alignment and registration, we are able to align the input image with the

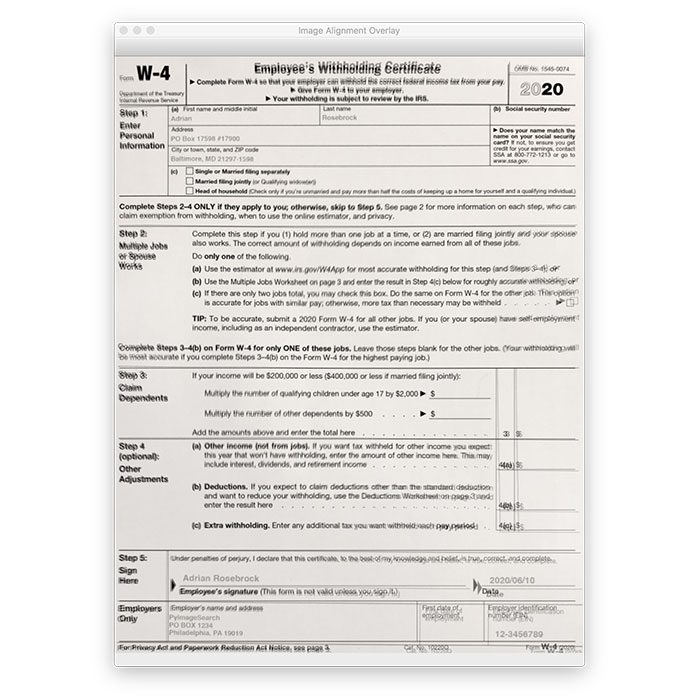

And here you can see the overlay visualization:
Next week, you will learn how to apply OCR to our aligned documents, allowing us to OCR each field and then associate fields from the input image to the original template.
It’s going to be a great tutorial, you definitely don’t want to miss it!
What's next? I recommend PyImageSearch University.
69 total classes • 73 hours of on-demand code walkthrough videos • Last updated: March 2023
★★★★★ 4.84 (128 Ratings) • 15,800+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 74 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 74 Certificates of Completion
- ✓ 84 hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 500+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
In this tutorial, you learned how to perform image alignment and registration using OpenCV.
Image alignment has a number of use cases, including medical scans, military-based automatic target acquisition, and satellite image analysis.
We chose to examine image alignment from one of the most important (and most utilized) purposes — Optical Character Recognition (OCR).
Applying image alignment to an input image allows us to align it with a template document. Once we have the input image aligned with the template, we can apply OCR to recognize the text in each of the individual fields. And since we know the location of each of the fields in the document, it becomes easy to associate the OCR’d text with each field.
Next week, I’ll be showing you how to take our image alignment script and extend it to OCR each field in our input document.
Stay tuned for the next post; you don’t want to miss it!
To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
Download the Source Code and FREE 17-page Resource Guide
Enter your email address below to get a .zip of the code and a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL!
Hey, Adrian Rosebrock here, author and creator of PyImageSearch. While I love hearing from readers, a couple years ago I made the tough decision to no longer offer 1:1 help over blog post comments.
At the time I was receiving 200+ emails per day and another 100+ blog post comments. I simply did not have the time to moderate and respond to them all, and the sheer volume of requests was taking a toll on me.
Instead, my goal is to do the most good for the computer vision, deep learning, and OpenCV community at large by focusing my time on authoring high-quality blog posts, tutorials, and books/courses.
If you need help learning computer vision and deep learning, I suggest you refer to my full catalog of books and courses — they have helped tens of thousands of developers, students, and researchers just like yourself learn Computer Vision, Deep Learning, and OpenCV.
Click here to browse my full catalog.
