OpenCV GrabCut: Foreground Segmentation and Extraction

In this tutorial, you will learn how to use OpenCV and GrabCut to perform foreground segmentation and extraction.

Prior to deep learning and instance/semantic segmentation networks such as Mask R-CNN, U-Net, etc., GrabCut was the method to accurately segment the foreground of an image from the background.

The GrabCut algorithm works by:

• Accepting an input image with either (1) a bounding box that specified the location of the object in the image we wanted to segment or (2) a mask that approximated the segmentation
• Iteratively performing the following steps:
  • Step #1: Estimating the color distribution of the foreground and background via a Gaussian Mixture Model (GMM)
  • Step #2: Constructing a Markov random field over the pixels labels (i.e., foreground vs. background)
  • Step #3: Applying a graph cut optimization to arrive at the final segmentation

Sounds complicated, doesn’t it?

Luckily, OpenCV has an implementation of GrabCut via the cv2.grabCut function that makes applying GrabCut a breeze (once you know the parameters to the function and how to tweak them, of course).

But before you go saying:

Hey Adrian, isn’t the GrabCut algorithm old news?

Shouldn’t we just be applying Mask R-CNN, U-Net, or other image segmentation networks to segment background and foreground instead?

The above is the perfect example of how deep learning and traditional computer vision are being blended together.

If you’ve ever used Mask R-CNN or U-Net before, you know these deep neural networks are super powerful, but the masks are not always perfect. In practice, you can actually use GrabCut to clean up these segmentation masks (and I’ll be showing you how to do that in a future post).

But in the meantime, let’s learn about the fundamentals of GrabCut.

To learn how to use OpenCV and GrabCut for foreground segmentation, just keep reading.

OpenCV GrabCut: Foreground Segmentation and Extraction

In the first part of this tutorial, we’ll discuss GrabCut, its implementation in OpenCV via the cv2.grabCut function, and its associated parameters.

From there, we’ll learn how to implement GrabCut with OpenCV via both:

1. GrabCut initialization with bounding boxes
2. GrabCut initialization with mask approximations

Afterward, we’ll apply GrabCut and review our results.

GrabCut in OpenCV

The cv2.grabCut function has the following signature:

grabCut(img, mask, rect, bgdModel, fgdModel, iterCount[, mode]) ->
	mask, bgdModel, fgdModel

To obtain a complete understanding of the implementation, let’s review each of these parameters:

• img: The input image, which GrabCut assumes to be an 8-bit, 3-channel image (i.e., unsigned 8-bit integer in BGR channel ordering).
• mask: The input/output mask. This mask is assumed to be a single-channel image with an unsigned 8-bit integer data type. This mask is initialized automatically if you use bounding box initialization (i.e., cv2.GC_INIT_WITH_RECT); otherwise, GrabCut assumes you are performing mask initialization (cv2.GC_INIT_WITH_MASK).
• rect: The bounding box rectangle that contains the region that we want to segment. This parameter is only used when you set the mode to cv2.GC_INIT_WITH_MASK).
• bgModel: Temporary array used by GrabCut internally when modeling the background.
• fgModel: Temporary array used by GrabCut when modeling the foreground.
• iterCount: Number of iterations GrabCut will perform when modeling the foreground versus background. The more iterations, the longer GrabCut will run, and ideally the results will be better.
• mode: Either cv2.GC_INIT_WITH_RECT or cv2.GC_INIT_WITH_MASK, depending on whether you are initializing GrabCut with a bounding box or a mask, respectively.

Now that we have an understanding of the cv2.grabCut function including its parameters and the values that it returns, let’s move on to applying GrabCut to an example computer vision project.

Configuring your development environment

You can set up your system today with a Python virtual environment containing OpenCV by following my pip install opencv tutorial (instructions included for Ubuntu, macOS, and Raspbian).

Please note that PyImageSearch does not recommend or support Windows for computer vision and deep learning development.

Project structure

Before we move on, use the “Downloads” section of today’s tutorial to grab the .zip associated with this blog post. From there, let’s inspect the layout of the files and folders directly in our terminal with the tree command:

$ tree --dirsfirst
.
├── images
│   ├── adrian.jpg
│   ├── lighthouse.png
│   └── lighthouse_mask.png
├── grabcut_bbox.py
└── grabcut_mask.py

1 directory, 5 files

Using both of the Python scripts, we are going to learn how to perform GrabCut using two methods (bounding box initialization vs. mask initialization). We’ll begin with the bounding box approach in the next section.

GrabCut with OpenCV: Initialization with bounding boxes

Let’s get started implementing GrabCut with OpenCV — we’ll start by reviewing the bounding box implementation method.

Here, we’ll specify the bounding box of the object we want to segment in the image. The bounding box could be generated by:

• Manually examining the image and labeling the (x, y)-coordinates of the bounding box
• Applying a Haar cascade
• Using HOG + Linear SVM to detect the object
• Utilizing deep learning-based object detectors such as Faster R-CNN, SSDs, YOLO, etc.

As long as the algorithm generates a bounding box, you can use it in conjunction with GrabCut.

For the purposes of our demo script today, we will manually define the bounding box (x, y)-coordinates (i.e., rather than applying an automated object detector).

Let’s take a look at the bounding box initialization method of GrabCut now.

Open up a new file, name it grabcut_bbox.py, and insert the following code:

# import the necessary packages
import numpy as np
import argparse
import time
import cv2
import os

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-i", "--image", type=str,
	default=os.path.sep.join(["images", "adrian.jpg"]),
	help="path to input image that we'll apply GrabCut to")
ap.add_argument("-c", "--iter", type=int, default=10,
	help="# of GrabCut iterations (larger value => slower runtime)")
args = vars(ap.parse_args())

We begin this script with a selection of imports, namely OpenCV and NumPy (the rest are built into Python). Please refer to the “Configuring your development environment” section above to install Python, OpenCV, and associated software on your system.

Our script handles two command line arguments:

# load the input image from disk and then allocate memory for the
# output mask generated by GrabCut -- this mask should hae the same
# spatial dimensions as the input image
image = cv2.imread(args["image"])
mask = np.zeros(image.shape[:2], dtype="uint8")

# define the bounding box coordinates that approximately define my
# face and neck region (i.e., all visible skin)
rect = (151, 43, 236, 368)

Line 25 defines the bounding box coordinates of the face in the image. These (x, y)-coordinates were determined manually by means of a mouse hovering over pixels in the image and me jotting them down. You can accomplish this with most photo editing software including Photoshop or free alternatives such as GIMP and other apps you find online.

# allocate memory for two arrays that the GrabCut algorithm internally
# uses when segmenting the foreground from the background
fgModel = np.zeros((1, 65), dtype="float")
bgModel = np.zeros((1, 65), dtype="float")

# apply GrabCut using the the bounding box segmentation method
start = time.time()
(mask, bgModel, fgModel) = cv2.grabCut(image, mask, rect, bgModel,
	fgModel, iterCount=args["iter"], mode=cv2.GC_INIT_WITH_RECT)
end = time.time()
print("[INFO] applying GrabCut took {:.2f} seconds".format(end - start))

# the output mask has for possible output values, marking each pixel
# in the mask as (1) definite background, (2) definite foreground,
# (3) probable background, and (4) probable foreground
values = (
	("Definite Background", cv2.GC_BGD),
	("Probable Background", cv2.GC_PR_BGD),
	("Definite Foreground", cv2.GC_FGD),
	("Probable Foreground", cv2.GC_PR_FGD),
)

# loop over the possible GrabCut mask values
for (name, value) in values:
	# construct a mask that for the current value
	print("[INFO] showing mask for '{}'".format(name))
	valueMask = (mask == value).astype("uint8") * 255

	# display the mask so we can visualize it
	cv2.imshow(name, valueMask)
	cv2.waitKey(0)

# we'll set all definite background and probable background pixels
# to 0 while definite foreground and probable foreground pixels are
# set to 1
outputMask = np.where((mask == cv2.GC_BGD) | (mask == cv2.GC_PR_BGD),
	0, 1)

# scale the mask from the range [0, 1] to [0, 255]
outputMask = (outputMask * 255).astype("uint8")

# apply a bitwise AND to the image using our mask generated by
# GrabCut to generate our final output image
output = cv2.bitwise_and(image, image, mask=outputMask)

Here we produce two visualizations:

1. GrabCut output mask
2. Output image (with the background masked out)

# show the input image followed by the mask and output generated by
# GrabCut and bitwise masking
cv2.imshow("Input", image)
cv2.imshow("GrabCut Mask", outputMask)
cv2.imshow("GrabCut Output", output)
cv2.waitKey(0)

Now that GrabCut with bounding box initialization has been implemented, let’s move on to applying it to our input images.

Bounding box GrabCut results

Start by using the “Downloads” section of this blog post to download the source code and example image.

From there, open up a terminal, and execute the following command:

$ python grabcut_bbox.py
[INFO] applying GrabCut took 1.08 seconds
[INFO] showing mask for 'Definite Background'
[INFO] showing mask for 'Probable Background'
[INFO] showing mask for 'Definite Foreground'
[INFO] showing mask for 'Probable Foreground'

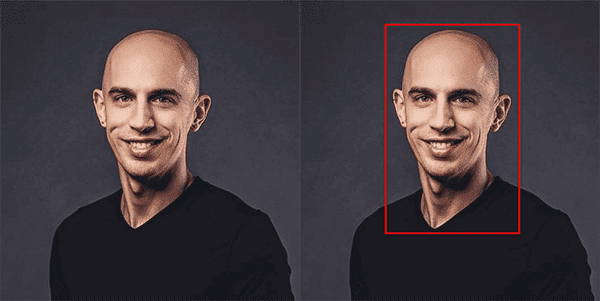

On the left, you can see the original input image, while on the right, you can see the same face with a bounding box drawn around the face/neck region (this bounding box corresponds to the rect variable in the grabcut_bbox.py script).

Our goal here is to automatically segment the face and neck region from the above image using GrabCut and OpenCV.

Next, you can see our output from Lines 45-60 where we visualize the definite and probable background and foreground segmentations:

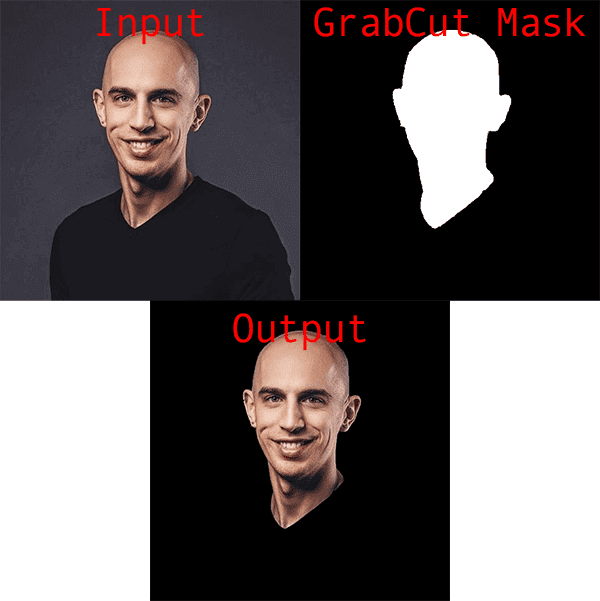

Finally, we have the output of GrabCut itself:

On the left, we have our original input image.

The right shows the output mask generated by GrabCut, while the bottom shows the output of applying the mask to the input image — notice how my face and neck region is cleanly segmented and extracted via GrabCut.

GrabCut with OpenCV: Initialization with masks

Previously, we learned how to initialize OpenCV’s GrabCut using bounding boxes — but there’s actually a second method to initialize GrabCut.

Using masks, we can supply the approximate segmentation of the object in the image. GrabCut can then iteratively apply graph cuts to improve the segmentation and extract the foreground from the image.

These masks could be generated by:

• Manually creating them in photo editing software such as Photoshop, GIMP, etc.
• Applying basic image processing operations such as thresholding, edge detection, contour filtering, etc.
• Utilizing deep learning-based segmentation networks (ex., Mask R-CNN and U-Net)

How the mask is generated is irrelevant to GrabCut. As long as you have a mask that approximates the segmentation of the object in an image, you can use GrabCut to further improve the segmentation.

Let’s see how GrabCut with mask initialization works.

Open up the grabcut_mask.py file in your project directory structure, and insert the following code:

# import the necessary packages
import numpy as np
import argparse
import time
import cv2
import os

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-i", "--image", type=str,
	default=os.path.sep.join(["images", "lighthouse.png"]),
	help="path to input image that we'll apply GrabCut to")
ap.add_argument("-mask", "--mask", type=str,
	default=os.path.sep.join(["images", "lighthouse_mask.png"]),
	help="path to input mask")
ap.add_argument("-c", "--iter", type=int, default=10,
	help="# of GrabCut iterations (larger value => slower runtime)")
args = vars(ap.parse_args())

Again, our most notable imports are OpenCV and NumPy. Please follow the “Configuring your development environment” section instructions if you need to set up your system to perform GrabCut with mask initialization.

# load the input image and associated mask from disk
image = cv2.imread(args["image"])
mask = cv2.imread(args["mask"], cv2.IMREAD_GRAYSCALE)

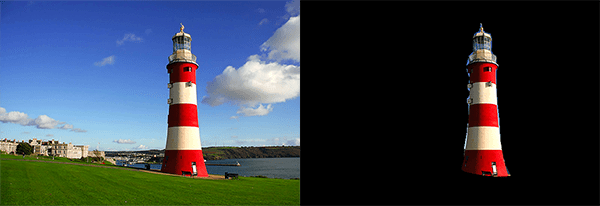

# apply a bitwise mask to show what the rough, approximate mask would
# give us
roughOutput = cv2.bitwise_and(image, image, mask=mask)

# show the rough, approximated output
cv2.imshow("Rough Output", roughOutput)
cv2.waitKey(0)

# any mask values greater than zero should be set to probable
# foreground
mask[mask > 0] = cv2.GC_PR_FGD
mask[mask == 0] = cv2.GC_BGD

# allocate memory for two arrays that the GrabCut algorithm internally
# uses when segmenting the foreground from the background
fgModel = np.zeros((1, 65), dtype="float")
bgModel = np.zeros((1, 65), dtype="float")

# apply GrabCut using the the mask segmentation method
start = time.time()
(mask, bgModel, fgModel) = cv2.grabCut(image, mask, None, bgModel,
	fgModel, iterCount=args["iter"], mode=cv2.GC_INIT_WITH_MASK)
end = time.time()
print("[INFO] applying GrabCut took {:.2f} seconds".format(end - start))

# the output mask has for possible output values, marking each pixel
# in the mask as (1) definite background, (2) definite foreground,
# (3) probable background, and (4) probable foreground
values = (
	("Definite Background", cv2.GC_BGD),
	("Probable Background", cv2.GC_PR_BGD),
	("Definite Foreground", cv2.GC_FGD),
	("Probable Foreground", cv2.GC_PR_FGD),
)

# loop over the possible GrabCut mask values
for (name, value) in values:
	# construct a mask that for the current value
	print("[INFO] showing mask for '{}'".format(name))
	valueMask = (mask == value).astype("uint8") * 255

	# display the mask so we can visualize it
	cv2.imshow(name, valueMask)
	cv2.waitKey(0)

# set all definite background and probable background pixels to 0
# while definite foreground and probable foreground pixels are set
# to 1, then scale teh mask from the range [0, 1] to [0, 255]
outputMask = np.where((mask == cv2.GC_BGD) | (mask == cv2.GC_PR_BGD),
	0, 1)
outputMask = (outputMask * 255).astype("uint8")

# apply a bitwise AND to the image using our mask generated by
# GrabCut to generate our final output image
output = cv2.bitwise_and(image, image, mask=outputMask)

# show the input image followed by the mask and output generated by
# GrabCut and bitwise masking
cv2.imshow("Input", image)
cv2.imshow("GrabCut Mask", outputMask)
cv2.imshow("GrabCut Output", output)
cv2.waitKey(0)

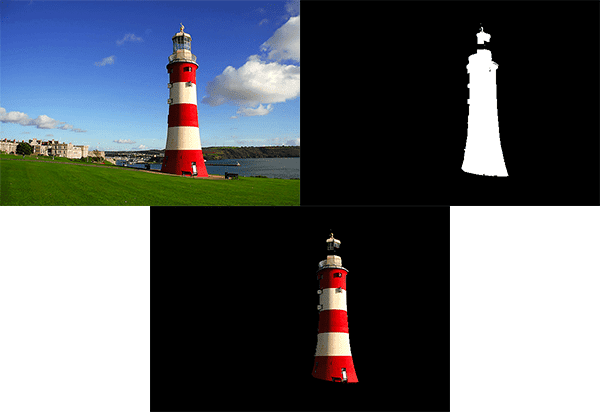

Again, to conclude our script, we show the input image, GrabCut outputMask, and output of GrabCut after applying the mask.

With GrabCut mask initialization now implemented, let’s move on to testing it with our own example images.

Mask GrabCut results

We are now ready to use OpenCV and GrabCut to segment an image via mask initialization.

Start by using the “Downloads” section of this tutorial to download the source code and example images.

From there, open up a terminal, and execute the following command:

$ python grabcut_mask.py
[INFO] applying GrabCut took 0.56 seconds
[INFO] showing mask for 'Definite Background'
[INFO] showing mask for 'Probable Background'
[INFO] showing mask for 'Definite Foreground'
[INFO] showing mask for 'Probable Foreground'

On the left, you can see our original input image. On the right you can see the output of applying GrabCut via mask initialization.

The image on the right shows the mask associated with the lighthouse. For the sake of this blog post/example I manually created this mask in Photoshop; however any algorithm capable of producing a mask could be used here (ex., basic image processing via thresholding, edge detection, contours; deep learning-based segmentation; etc.) Notice how the mask/segmentation isn’t very “clean” — we can easily see the blue sky of the background “leaking” into our mask.

From there, we can visualize our definite and probable masks for the background and foreground, respectively:

For reference, the left displays our input image.

The right shows our output mask generated by GrabCut, while the bottom displays the output of applying the mask created by GrabCut to the original input image.

Notice that we have cleaned up our segmentation — the blue background from the sky has been removed, while the lighthouse is left as the foreground.

The only problem is that the area where the actual spotlight sits in the lighthouse has been marked as background:

The problem here is that the area where the light sits in the lighthouse is more-or-less transparent, causing the blue sky background to shine through, thereby causing GrabCut to mark this area as background.

You could fix this problem by updating your mask to use the definite background (i.e., cv.GC_BGD) when loading your mask from disk. I will leave this as an exercise to you, the reader, to implement.

Why GrabCut is good, but not perfect

GrabCut is one of my favorite computer vision algorithms ever invented, but it’s not perfect.

Furthermore, deep learning-based segmentation networks such as Faster R-CNN and U-Net can automatically generate masks that can segment objects (foreground) from their backgrounds — does that mean that GrabCut is irrelevant in the age of deep learning?

Actually, far from it.

While Faster R-CNN and U-Net are super powerful methods, they can result in masks that are a bit messy. We can use GrabCut to help clean up these masks. I’ll be showing you how to do exactly that in a future blog post.

Summary

In this tutorial, you learned how to use OpenCV and the GrabCut algorithm to perform foreground segmentation and extraction.

The GrabCut algorithm is implemented in OpenCV via the cv2.grabCut function and can be initialized via either:

1. A bounding box that specifies the location of the object you want to segment in the input image
2. A mask that approximates the pixel-wise location of the object in the image

The GrabCut algorithm takes the bounding box/mask and then iteratively approximates the foreground and background.

While deep learning-based image segmentation networks (ex., Mask R-CNN and U-Net) tend to be more powerful in actually detecting and approximating the mask of objects in an image, we know that these masks can be less than perfect — we can actually use GrabCut to clean up “messy” masks returned by these segmentation networks!

In a future tutorial, I’ll show you how to do exactly that.

To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), simply enter your email address in the form below!
