Solving Ordinary Least Squares Using QR Decomposition

---

---

Solving Ordinary Least Squares Using QR Decomposition

In this tutorial, you will learn how to solve ordinary least squares regression using QR decomposition.

Ordinary Least Squares (OLS) is a fundamental method in statistics and machine learning for estimating the unknown parameters in a linear regression model. It provides the best linear unbiased estimator (BLUE) by minimizing the sum of the squared differences between the observed and predicted values. However, as datasets grow in size and complexity, ensuring numerical stability and efficiency in computations becomes paramount.

This is where QR Decomposition, a matrix factorization technique, comes into play. QR Decomposition allows us to transform the original problem into a more manageable form by decomposing the matrix of predictors into an orthogonal matrix and an upper triangular matrix . This transformation not only enhances computational efficiency but also improves the numerical stability of the solution.

In this blog post, we will explore the theory behind QR Decomposition and its application in solving the OLS regression problem. Through detailed explanations and practical examples, you will gain a deeper understanding of how QR Decomposition can be leveraged to make linear regression more robust and efficient.

This lesson is the last in a 3-part series on Matrix Factorization:

1. Solving System of Linear Equations with LU Decomposition
2. Diagonalize Matrix for Data Compression with Singular Value Decomposition
3. Solving Ordinary Least Squares Using QR Decomposition (this tutorial)

To learn how to solve ordinary least squares regression using QR decomposition, just keep reading.

---

Overview of Ordinary Least Squares

Ordinary Least Squares (OLS) is one of the popular and widely adopted methods of estimating the unknown parameters in a linear regression model. Linear regression aims to model the relationship between a dependent variable and one or more independent variables by fitting a linear equation to observed data.

The OLS method achieves this by minimizing the sum of the squared differences between the observed values and the values predicted by the linear model, hence the name “least squares.”

---

The Linear Regression Model

The linear regression model (Figure 1) can be expressed as follows:

where:

• : the vector of observed values (dependent variable).
• : the matrix of observed values of the independent variables (also called the design matrix).
• : the vector of unknown parameters to be estimated.
• : the vector of errors or residuals.

The goal of OLS is to find the parameter vector that minimizes the residual sum of squares (RSS), which is defined as follows:

where represents the predicted values.

---

Solving the Ordinary Least Squares Problem

To solve for , we set up the normal equations derived from simplifying the RSS minimization:

The solution to these equations gives us the OLS estimator for :

Directly computing the OLS estimator can be challenging due to numerical instability, computational complexity, and significant memory usage, especially for large or ill-conditioned matrices.

QR decomposition addresses these issues by decomposing into an orthogonal matrix and an upper triangular matrix , enabling more stable and efficient computations. Instead of directly inverting , QR decomposition transforms the problem into solving a simpler upper triangular system using back substitution (similar to an LU decomposition), thereby enhancing both numerical stability and computational efficiency.

---

What Is QR Decomposition?

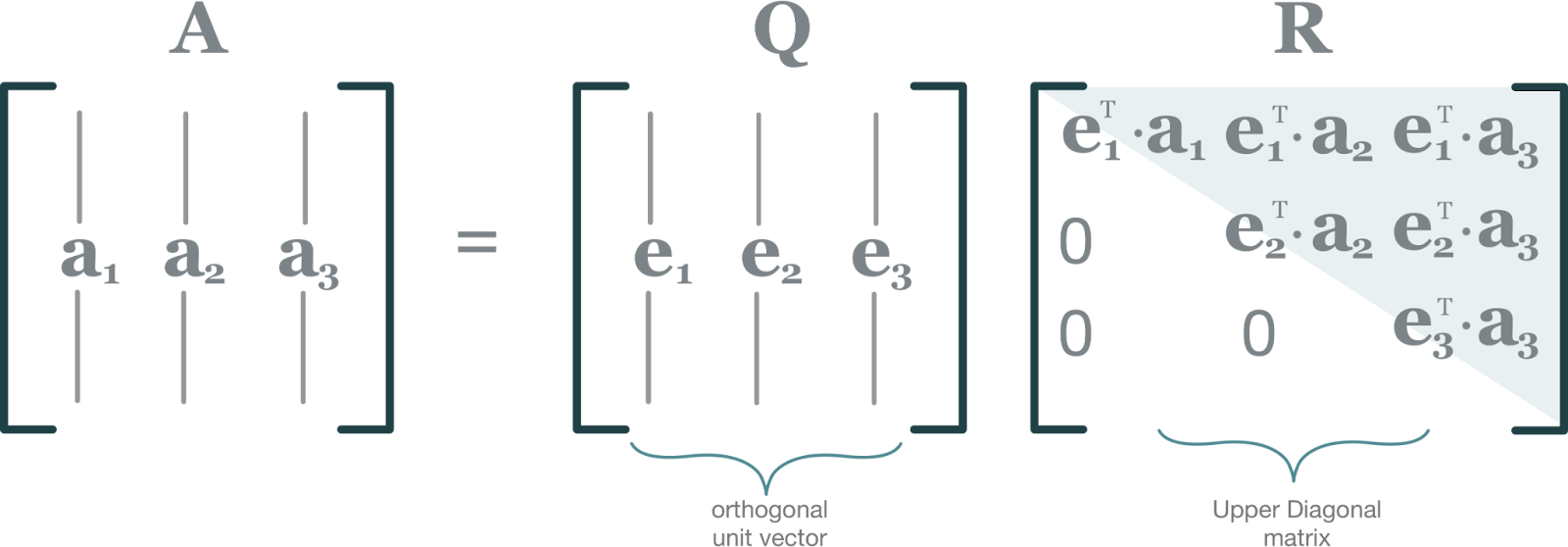

QR decomposition (Figure 2) is a mathematical method used to factorize a matrix into two distinct matrices, and , each with unique properties that make solving systems of linear equations more efficient and stable. This decomposition transforms a given matrix into the product of an orthogonal matrix and an upper triangular matrix , such that

---

Orthogonal Matrix Q

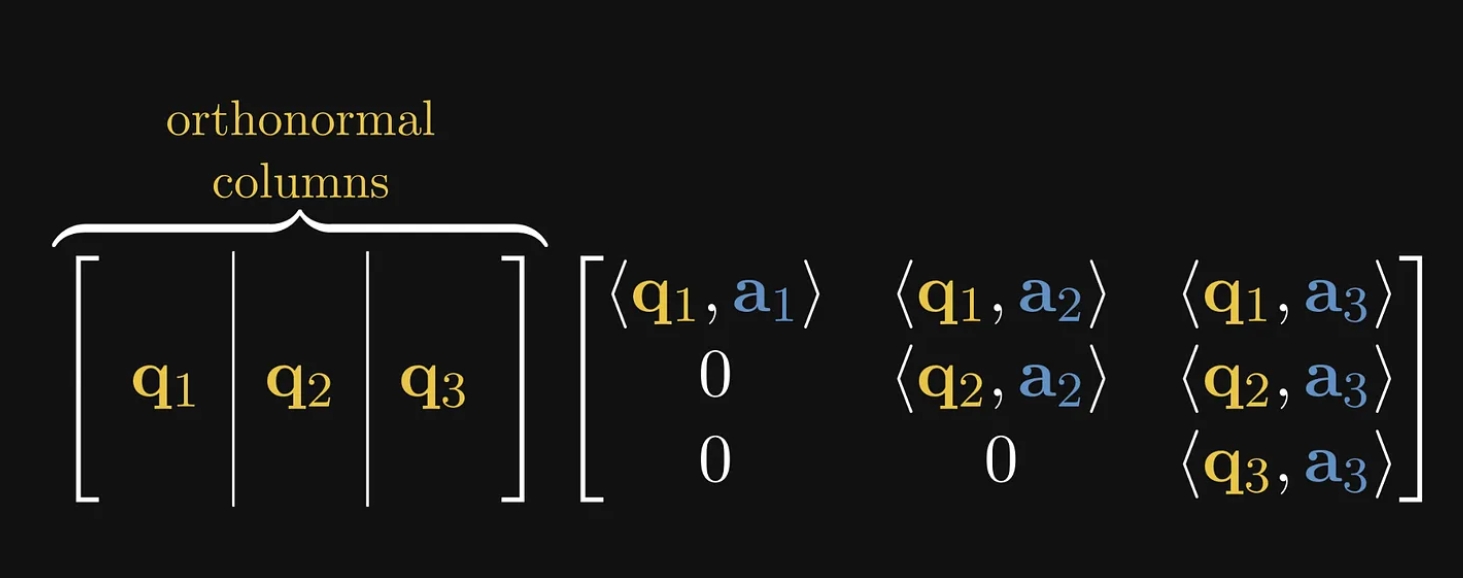

An orthogonal matrix (Figure 3) is a square matrix whose columns (or rows) are orthonormal vectors. This means that the dot product of any two distinct columns (or rows) of is 0, and the norm of each column (or row) is 1.

Mathematically, a matrix is orthogonal if:

where is the transpose of , and is the identity matrix. The orthogonality property of ensures numerical stability and simplifies computations involving matrix inversion.

---

Upper Triangular Matrix R

The matrix is an upper triangular matrix, meaning that all the elements below the main diagonal are zero. The elements on and above the main diagonal can be non-zero. This triangular structure of makes it straightforward to solve systems of linear equations using back substitution (recall Lesson 1, where we saw how upper triangular matrices can help solve linear equations using back substitution).

---

Gram-Schmidt Process for QR Factorization

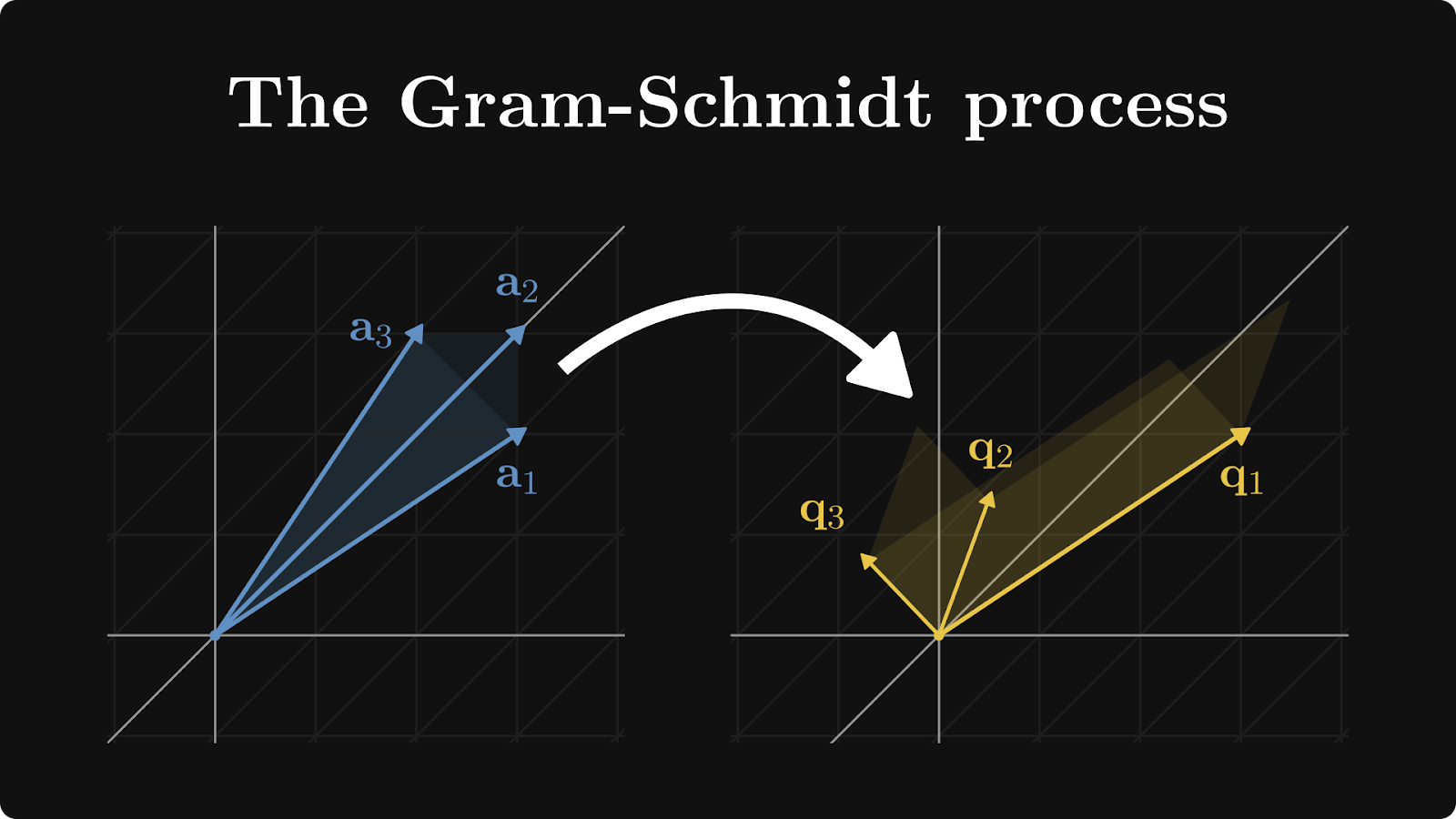

The Gram-Schmidt algorithm (Figure 4) is a method for obtaining the QR factorization of a matrix by orthogonalizing its columns. Here’s how it works:

---

Gram-Schmidt Algorithm

Given a matrix with columns , the goal is to decompose into an orthogonal matrix and an upper triangular matrix .

---

Initialization

The first step is to start with the first column of , . Set

where is the Euclidean norm of . This ensures , which is the first column of our matrix, is a unit vector — as per the definition.

---

Orthogonalization

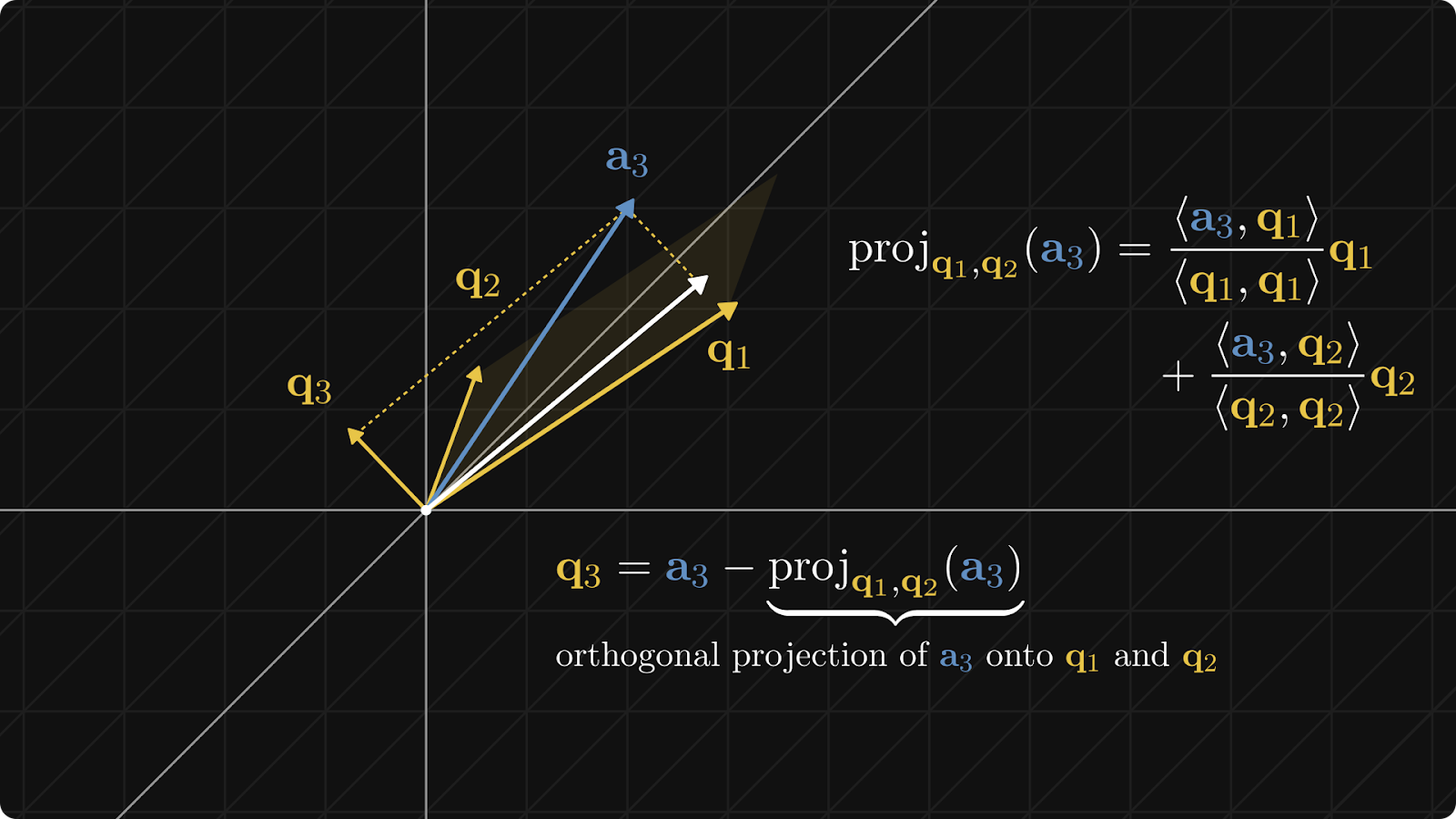

This step (Figure 5) involves transforming each subsequent column (where ) such that they are orthonormal to all previously transformed columns (where ):

First, we compute the projection of onto each of the previously computed orthonormal vectors for . The projection is given by:

.

Subtract these projections from to obtain the orthogonal component :

Normalize to obtain the next orthonormal vector :

---

Forming Matrices

Now that we have computed all orthonormal vectors , we can begin by forming matrices and

• The orthonormal vectors form the columns of matrix .
• The coefficients used in the projections form the elements of the upper triangular matrix . Specifically, is constructed such that:

for ,

and for .

Thus, we obtain the QR decomposition (Figure 6) , where:

is an upper triangular matrix with entries for

---

Implementing the Gram-Schmidt Algorithm in Python

The code snippet below implements the Gram-Schmidt algorithm to perform the QR decomposition of a matrix. The code uses the NumPy library, which can be installed in your Python environment via pip install numpy.

import numpy as np

def gram_schmidt(A):
    """Perform QR factorization using the Gram-Schmidt process."""
    m, n = A.shape
    Q = np.zeros((m, n))
    R = np.zeros((n, n))

    for j in range(n):
        v = A[:, j]
        # Orthogonalization
        for i in range(j):
            R[i, j] = np.dot(Q[:, i], A[:, j])
            v = v - R[i, j] * Q[:, i]

        # Forming Q and R matrices
        R[j, j] = np.linalg.norm(v)
        Q[:, j] = v / R[j, j]

    return Q, R

# Example usage
A = np.array([[1, 2, 4], [3, 4, 7], [5, 6, 8]])
Q, R = gram_schmidt(A)

print("Matrix A:")
print(A)
print("\nMatrix Q:")
print(Q)
print("\nMatrix R:")
print(R)
print("\nVerifying A = QR:")
print(Q @ R)

Output:

Matrix A:
[[1 2 4]
 [3 4 7]
 [5 6 8]]

Matrix Q:
[[ 0.16903085  0.89708523 -0.40824829]
 [ 0.50709255  0.27602622  0.81649658]
 [ 0.84515425 -0.34503278 -0.40824829]]

Matrix R:
[[ 5.91607978  7.43735744 10.98700531]
 [ 0.          0.82807867  2.76026224]
 [ 0.          0.          0.81649658]]

Verifying A = QR:
[[1. 2. 4.]
 [3. 4. 7.]
 [5. 6. 8.]]

In this Python code, we start by importing numpy for matrix operations (Line 1). In the gram_schmidt function, we initialize zero matrices Q and R to store the orthogonal and upper triangular components (Lines 5-7).

We loop over each column of A, orthogonalize it by subtracting its projections on the previously computed orthonormal vectors, and store the coefficients in R (Lines 9-14). We then normalize the resulting vector to form the next orthonormal vector and store it in R and Q (Lines 17 and 18).

Finally, we return Q and R (Line 20). The example usage demonstrates how we can factorize a sample matrix and verify (Lines 23-33).

---

QR Factorization for Least Squares Regression

---

Transforming the Equations of Ordinary Least Squares Regression

The goal of OLS regression is to estimate the coefficient vector that minimizes the sum of squared residuals. This leads to the normal equations:

To simplify solving the above normal equations, we can leverage QR Factorization to decompose the matrix into two matrices: an orthogonal matrix and an upper triangular matrix . The decomposition is expressed as follows:

where:

• : an orthogonal matrix ()
• : an upper triangular matrix

Using this decomposition, we can rewrite the normal equations as follows:

---

Solving the Transformed Equations

The transformed system is simpler to solve (than the original normal equation ) because is an upper triangular matrix, making it suitable for back substitution. The steps are as follows:

1. Compute : Multiply the transpose of by the vector , yielding a new vector.
2. Back Substitution: Solve the upper triangular system using back substitution. Starting from the last row and moving upward, each variable can be solved sequentially.

---

Solving Ordinary Least Squares Using QR Factorization

In the Python code below, we solve an Ordinary Least Squares (OLS) regression problem using QR decomposition.

def ols_qr(X, y):
    """Solve OLS regression using QR decomposition."""
    # Perform QR decomposition
    Q, R = gram_schmidt(X)

    # Compute Q^T * y
    Qt_y = np.dot(Q.T, y)

    # Solve R * beta = Q^T * y using back substitution
    beta = np.zeros(R.shape[1])
    for i in reversed(range(R.shape[1])):
        beta[i] = (Qt_y[i] - np.dot(R[i, i+1:], beta[i+1:])) / R[i, i]

    return beta

# Example usage
X = np.array([[1, 1], [1, 2], [1, 3], [1, 4]])
y = np.array([6, 5, 7, 10])

beta = ols_qr(X, y)

print("Matrix X:")
print(X)
print("\nVector y:")
print(y)
print("\nEstimated coefficients (beta):")
print(beta)

Output:

Matrix X:
[[1 1]
 [1 2]
 [1 3]
 [1 4]]

Vector y:
[ 6  5  7 10]

Estimated coefficients (beta):
[3.5 1.4]

We start by defining the ols_qr function (Lines 34-47), which takes the design matrix X and the response vector y as inputs. Inside the function, we perform QR decomposition on X using the previously defined gram_schmidt function (Line 37). We then compute using the dot product of the transpose of Q and y (Line 40).

Next, we solve the triangular system using back substitution (Lines 43-45). This involves initializing the vector with zeros and iteratively solving for each coefficient in reverse order, from the last to the first.

In the example usage (Lines 50-60), we define a simple design matrix X and a corresponding response vector y. We call the ols_qr function to compute the OLS regression coefficients .

---

---

Summary

This blog post tutorial provided a comprehensive guide on solving Ordinary Least Squares (OLS) regression using QR Decomposition, an efficient and numerically stable method of matrix factorization. The post explained the underlying principles of OLS, a method widely used in statistics and machine learning for estimating unknown parameters in a linear regression model. By minimizing the sum of squared differences between observed and predicted values, OLS aims to find the best linear unbiased estimators.

The tutorial delved into the mechanics of QR Decomposition, describing how it breaks down the design matrix into an orthogonal matrix and an upper triangular matrix . This decomposition simplifies the linear regression problem, enhancing both computational efficiency and numerical stability. The post provided a step-by-step explanation of the Gram-Schmidt process used in QR factorization, illustrated with clear diagrams and a detailed Python code example.

Through practical examples and theoretical explanations, readers were equipped to implement QR Decomposition in solving the OLS regression, offering a deeper understanding of both the mathematical concepts and their application in real-world scenarios.

The blog concluded with a practical implementation of the QR Decomposition to solve the OLS problem using Python, providing readers with the tools to apply these techniques effectively in their data analysis projects. This tutorial is the final part of a 3-part series on matrix factorization. It is a valuable resource for those looking to enhance their understanding of advanced algebraic techniques in data science.

---
