In this tutorial you will learn the basics of augmented reality with OpenCV.
Augmented reality takes real-world environments and then enhances these environments through computer-generated procedures that perpetually enrich the environment. Typically, this is done using some combination of visual, auditory, and tactile/haptic interactions.
Since PyImageSearch is a computer vision blog, we’ll be primarily focusing on the vision side of augmented reality, and more specifically:
- Taking an input image
- Detecting markers/fiducials
- Seamlessly transforming new images into the scene
This tutorial focuses on the fundamentals of augmented reality with OpenCV. Next week I’ll show you how to perform real-time augmented reality with OpenCV.
To learn how to perform augmented reality with OpenCV, just keep reading.
OpenCV Augmented Reality (AR)
In the first part of this tutorial, we’ll briefly discuss what augmented reality is, including how OpenCV can help facilitate augmented reality.
From there we’ll configure our development environment for augmented reality and then review our directory structure for the project.
We’ll then implement a Python script to perform basic augmented reality with OpenCV.
The tutorial will wrap up with a discussion of our results.
What is augmented reality?
We used to see the world only through our five senses: sight, hearing, smell, taste, and touch.
That’s changing now.
Smartphones are transforming the world, both literally and figuratively, for three of those senses: sight, hearing, and touch. Perhaps one day augmented reality will be able to enhance smell and taste as well.
Augmented reality, as the name suggests, augments the real world around us with computer-generated perceptual information.
Perhaps the biggest augmented reality success story in recent years is the Pokemon Go app (Figure 2).
To play Pokemon Go, users open the app on their smartphone, which then accesses their camera. Players then observe the world through their camera, walking through real-world environments, including city streets, tranquil parks, and crowded bars and restaurants.
The Pokemon Go app places creatures (called Pokemon) inside this virtual world. Players then must capture these Pokemon and collect all of them.
Entire companies have been built surrounding augmented reality and virtual reality applications, including Oculus and MagicLeap.
While augmented reality (as we understand it today) has existed since the late 1980s/early 1990s, it’s still very much in its infancy.
We’ve made incredible strides in a short amount of time — and I believe the best is yet to come (and will likely be coming in the next 10-20 years).
But before we can start building state-of-the-art augmented reality applications, we first need to learn the fundamentals.
In this tutorial you will learn the basics of augmented reality with OpenCV.
Configuring your development environment
In order to learn the basics of augmented reality, you need to have the OpenCV library installed.
Luckily, OpenCV is pip-installable:
$ pip install opencv-contrib-python
If you need help configuring your development environment for OpenCV, I highly recommend that you read my pip install OpenCV guide — it will have you up and running in a matter of minutes.
Having problems configuring your development environment?
All that said, are you:
- Short on time?
- Learning on your employer’s administratively locked system?
- Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
- Ready to run the code right now on your Windows, macOS, or Linux system?
Then join PyImageSearch Plus today!
Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.
And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!
Before we can implement augmented reality with OpenCV, we first need to review our project directory structure.
Start by making sure you use the “Downloads” section of this tutorial to download the source code and example images.
$ tree . --dirsfirst . ├── examples │ ├── input_01.jpg │ ├── input_02.jpg │ └── input_03.jpg ├── sources │ ├── antelope_canyon.jpg │ ├── jp.jpg │ └── squirrel.jpg ├── markers.pdf └── opencv_ar_image.py 2 directories, 7 files
examples directory you will find a number of images containing a Pantone color match card with ArUco markers on it:
Just like we did in our series on ArUco markers, our goal is to detect each of the four ArUco tags, sort them in top-left, top-right, bottom-left, and bottom-right order, and then apply augmented reality by transforming a source image onto the card.
Speaking of source images, we have a total of three source images in our
Once we’ve detected our surface, we’ll use OpenCV to transform each of these source images onto the card, resulting in an output similar to below:
script is the primary script in this tutorial and will take care of constructing our augmented reality output.
If you wish to purchase your own Pantone color correction card, you can do so on Pantone’s official website.
But if you don’t want to purchase one, don’t sweat, you can still follow along with this guide!

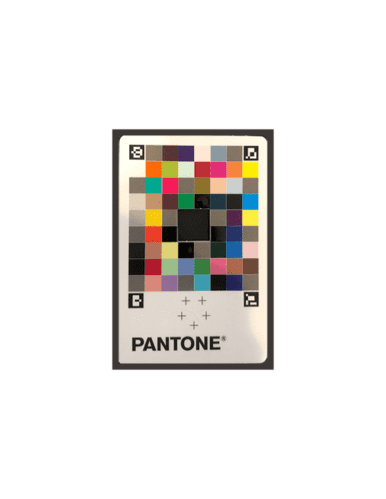

Inside our project directory structure, you’ll see that I’ve included
, which is a scan of my own Pantone color match card:
While it won’t help you perform color matching, you can still use it for the purposes of this example (i.e., detecting ArUco markers on it and then transforming the source image onto the input).
on a piece of paper, cut it out, and then place it in view of your camera. From there you’ll be able to follow along.
With our directory structure reviewed, let’s move on to implementing augmented reality with OpenCV.
Implementing augmented reality with OpenCV
We are now ready to implement augmented reality with OpenCV!
Open up the
file in your project directory structure, and let’s get to work:
# import the necessary packages import numpy as np import argparse import imutils import sys import cv2
Lines 2-6 handle importing our required Python packages. We’ll use NumPy for numerical processing,
argparse for parsing command line arguments, and
imutils for basic image operations (such as resizing).
sys package will allow us to gracefully exit our script (in the event if/when we cannot find the Pantone card in the input image), while
provides our OpenCV bindings.
With our imports taken care of, let’s move on to our command line arguments:
# construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", required=True, help="path to input image containing ArUCo tag") ap.add_argument("-s", "--source", required=True, help="path to input source image that will be put on input") args = vars(ap.parse_args())
We have two command line arguments here:
: The path to the input image on disk, containing the surface we’ll be applying augmented reality to
--source: The path to the source image that will be transformed onto the input image surface, thus creating our augmented reality output
Let’s load both of these images now:
# load the input image from disk, resize it, and grab its spatial # dimensions print("[INFO] loading input image and source image...") image = cv2.imread(args["image"]) image = imutils.resize(image, width=600) (imgH, imgW) = image.shape[:2] # load the source image from disk source = cv2.imread(args["source"])
Lines 19 and 20 load the input
image from disk and resize it to have a width of 600px.
We grab the spatial dimensions (width and height) from the image after the resizing operation on Line 21. We’ll need these dimensions later in this script when we perform a perspective warp.
Line 24 then loads the original
--source image from disk.
With our images loaded from disk, let’s move on to detecting ArUco markers in the input
# load the ArUCo dictionary, grab the ArUCo parameters, and detect # the markers print("[INFO] detecting markers...") arucoDict = cv2.aruco.Dictionary_get(cv2.aruco.DICT_ARUCO_ORIGINAL) arucoParams = cv2.aruco.DetectorParameters_create() (corners, ids, rejected) = cv2.aruco.detectMarkers(image, arucoDict, parameters=arucoParams) # if we have not found four markers in the input image then we cannot # apply our augmented reality technique if len(corners) != 4: print("[INFO] could not find 4 corners...exiting") sys.exit(0)
For reference, our input image looks like the following:
Our goal is to detect the four ArUco markers on the Pantone card. Once we have the card and its ArUco markers, we can take the
image and transform it onto the card surface, thus forming the augmented reality output.
The entire augmented reality process hinges on finding these ArUco markers first. If you haven’t yet, go back and read my previous tutorials on ArUco markers — those guides will help you get up to speed. From here on out I will assume you are comfortable with ArUco markers.
Lines 29-32 proceed to:
- Load our ArUco dictionary (from our previous set of tutorials on ArUco markers we know the Pantone card was generated using the
- Initialize our ArUco detector parameters
- Detect the ArUco markers in the input
In the event that the four ArUco markers were not found, we gracefully exit the script (Lines 36-38). Again, our augmented reality process here depends on all four markers being successfully found.
Provided that our script is still executing, we can safely assume that all four ArUco markers were successfully detected.
From there, we can grab the IDs of the ArUco markers and initialize
, a list to contain the (x, y)-coordinates of the ArUco tag bounding boxes:
# otherwise, we've found the four ArUco markers, so we can continue # by flattening the ArUco IDs list and initializing our list of # reference points print("[INFO] constructing augmented reality visualization...") ids = ids.flatten() refPts =  # loop over the IDs of the ArUco markers in top-left, top-right, # bottom-right, and bottom-left order for i in (923, 1001, 241, 1007): # grab the index of the corner with the current ID and append the # corner (x, y)-coordinates to our list of reference points j = np.squeeze(np.where(ids == i)) corner = np.squeeze(corners[j]) refPts.append(corner)
On Line 49 we loop over our four ArUco marker IDs in the Pantone color image. These IDs were obtained using our ArUco marker detection blog post. If you are using your own ArUco marker IDs, you will need to update this list and insert the IDs.
Line 52 grabs the index,
, of the current ID. This index is then used to extract the
corner and add it to the
refPts list (Lines 53 and 54).
We’re almost ready to perform our perspective warp!
The next step is to unpack our reference point coordinates:
# unpack our ArUco reference points and use the reference points to # define the *destination* transform matrix, making sure the points # are specified in top-left, top-right, bottom-right, and bottom-left # order (refPtTL, refPtTR, refPtBR, refPtBL) = refPts dstMat = [refPtTL, refPtTR, refPtBR, refPtBL] dstMat = np.array(dstMat) # grab the spatial dimensions of the source image and define the # transform matrix for the *source* image in top-left, top-right, # bottom-right, and bottom-left order (srcH, srcW) = source.shape[:2] srcMat = np.array([[0, 0], [srcW, 0], [srcW, srcH], [0, srcH]]) # compute the homography matrix and then warp the source image to the # destination based on the homography (H, _) = cv2.findHomography(srcMat, dstMat) warped = cv2.warpPerspective(source, H, (imgW, imgH))
In order to perform augmented reality with OpenCV, we need to compute a homography matrix that is then used to perform a perspective warp.
However, in order to compute the homography, we need both a source matrix and destination matrix.
Lines 60-62 construct our destination matrix,
. We take special care to ensure the reference points of the ArUco markers are provided in top-left, top-right, bottom-right, and bottom-left order. This is a requirement so take special care to ensure the proper ordering.
Next, we do the same for the source matrix (Lines 67 and 68), but as you can see, the process here is more simple. All we need to do is provide the (x, y)-coordinates of the top-left, top-right, bottom-right, and bottom-left coordinates of the
image, all of which is quite trivial, once you have the width and height of the
The next step is to take the source and destination matrices and use them to compute our homography matrix,
The homography matrix tells OpenCV’s
cv2.warpPerspective function how to take the source image and then warp it such that it can fit into the area provided in the destination matrix. This warping process takes place on Line 73, the output of which can be seen below:

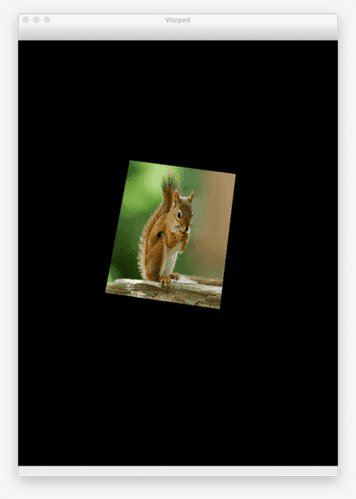

Notice how the input
source has now been warped to the surface of the input image!
Now that we have our
warped image, we need to overlay it on the original input
. We can accomplish this task using some basic image processing operations:
# construct a mask for the source image now that the perspective warp # has taken place (we'll need this mask to copy the source image into # the destination) mask = np.zeros((imgH, imgW), dtype="uint8") cv2.fillConvexPoly(mask, dstMat.astype("int32"), (255, 255, 255), cv2.LINE_AA) # this step is optional, but to give the source image a black border # surrounding it when applied to the source image, you can apply a # dilation operation rect = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) mask = cv2.dilate(mask, rect, iterations=2) # create a three channel version of the mask by stacking it depth-wise, # such that we can copy the warped source image into the input image maskScaled = mask.copy() / 255.0 maskScaled = np.dstack([maskScaled] * 3) # copy the warped source image into the input image by (1) multiplying # the warped image and masked together, (2) multiplying the original # input image with the mask (giving more weight to the input where # there *ARE NOT* masked pixels), and (3) adding the resulting # multiplications together warpedMultiplied = cv2.multiply(warped.astype("float"), maskScaled) imageMultiplied = cv2.multiply(image.astype(float), 1.0 - maskScaled) output = cv2.add(warpedMultiplied, imageMultiplied) output = output.astype("uint8")

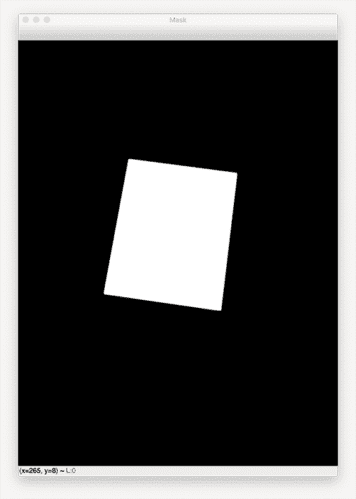

First, we create an empty
mask with the same spatial dimensions as the input image (Line 78). We then fill the polygon area with white, implying that the area we just drew is foreground and the rest is background (Lines 79 and 80).
looks like the following:
Lines 85 and 86 are optional, but I like to dilate the mask, thereby enlarging it slightly. Doing so creates a nice little black border surrounding the area where the
source image will be applied to the input
. Again, it’s optional, but it provides a nice effect.
Next, we take the mask, scale it from the range [0, 255] to [0, 1]. We then stack the mask depth-wise, creating a 3-channel representation of the mask. We perform this operation so we can copy the warped source image into the input image.
All that’s left now is to:
- Multiply the warped image and the masked together (Line 98)
- Multiply the original input image with the mask, giving more weight to the input areas where there are not masked pixels (Line 99)
- Add the resulting multiplications together to form our output augmented reality image (Line 100)
- Convert the
image from a floating point data type to an unsigned 8-bit integer (Line 101)
Finally, we can display the input
output to our screen:
# show the input image, source image, output of our augmented reality cv2.imshow("Input", image) cv2.imshow("Source", source) cv2.imshow("OpenCV AR Output", output) cv2.waitKey(0)
These three images will be displayed to our screen until a window opened by OpenCV is clicked on and a key on your keyboard is pressed.

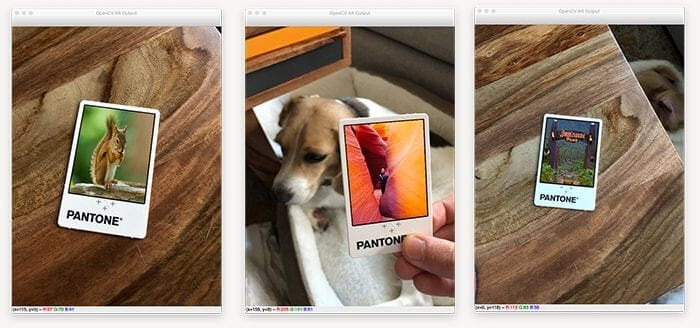

OpenCV augmented reality results
We are now ready to perform augmented reality with OpenCV! Start by using the “Downloads” section of this tutorial to download the source code and example images.
From there, open up a terminal, and execute the following command:
$ python opencv_ar_image.py --image examples/input_01.jpg \ --source sources/squirrel.jpg [INFO] loading input image and source image... [INFO] detecting markers... [INFO] constructing augmented reality visualization...

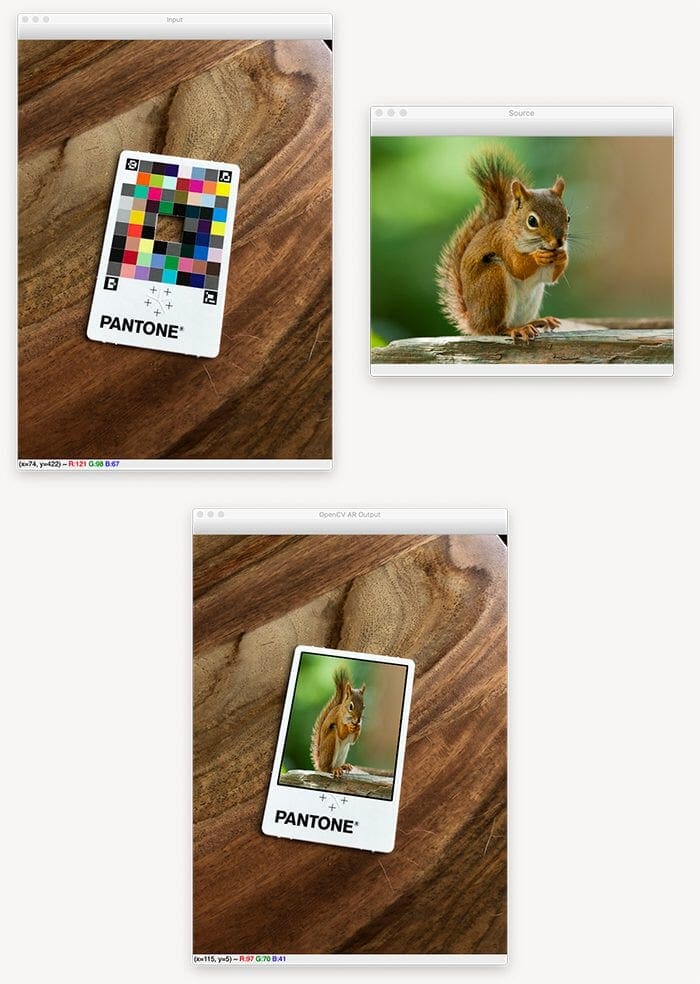

On the right you can see our source image of a squirrel. This source image will be transformed into the scene (via augmented reality) on the left.
The left image contains an input color correction card with ArUco markers (i.e., markers/fiducial tags) that our
opencv_ar_image.py script detects.
Once the markers are found, we apply a transform that warps the source image into the input, thus generating the output (bottom).
Notice how the squirrel image has been transformed onto the color correction card itself, perfectly maintaining the aspect ratio, scale, viewing angle, etc. of the color correction card.
Let’s try another example, this one with difference source and input images:
$ python opencv_ar_image.py --image examples/input_02.jpg \ --source sources/antelope_canyon.jpg [INFO] loading input image and source image... [INFO] detecting markers... [INFO] constructing augmented reality visualization...

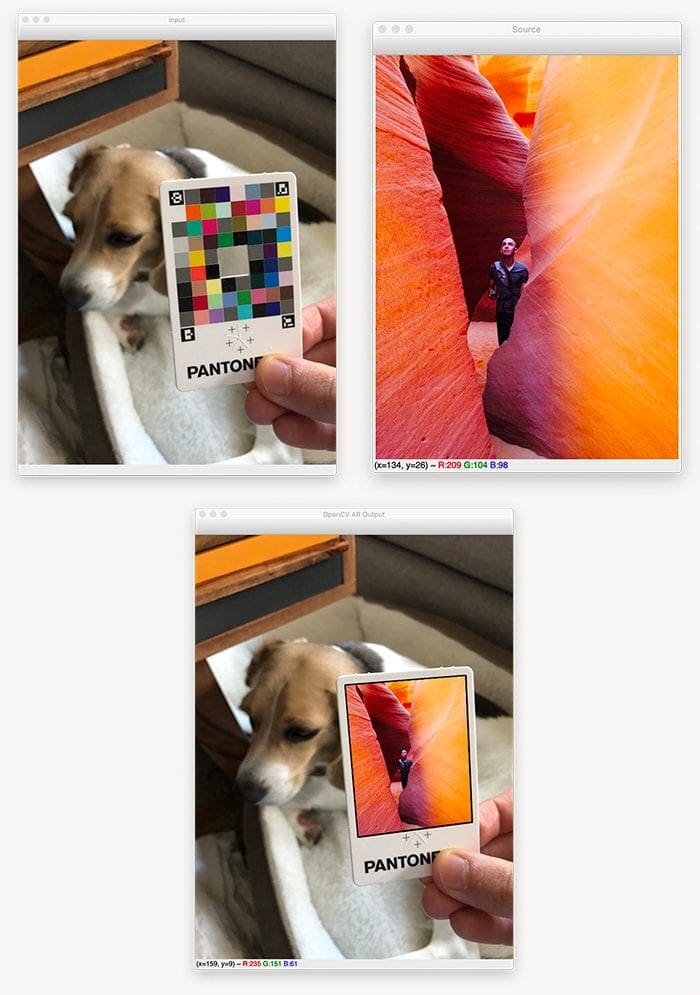

On the right (Figure 12) we have an example image from a few years back of myself exploring Antelope Canyon in Page, AZ.
The image on the left contains our input image, where our input source image will be applied to construct the augmented reality scene.
Our Python script is able to detect the four ArUco tag markers and then apply a transform, thus generating the image on the bottom.
Again, notice how the source image has been perfectly transformed to the input, maintaining the scale, aspect ratio, and most importantly, viewing angle, of the input image.
Let’s look at one final example:
$ python opencv_ar_image.py --image examples/input_03.jpg \ --source sources/jp.jpg [INFO] loading input image and source image... [INFO] detecting markers... [INFO] constructing augmented reality visualization...

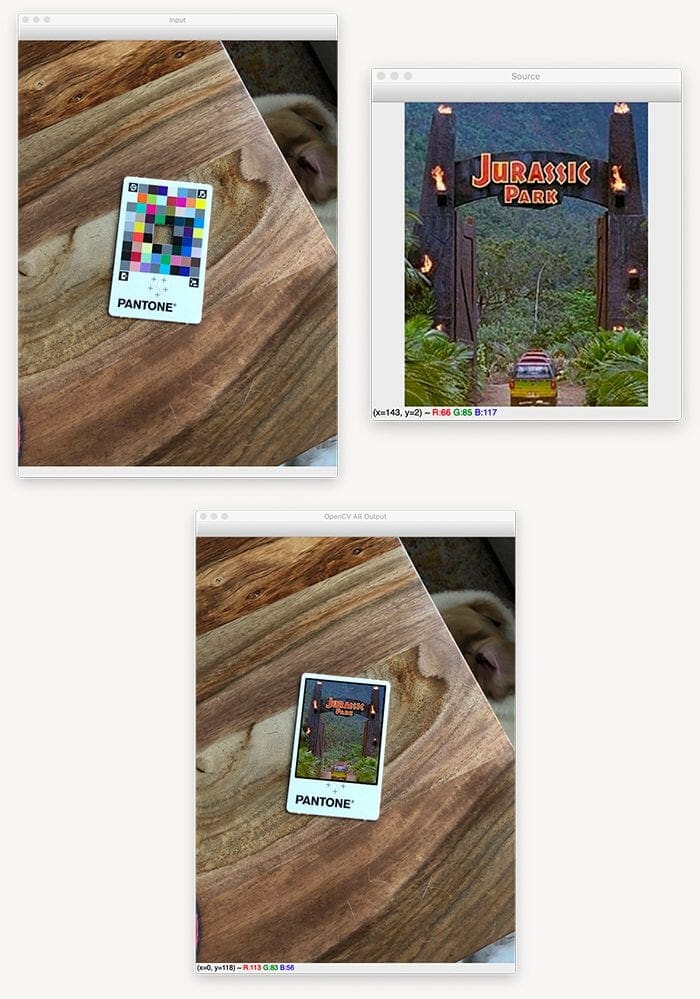

Figure 13 displays our results.
This time we have a source image of my favorite movie, Jurassic Park (right).
We then detect the AprilTag markers in the input image (left) and then apply a transform to construct our augmented reality image (bottom).
Next week you’ll learn how to perform this same technique, only in real time, thus creating a more seamless and thus more interesting and immersive augmented reality experience.
The code used to perform the perspective warp and masking was inspired by Satya Mallick’s implementation at LearnOpenCV. I took their implementation as a reference and then modified it to work for my example images along with providing additional details and commentary within the code and article. Check out Satya’s article if you feel so inclined.
What's next? I recommend PyImageSearch University.
76 total classes • 90 hours of on-demand code walkthrough videos • Last updated: May 2023
★★★★★ 4.84 (128 Ratings) • 16,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 76 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 76 Certificates of Completion
- ✓ 90 hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 500+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
In this tutorial you learned the basics of augmented reality using OpenCV.
However, to construct a true augmented reality experience, we need to create a more immersive environment, one that leverages real-time video streams.
And in fact, that’s exactly what we’ll be covering next week!
