We’re getting closer to finishing up our real-life Pokedex!

In my previous blog post, I showed you how to find a Game Boy screen in an image using Python and OpenCV.

This post will show you how to apply warping transformations to obtain a “birds-eye-view” of the Game Boy screen. From there, we will be able to crop out the actual Pokemon and feed it into our Pokemon identification algorithm.

Looking for the source code to this post?

Jump Right To The Downloads Section

Previous Posts

This post is part of an on-going series of blog posts on how to build a real-life Pokedex using Python, OpenCV, and computer vision and image processing techniques. If this is the first post in the series you are reading, definitely check it out! But after you give it a read, be sure to go back and review the previous posts — there is a TON of awesome computer vision and image processing content in there.

Finally, if you have have any questions, feel free to shoot me an email. I would be happy to chat.

• Step 1: Building a Pokedex in Python: Getting Started (Step 1 of 6)
• Step 2: Building a Pokedex in Python: Scraping the Pokemon Sprites (Step 2 of 6)
• Step 3: Building a Pokedex in Python: Indexing our Sprites using Shape Descriptors (Step 3 of 6)
• Step 4: Building a Pokedex in Python: Finding the Game Boy Screen (Step 4 of 6)

Building a Pokedex in Python: OpenCV Perspective Transform Example

When we wrapped up the previous post on building a Pokedex in Python, we were able to find our Game Boy screen by applying edge detection, finding contours, and then approximating the contours, like this:

However, you may notice that the Game Boy screen is slightly skewed — the screen is definitely leaning to the right.

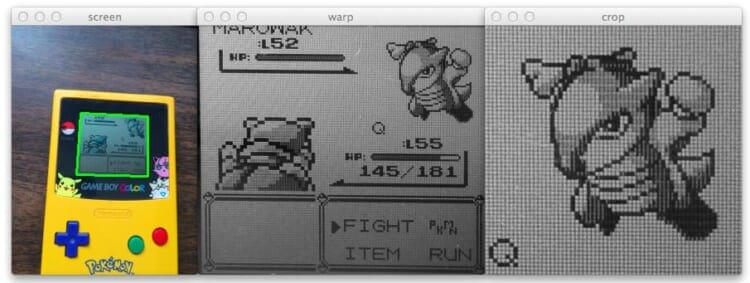

The perspective of the screen is also wrong. Ideally, we would want to have a top-down, birds-eye-view of the Game Boy screen, as in Figure 1.

How are we going to accomplish this?

Let’s jump into some code.

We’ll be building off the code in the previous post, so if it looks like we are jumping into the middle of a file, it’s because we are.

# now that we have our screen contour, we need to determine
# the top-left, top-right, bottom-right, and bottom-left
# points so that we can later warp the image -- we'll start
# by reshaping our contour to be our finals and initializing
# our output rectangle in top-left, top-right, bottom-right,
# and bottom-left order
pts = screenCnt.reshape(4, 2)
rect = np.zeros((4, 2), dtype = "float32")

# the top-left point has the smallest sum whereas the
# bottom-right has the largest sum
s = pts.sum(axis = 1)
rect[0] = pts[np.argmin(s)]
rect[2] = pts[np.argmax(s)]

# compute the difference between the points -- the top-right
# will have the minumum difference and the bottom-left will
# have the maximum difference
diff = np.diff(pts, axis = 1)
rect[1] = pts[np.argmin(diff)]
rect[3] = pts[np.argmax(diff)]

# multiply the rectangle by the original ratio
rect *= ratio

On Line 53 we are are reshaping the contour that corresponds to the outline of the screen. The contour has four points, the four points of the rectangular region of the screen. We are simply reshaping the NumPy array of points to make them easier to work with.

In order to apply a perspective transformation, we need to know the top-left, top-right, bottom-right, and bottom-left corners of the contour. However, just because we have the contour that corresponds to the Game Boy screen, we have no guarantee of the order of the points. There is no guarantee that the top-left point is the first point in the contour list. It might be the second point. Or the fourth point.

To handle this problem we’ll have to impose a strict order on the points. We start on Line 54 by initializing our rectangle of shape (4, 2) to store the ordered points.

Line 58-60 handles grabbing the top-left and bottom-right points. Line 58 handles summing the (x, y) coordinates together by specifying axis=1. The top-left point will have the smallest sum (Line 59), whereas the bottom-right point will have the largest sum (Line 60).

Now we need to grab the top-right and bottom-left points on Line 65-67 by taking the difference between the (x, y) coordinates. The top-right point will have the smallest difference (Line 66), whereas the bottom-left point will have the largest difference (Line 67).

Notice how our points are now stored in an imposed order: top-left, top-right, bottom-right, and bottom-left. Keeping a consistent order is important when we apply our perspective transformation.

If you remember back to the previous post, we resized our image to make image processing and edge detection faster and more accurate. We kept track of this resizing ratio for a good reason — when we crop out of Game Boy screen, we want to crop out the original Game Boy screen, not the smaller, resized one.

In oder to extract the original, large Game Boy screen, we multiply our rect by the ratio, thus transforming the points to the original image size.

Next, we need to calculate the size of the Game Boy screen so that we can allocate memory to store it:

# now that we have our rectangle of points, let's compute
# the width of our new image
(tl, tr, br, bl) = rect
widthA = np.sqrt(((br[0] - bl[0]) ** 2) + ((br[1] - bl[1]) ** 2))
widthB = np.sqrt(((tr[0] - tl[0]) ** 2) + ((tr[1] - tl[1]) ** 2))

# ...and now for the height of our new image
heightA = np.sqrt(((tr[0] - br[0]) ** 2) + ((tr[1] - br[1]) ** 2))
heightB = np.sqrt(((tl[0] - bl[0]) ** 2) + ((tl[1] - bl[1]) ** 2))

# take the maximum of the width and height values to reach
# our final dimensions
maxWidth = max(int(widthA), int(widthB))
maxHeight = max(int(heightA), int(heightB))

# construct our destination points which will be used to
# map the screen to a top-down, "birds eye" view
dst = np.array([
	[0, 0],
	[maxWidth - 1, 0],
	[maxWidth - 1, maxHeight - 1],
	[0, maxHeight - 1]], dtype = "float32")

# calculate the perspective transform matrix and warp
# the perspective to grab the screen
M = cv2.getPerspectiveTransform(rect, dst)
warp = cv2.warpPerspective(orig, M, (maxWidth, maxHeight))

Let’s take this code apart and see what’s going on:

• Line 74: Here we are unpacking our rect and grabbing the top-left, top-right, bottom-right, and bottom-left points, respectively.
• Line 75: In order to determine the width of the image, we compute the distance between the x coordinates of the bottom-right and bottom-left points.
• Line 76: Similarly, we compute the distance between the x coordinates of the top-right and top-left points.
• Lines 79 and 80: Just like we computed the distance between the x coordinate points, we now need to do the same for the y coordinate points.
• Lines 84 and 85: Now that we have our distances, we take the maximum of widthA and widthB to determine the width of our transformed image. We then repeat the process for heightA and heightB to determine the dimensions of the new image.
• Lines 89-93: Remember how I said the order of the points is important? In order to compute the birds-eye-view of the Game Boy screen we need to construct a matrix dst to handle the mapping. The first entry in dst is the origin of the image — the top-left corner. We then specify the top-right, bottom-right, and bottom-left points based on our calculated width and height.
• Line 97: To compute the perspective transformation, we need the actual transformation matrix. This matrix is calculated by making a call to cv2.getPerspective transformation and passing in the coordinates of the Game Boy screen in the original image, followed by the four points we specified for our output image. In return, we are given our transformation matrix M.
• Line 98: Finally, we can apply our transformation by calling the cv2.warpPerspective function. The first parameter is our original image that we want to warp, the second is our transformation matrix M obtained from cv2.getPerspective, and the final parameter is a tuple, used to indicate the width and height of the output image.

If all goes well, we should now have a top-down/birds-eye-view of our Game Boy screen:

But we aren’t done yet!

We still need to crop out the actual Pokemon from the top-right portion of the screen.

Furthermore, you’ll notice that our Marowak seems to be a bit “shadowy” and the screen of the Game Boy itself is darker than we would like it to be. We need to see if we can re-scale the intensity of our image to help mitigate this shadow and make it easier to extract the contour of the Marowak, later allowing us to compute shape features over the Pokemon outline.

# convert the warped image to grayscale and then adjust
# the intensity of the pixels to have minimum and maximum
# values of 0 and 255, respectively
warp = cv2.cvtColor(warp, cv2.COLOR_BGR2GRAY)
warp = exposure.rescale_intensity(warp, out_range = (0, 255))

# the pokemon we want to identify will be in the top-right
# corner of the warped image -- let's crop this region out
(h, w) = warp.shape
(dX, dY) = (int(w * 0.4), int(h * 0.45))
crop = warp[10:dY, w - dX:w - 10]

# save the cropped image to file
cv2.imwrite("cropped.png", crop)

# show our images
cv2.imshow("image", image)
cv2.imshow("edge", edged)
cv2.imshow("warp", imutils.resize(warp, height = 300))
cv2.imshow("crop", imutils.resize(crop, height = 300))
cv2.waitKey(0)

The first thing we’ll do is convert our warped image to grayscale on Line 103. Then, we make use of the skimage Python library. We make a call to the rescale_intensity method in the exposure sub-package. This method takes our warped image and then re-scales the gray pixel intensities by finding the minimum and maximum values. The minimum value then becomes black (a value of 0) and the maximum value then becomes white (a value of 255). All pixels that fall into that range are scaled accordingly.

The output of this re-scaling can be seen below:

Notice how that shadow region is much less apparent.

From here, all we need is some simple cropping.

We grab the height and width of the warped Game Boy screen on Line 108 and then determine a region that is 40% of the width and 45% of the height on Line 109 — the Pokemon that we want to identify will lie within this region of the image:

Note: I determined these percentages empirically by trial and error. There is no fancy computer vision magic going on. Just your standard testing and debugging to find the correct percentages.

We crop the Pokemon from the Game Boy screen on Line 110 and write it to file on Line 113. In the next (and final) blog post in this series we’ll use this cropped image to perform the actual identification of the Pokemon.

Finally, Lines 116-120 just show us the results of our labor:

To execute our script to the Pokemon in the Game Boy screen, simply execute the following command:

$ python find_screen.py --query queries/query_marowak.jpg
